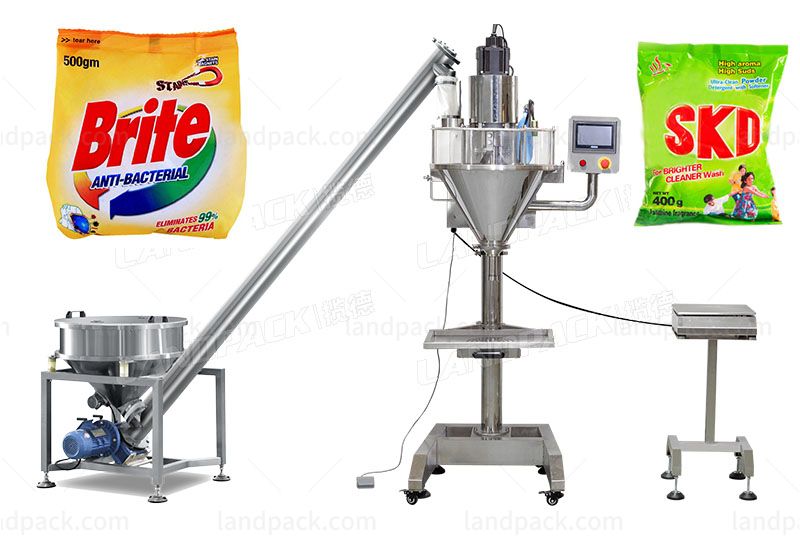

Semi automatic powder screw quantitative filling machine(LF-QPJ-03), It is can automatically complete measuring, filling and other tasks. Suitable for packaging those powders and fine particles that are easy to flow or have poor flowability, such as coffee powder, milk powder, protein powder, yeast, white sugar, solid beverages, veterinary drugs, pesticides, washing powder, etc.
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Suitable for all kinds of bottles, cans, bags of quantitative filling packaging container is not restricted.
Filling motor is servo motor.
Stirring motor imported from Taiwan, free-noise motor.
Photoelectric sensor induction signal filling material, can also optional foot switch signal.
Feedback value can be adjustable, to meet a variety of precision required.
The filling motor speed can be adjustable, to meet the requirements of various materials.
All stainless steel, match with feeder enables automatic materials level control.
|Measurement method||weighing feedback tracking spiral rotating filling type|
|Package weight||1-5000 grams (change screw attachment) 100-300 grams partial <+1%|
|Filling speed||10-25 times/min|
|Power supply||three-phase 380V50-60Hz (220V can be customized)|
|Whole machine power||3.8KW|
|Whole machine weight||130 kg|
|Material box volume||30L 50L|
After receiving your inquiry,We will send you the quotation as soon as possible.
