Grain Packaging Machine With Measuring Cups Equipment LD-320A/380A

  • Application
  • Description
  • Parameter
  • Video

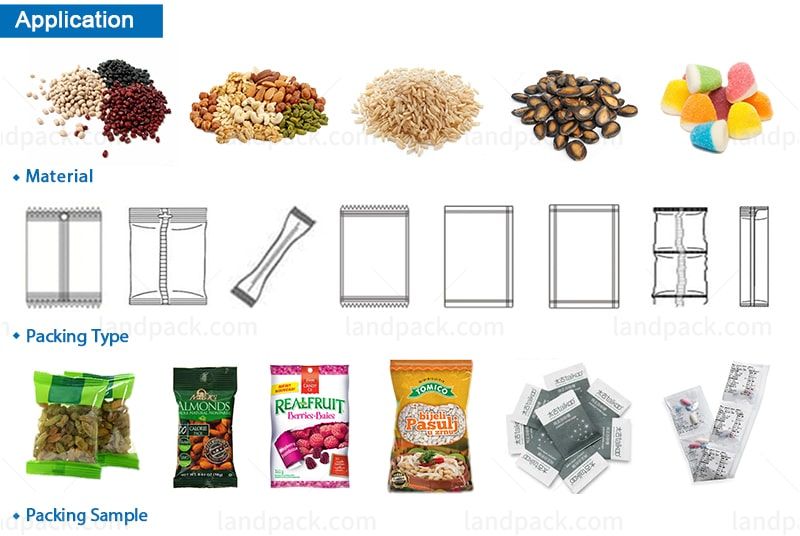

Suitable for packing for all kinds of grain material,sheet material,strip material and abnormity material which such as candy,melon seeds, chips, peanuts, nutlet , preserved fruit, jelly, biscuit, confect, camphorball,currant,almond,chocolate,fibert,cornpet foodstuff,dilatant foodstuff,hardware and plastic can be weighed by theration.

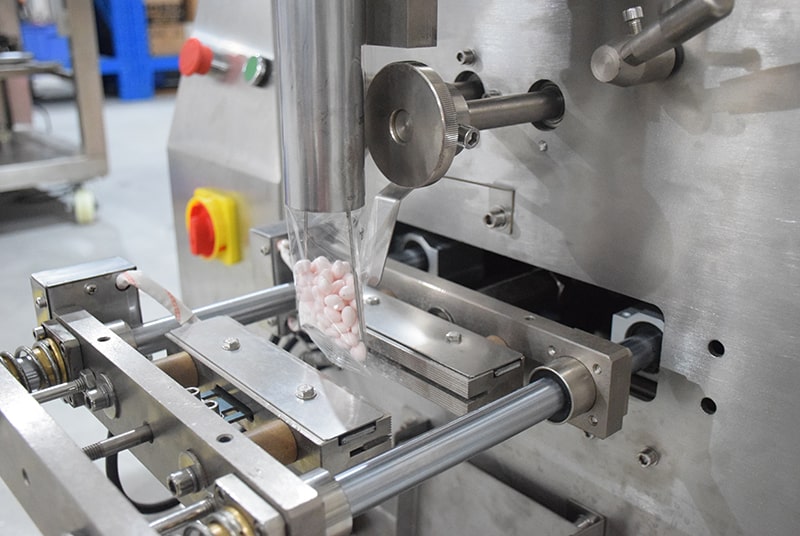

Products dosing, Filling, Laminate heat sealable pouch making and sealing.

Stainless steel 304 structure and surface.

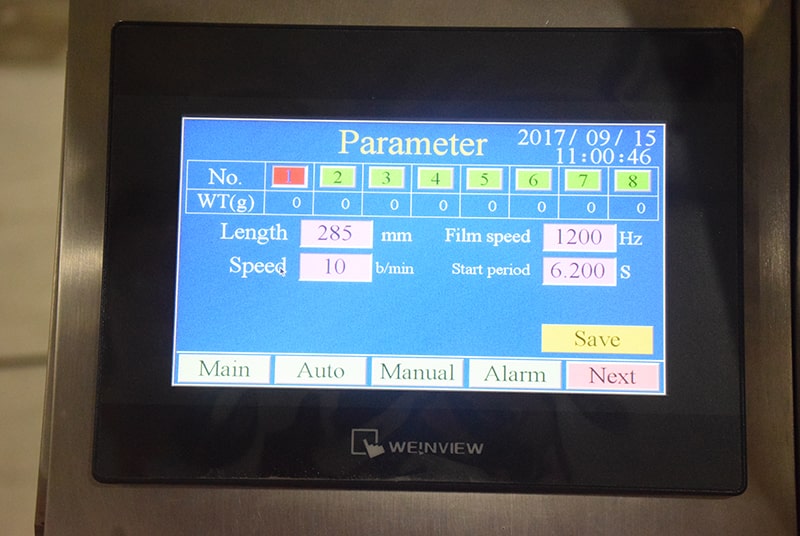

Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting.

Simple changing of pouch former, to adapt different pouch size requirement.

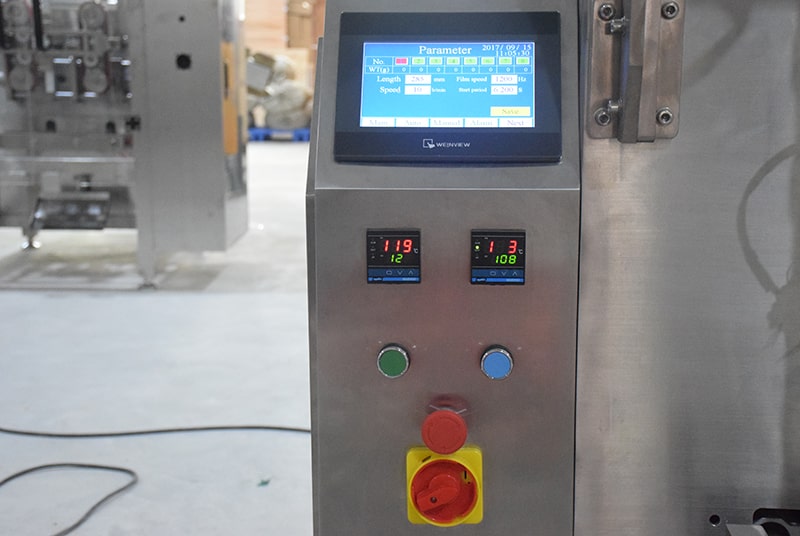

Intelligent temperature controlling configuration, ensure the artistic and neat sealing.

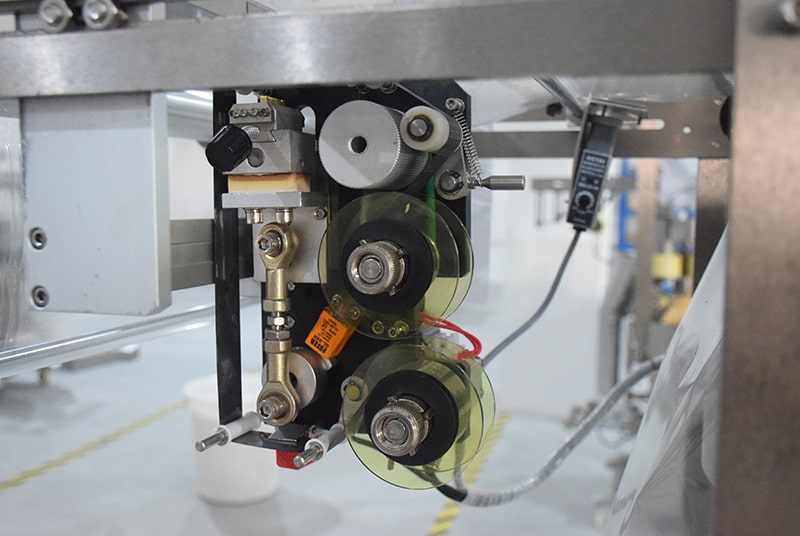

Configure with packaging film pre-pulling device, to enable stable pouch making

Easy to change the packaging film

Model LD-320LD-380
Film width 120-320mm180-380mm
Bag length50-200mm60-280mm
Bag width50-150mm60-180mm
Diameter of film roll Max.300mmMax.320mm
Packing speed35-70bag/min
Measuring range50-500ml50-750ml
Film thickness 0.04-0.07mm
Power220V 50/60Hz 2.2KW220V 50/60Hz 2.5KW
Machine size(L*W*H)970*680*1950mm1100*800*2150mm
Machine weight About 300kgAbout 450kg
