Application:
Suitable for many kinds of liquid products such as chili sauce, chutney, bean paste, instant noodle sauce, ketchup, paste, honey, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
1. Automated Functions: This machine handles measuring, bag making, sealing, cutting, counting, and cartoning, product conveyance automatically.
2. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
3. Hygienic Material Contact: The contact surfaces between the box and material are made of stainless steel, meeting the requirements for pharmaceutical and food production.
4. Mobility and Convenience: Equipped with casters, the machine is easy to handle and move.
5. Efficiency and Material Savings: Automatic alarms prevent material waste, ensuring efficient operation.
| MULTI-LANE STICK PACK SHAMPOO PACKAGING MACHINE | |
Model | LD560BY |
Lane number | 3-12 Lanes |

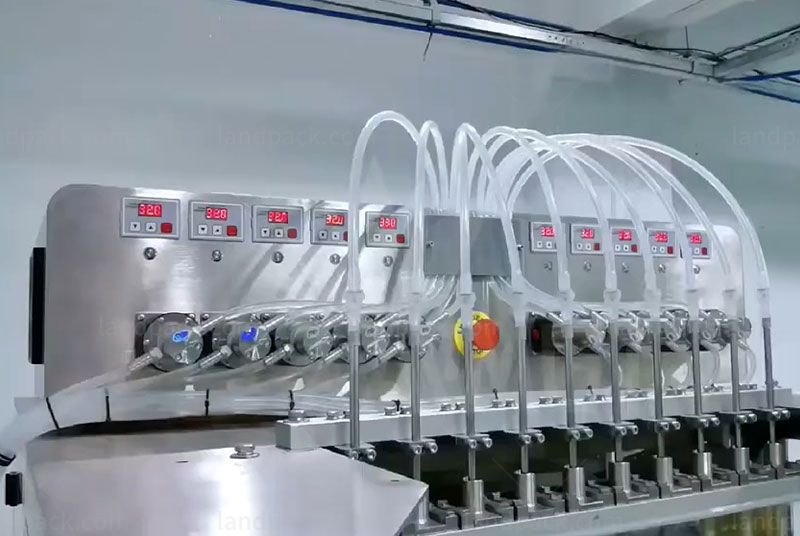

Filling Method | Piston pump; Peristaltic pump; Ceramic pump; Rotary pump |
Capacity | Max.50 cycles/min |
Sachet size | L: 50-180mm; W: 17-90mm |
Film width & Thickness | Max.560mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min,3.5kw |
Dimension & weight | 1385*918*2005mm,350kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa 0.3m³/min;220V 50/60HZ 2.0KW |

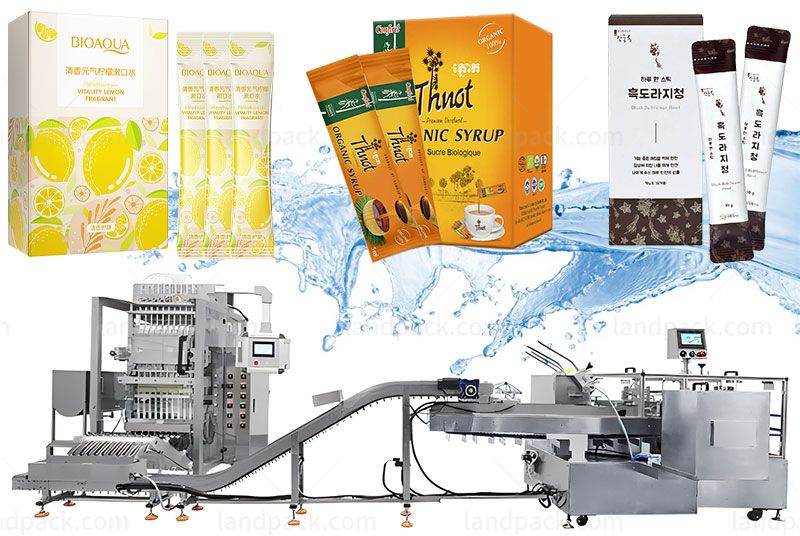

Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
After receiving your inquiry,We will send you the quotation as soon as possible.
