Automatic Liquid Sachet/ Stick Counting Into Pouch Packing System

  • Application
  • Description
  • Parameter
  • Video

Application:

Automatic Liquid Sachet/ Stick Counting Into Pouch Packing System It is suitable for the packaging of various liquid products, such as  ketchup, paste, honey, chili sauce, bean paste, instant noodle sauce, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, jelly, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

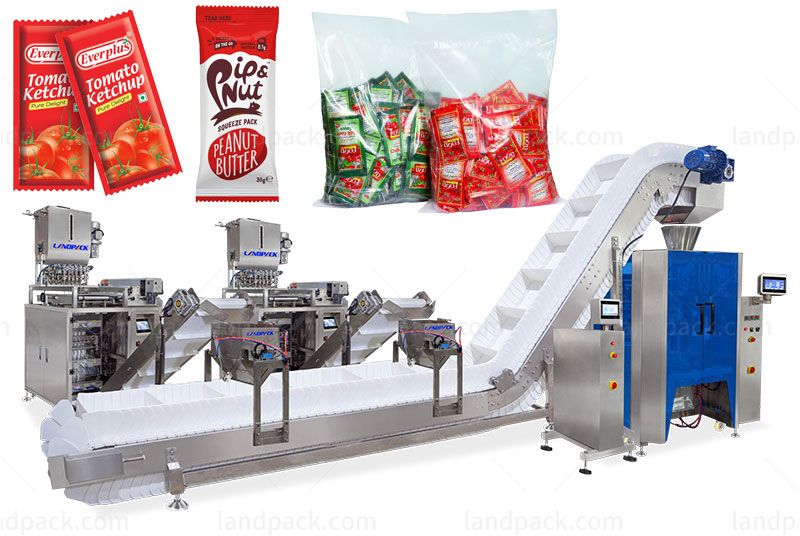

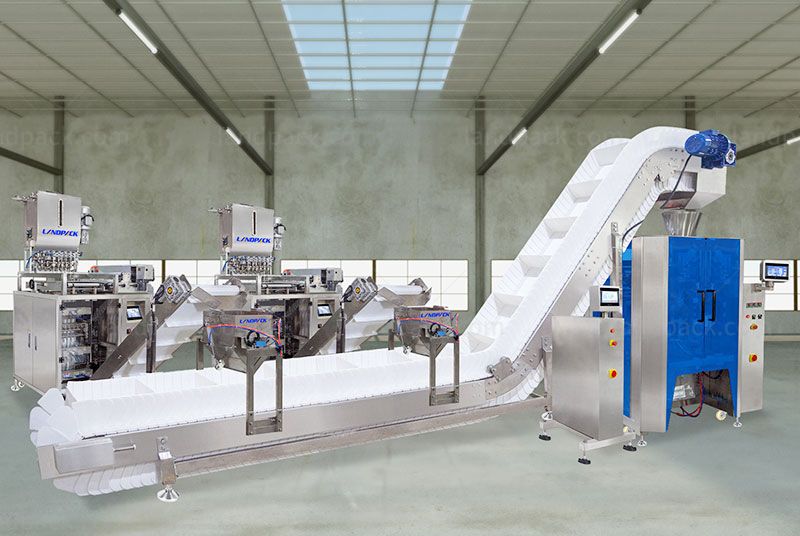

Packing Exambers:    Automatic Liquid Sachet/ Stick Counting Into Pouch Packing System

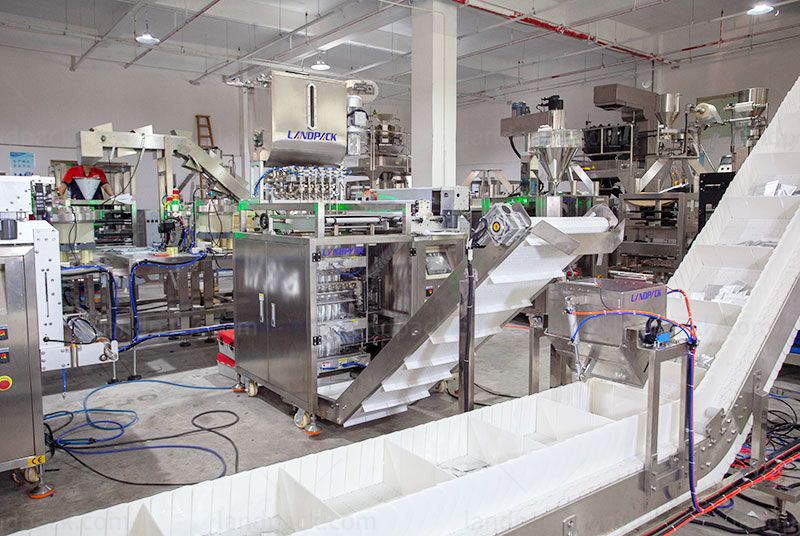

1. 2 sets of liquid multi-channel packaging machines to improve your production and packaging efficiency.

2. The outlet of the conveyor is equipped with a counting sensor and a collection device, which is used to collect the target number of small bags and discharge them into the chain conveyor.

3. The imported counting sensor has high sensitivity to ensure that the target amount of counting is correct.

4. The inclined conveyor is driven by servo motor. No material, no movement.

Multi-Channel Packaging Machines Parameter
ModelLD-480YLD-720YLD-960Y
Track Number4~6 Track4~10 Track4~12 Track
Filling Method1.Piston pump;   2.Peristaltic Pump
CapacityMax.40 cycle/min
Sachet SizeL:45--120mm; W:35-60mmL:45--120mm; W:35-90mmL:45--120mm; W:35-120mm
Film Width & ThicknessMax.480mm;0.07-0.1mmMax.720mm;0.07-0.1mmMax.960mm;0.07-0.1mm
Sealing Type3/4 sides sealing3/4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power0.8 mpa  0.8m³/min; 2.8kw0.8 mpa  0.8m³/min; 4.1kw0.8 mpa  0.8m³/min; 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg

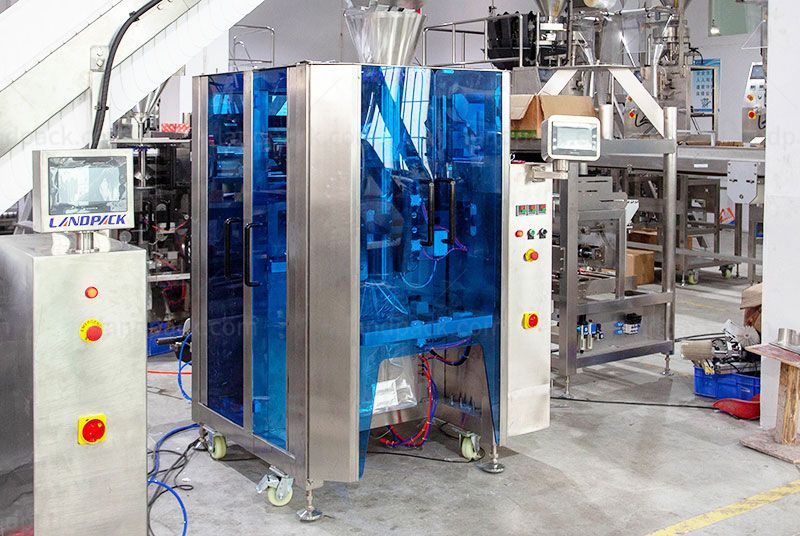

Vertical Form Fill Seal Machine Parameter
ModelLD-420LD-520LD-720
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm
Pakaging Rate5-60bag/min5-60bag/min5-55bag/min
Film WidthMax.420mmMax.520mm150-Max.720mm
Measurement Range150-1500ml5-2000ml4000ml

After receiving your inquiry,We will send you the quotation as soon as possible.
