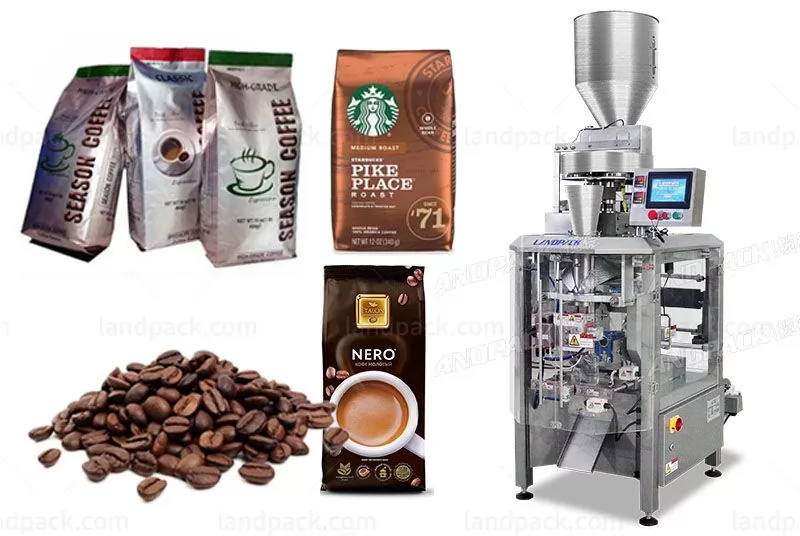

High Speed Coffee Beans Vertical Form Fill Seal Machine

  • Application
  • Description
  • Parameter
  • Video


High speed granule packaging machine with measuring cups equipment (LD-320SF), Ii is suitable for packing for all kinds of grain material, sheet material, strip material and abnormity material. It suitable for coffee bean, candy, melon seeds, chips, peanuts, nutlet , preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, fibert, corn.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:High Speed Coffee Beans Vertical Form Fill Seal Machine

The whole machine adopts 3 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high;

The whole machine adopts 3mm&5mm thick stainless steel sheet metal processing and assembly, running smoothly; and the core components are specially optimized design, and the packaging speed is fast;

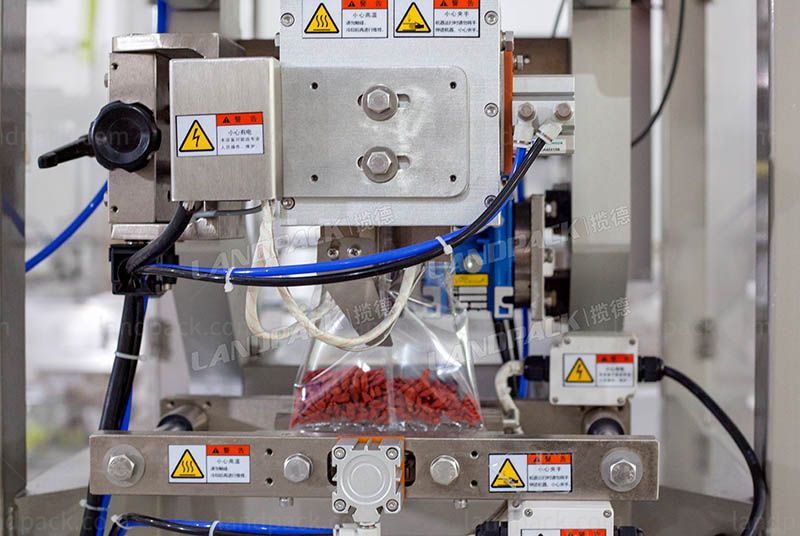

The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling and neat and beautiful packaging bags;

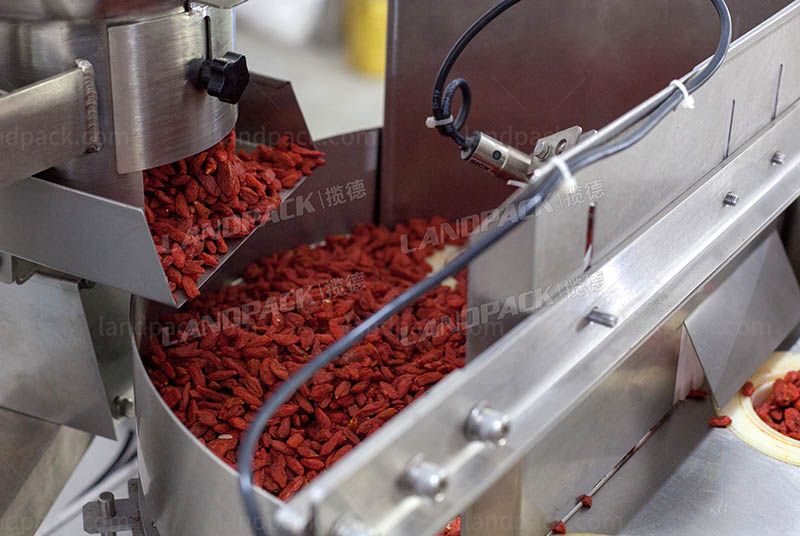

It can be matched with combination weigher, screw, measuring cup, drag bucket, liquid pump to achieve accurate and efficient measurement; (the above functions have been standard in the packaging machine program)

The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable and durable performance;

The design of the whole machine complies with GMP standards and has passed CE certification.

Capacity20-100 bag/min
Bag sizeL:50—170mm, W:50—150mm
Film width120mm—320mm
Film thickness0.05—0.12mm

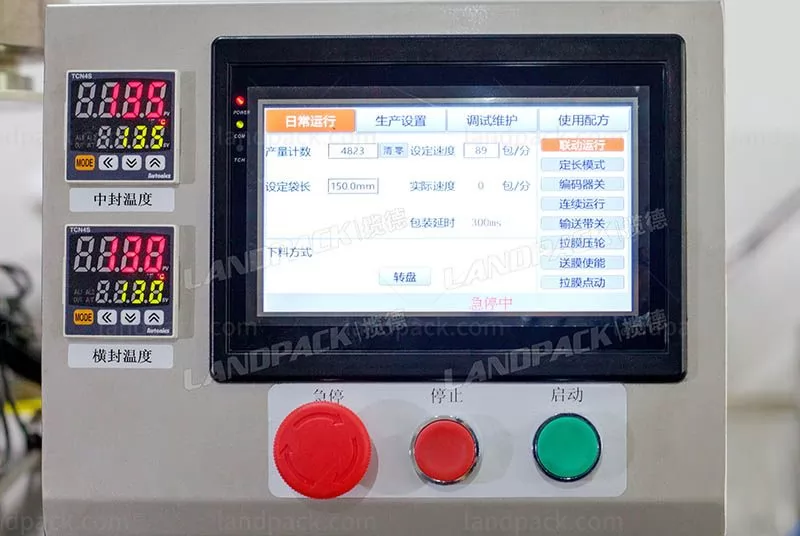

Control systemPLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen
Power supply1N+PE/50HZ/AC220V  4KW
Airconsumption0.6—0.8Mpa, 0.3—0.5㎥/h
Equipment MaterialMain body 3mm thickness 304 stainless steel frame
Description of Main Packaging ProcessPulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output.

After receiving your inquiry,We will send you the quotation as soon as possible.
