Application:
Suitable for various granlue material in premade pouch style, such as coffee beans, beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing examblers:
Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip)

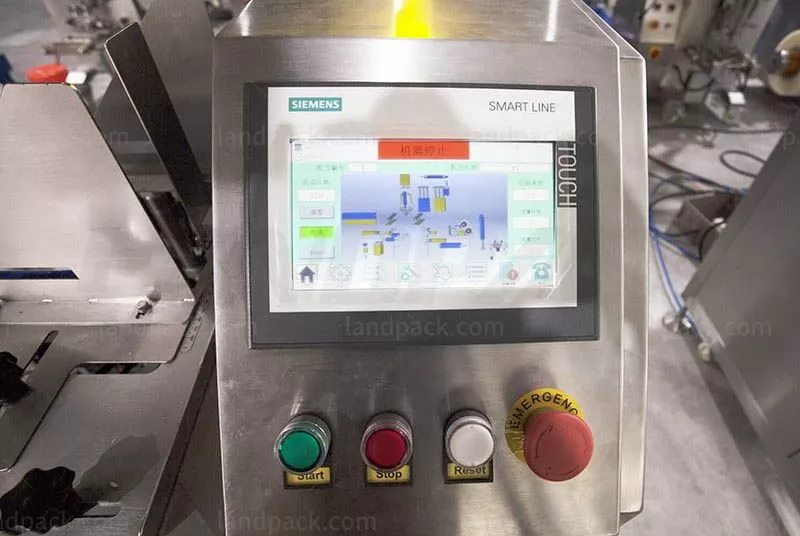

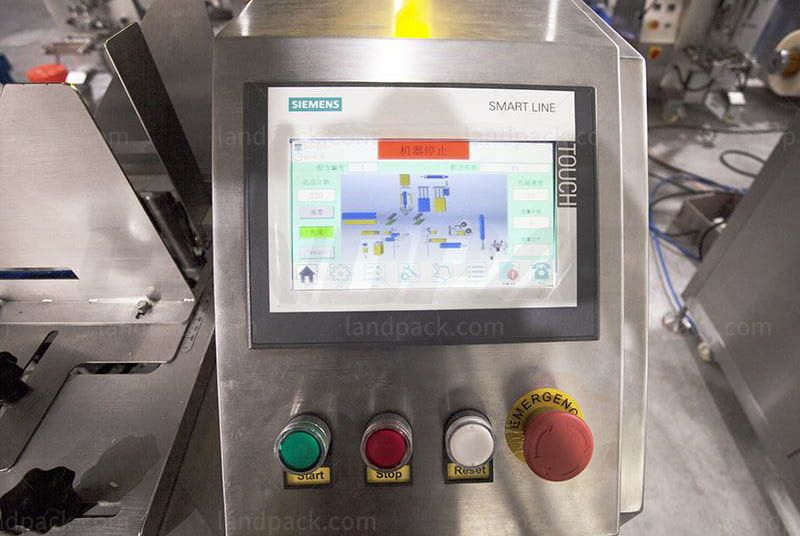

Easy to operate: PLC and color panel, fault indication on the panel.
Easy to adjust: Only about 10 minutes to change different pouches.
Frequency control: Speed can be adjusted by frequency conversion within the range.
Water proof design: The machine surface can be washed down, so easy cleaning and longer useful life.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel.
| Machine Type | LDB-300 |
| Bag Material/Bag Type | Multilayer Composite Premade Bag （e.g.: PET/PE） |
| Upgradable Bag Type | Gusset Bag, Zipper Bag, Flat Bottom Pouch （Need additional purchase of functional device） |
| Size Range | 80mm≤W≤300mm 100mm≤L≤300mm |
| Speed | 0~15bags/min |
| Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) |
| Sealing Width | 10mm（5--20mm can be customized） |
| Voltage | 220V, Single-phase, 50/60HZ, 1.2KW |
| Air Pressure | 0.65Mpa |
| Air Consumption | 0.3m³/min （Standard machine, no additional function） |
| Body Dimension | 1770*600*1230mm |
| Packing Dimension | 1860*710*1550mm （Export non-fumigation wooden case） |
After receiving your inquiry,We will send you the quotation as soon as possible.
