1.This machine is mainly used for filling non-carbonated beverage,including fruit juice, mineral water, pure water, can also be used for hot filling, and it can be used for filling different type of bottles, such as PET bottles ,plastic bottles and glass bottles.

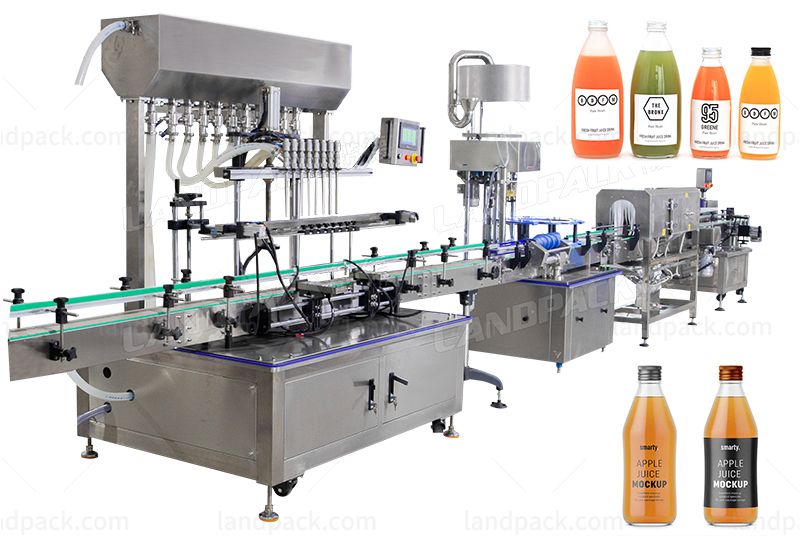

2.The machine is washing, filling, sealing, 3 in 1 monoblock.
3.This machine can handle freely, it is convenient to adjust machine turned to full of the various types of bottles.

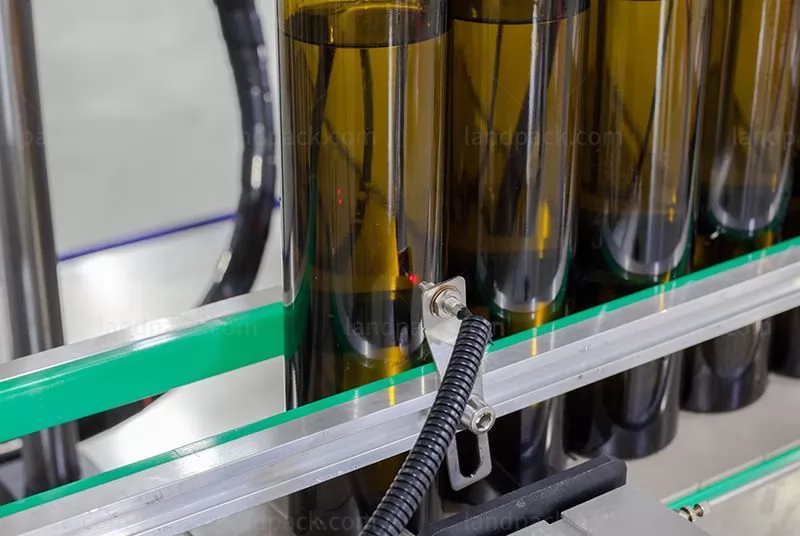

4.Advanced PLC to control the machine adopts automatic operation, touch screen for human-computer interface. Sensors used in the bottle-entering chain adjustment of speed and coordinate with a frequency converter to the main machine forward bottles of operation is stable and reliable.
5.Filling and capping will automatically stop, when there is no bottle
Application:
Glass bottle juice/Liquor/Red Wine washing and filling machine production line processing machine
Packaging Material:
Glass, Metal, Paper, Plastic, Wood, Other
Packaging sample:
Model Name | LD-GZ0888 |
Filling Nozzle | 8 |
Production Capacity | 80-100 / min |
Applicable Filling Material | Cream, Ointment, Water, Juice, Water-Like Liquid, Oil, Paste, etc. ***Note: Different Material May requires different filling Pump, please tell before you order the machine |
Filling Accuracy | 200ml: +/-1%, 200-5000ml: +/-0.5% |
Filling Range | 50-5000ml |
Power Supply (without heating) | 1Kw |
Power Supply | 380v 50hz Three phase |
Air Pressure | 0.6Mpa |
Applicable Bottle Shape | Round, Flat, Oval, Irregular, Square, Jar, Can, etc. |
Bottle Material | HDPE, Aluminum, Plastic, Glass, etc. |
Dimension (mm) | 2200*900*1850 |
Weight | 500kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
