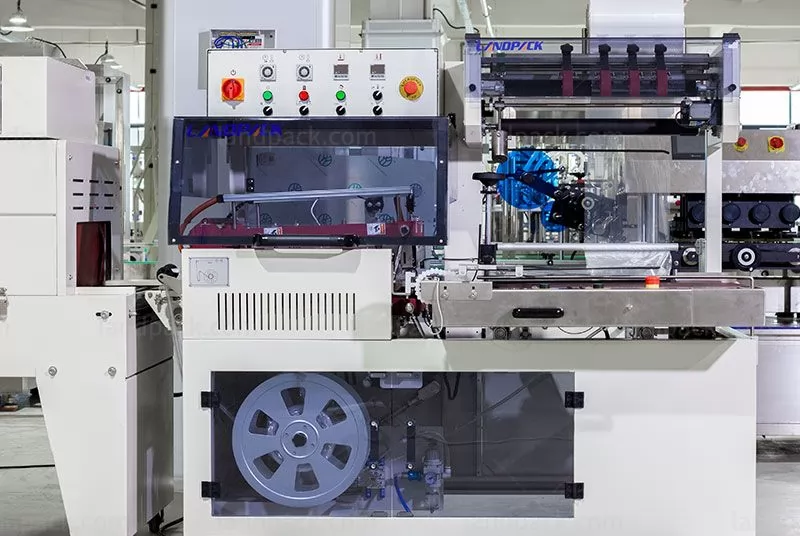

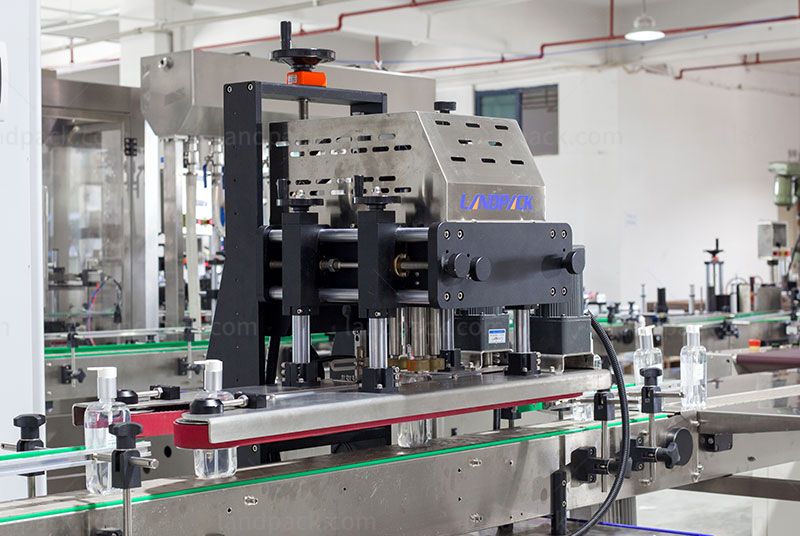

6 Heads Piston Pumps Ketchup Bottle Filling And Capping Machine With Heat Shrink Wrapper

  • Application
  • Description
  • Parameter
  • Video

It is widely used in the filling of various semi-fluids, pastes, viscous bodies, and sauces, such as ketchup, honey, mayonnaise, tomato sauce, pulp-containing beverages, jam, chili sauce, salad dressing, etc.

Packaging Material:
HDPE, Aluminum, Plastic, Glass, etc.

Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Bottle/Jar/Can material
4. Bottle/Jar/Can dimension

Packaging Exambers:tomato ketchup filling machine

1. The body is mainly made of high-quality stainless steel, beautiful appearance is clean and sanitary, and completely meets the food hygiene requirements;

2. It can make the product more simple and convenient in operation, accuracy error value, installation adjustment, equipment cleaning, equipment maintenance, and so on

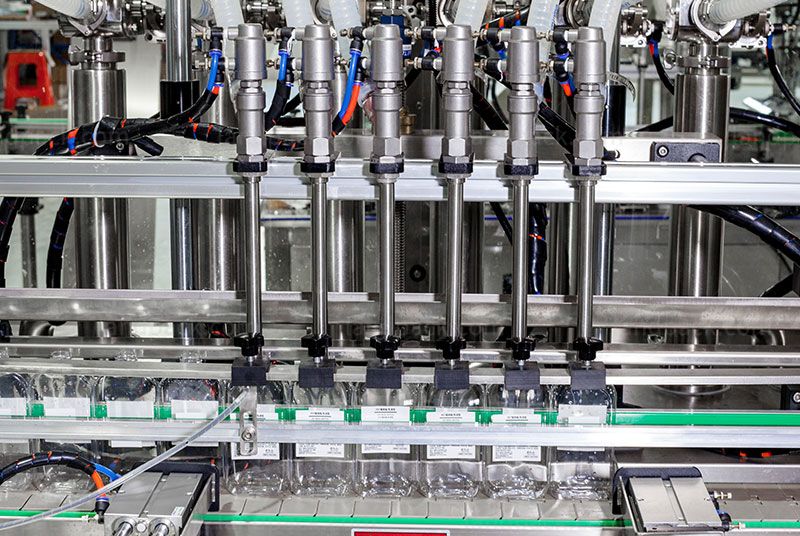

3. With the anti-dripping function that can control each nozzle separately, filling nozzles can be driven by a servo motor and filled from the bottom of the bottle. We have the 2/4/6/8/10 nozzles filling machine, please send us a message if you need it.

4. The quick and flexible connection mode makes disassembly and cleaning more convenient;

5. Servo motor control filling volume and time, filling precision is about ±0.5%

6. The contact with the material is 304 stainless steel, in full compliance with GMP standards.

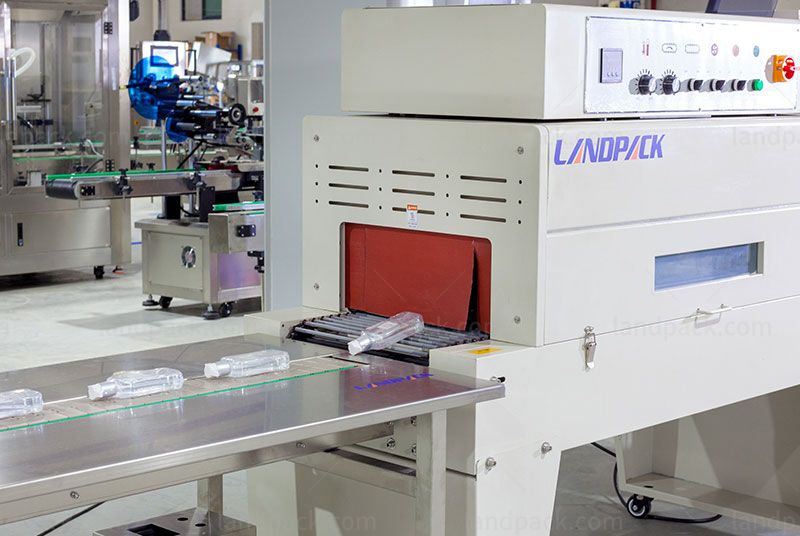

7. The cap sleeve of the bottle is contracted to prevent theft and avoid air entry, which is suitable for preservation;

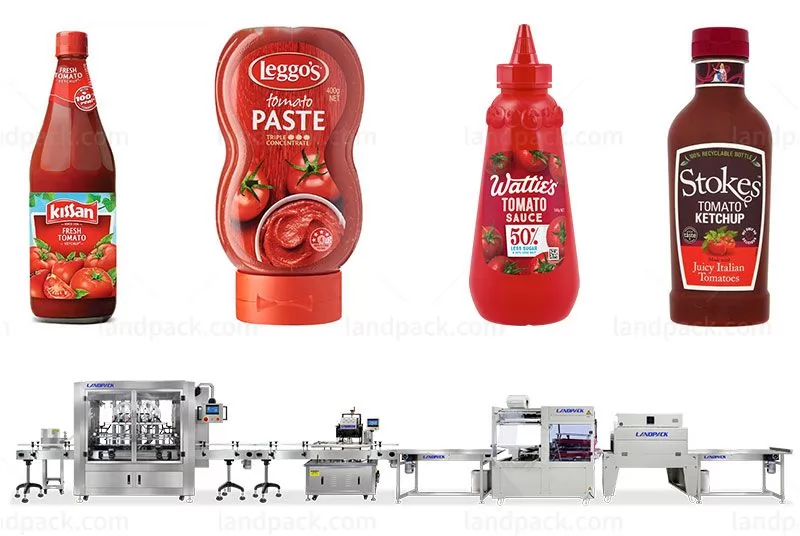

8. Complete set, the whole line is fully automatic, saving labor;

Model Name
Filling Nozzle468


Production Speed 15-25 Bpm20-35 Bpm30-40 Bpm40-50 Bpm
Filling Accuracy200ml: ±1%, 200-5000ml: ±0.5%
Filling Range50-1000ml (customizable)
Power Supply220V, 50Hz
Air consumption0.6-0.8Mpa
Equipment material304
Bottle MaterialHDPE, Aluminum, Plastic, Glass, etc.
Main Machine SizeL4000*W1320*H2090 mm

After receiving your inquiry,We will send you the quotation as soon as possible.
