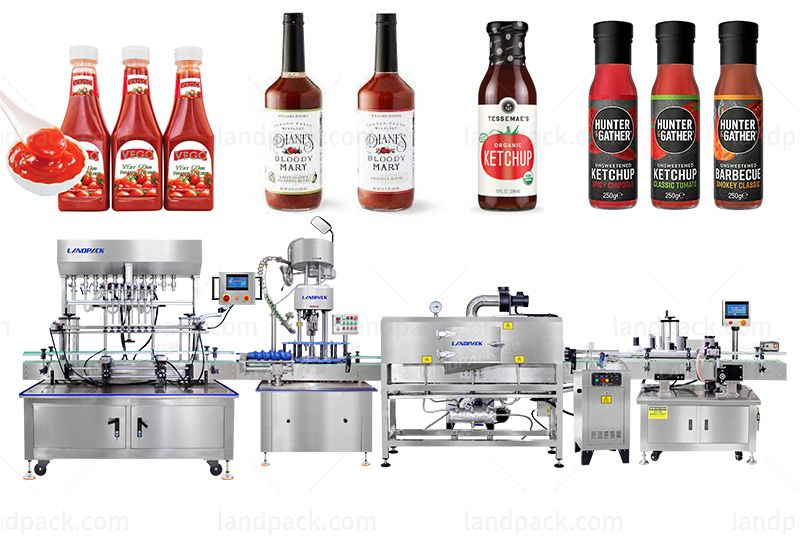

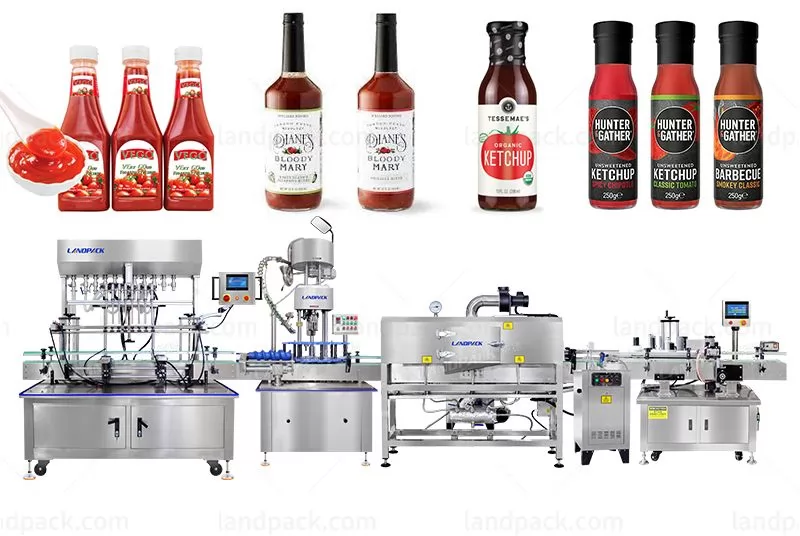

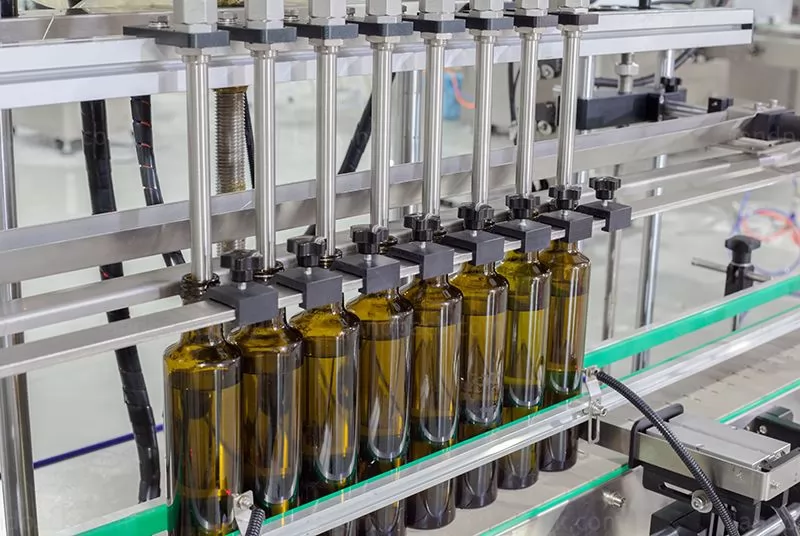

Automatic Ketchup Can And Bottle Filler Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

This paste filling machine is mainly used in the food industry and is capable of filling accurately and rapidly any viscosity liquid such as tomato sauce,tomato paste, honey, ketchup, soy sauce, peanut butter etc.

Packaging Material:

Glass, Metal, Paper, Plastic, Wood, Other

Packaging samples:应用图.jpg


1. The machine use piston pump rotary valve structure to fill, suitable for all kinds of sticky sauce, high precision; The structure of pump adopts shortcut dismantling organ, convenient to wash, sterilize.

2. The piston ring of volumetric injection pump use different material of silicone, polyflon or other kinds according to sauce characteristic.

3. PLC control system, frequency conversion adjusting speed, high automatically.

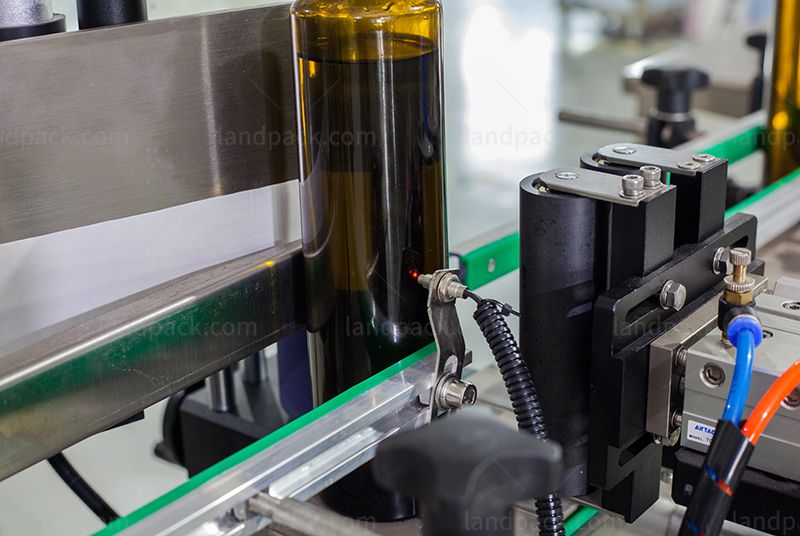

4. The machine will stop filling without bottle, count bottle quantity automatically.

5. Filling quantity of all pumps is adjusted in a lump, each pump is minim adjustable. Operate easy and quickly.

6. Filling head adopts rotary valve piston pump with the function of anti-draw and anti-dropping.

7. The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.

8. The whole machine meets GMP requirement.

ModelLD-GZX390
Filling range5-5000ml(can be adjust with the range)
Filling headcan be customized the 2/4/6/8 filling head
Filling precision±0.5-1%
Filling speed500-3000bottles/hour
Power1KW
Air consumption0.2m3/min
Working pressure0.5-0.7Mpa
Voltage380V/220/110V     50/60 Hz
Filling accuracy≤1%
Package size 2100*1500*800mm
Weight860KG

After receiving your inquiry,We will send you the quotation as soon as possible.
