Automatic Liquid Paste Tomato Ketchup Filling Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

It is suitable for the filling of solid food granule sauce such as chili sauce, peanut butter, noodle sauce, oyster sauce, seasoning sauce and thick sauce.Chemical (glass adhesive, sealant, white latex, etc.), lubricants, and plaster pastes for special industries.The equipment is ideal for filling high-viscosity liquids, pastes, thick sauces, and liquids.

Packaging Material:

Glass, Metal, Paper, Plastic, Wood, Other

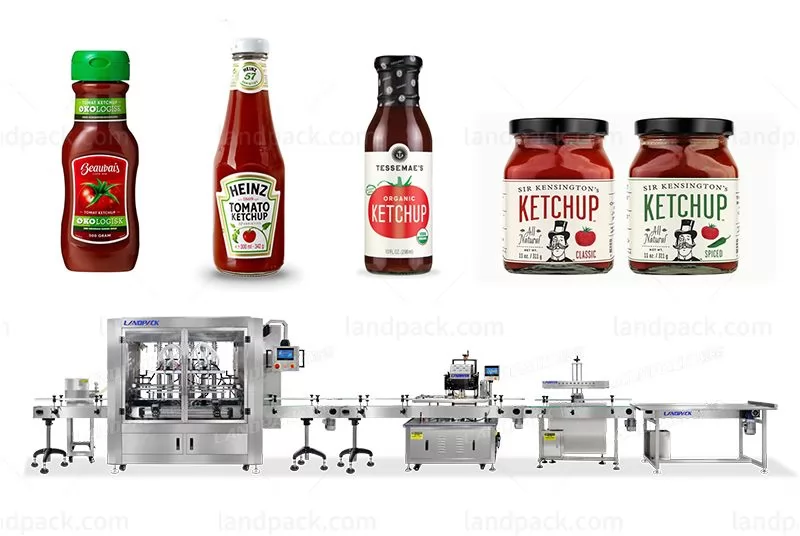

Packaging samples:应用图.jpg

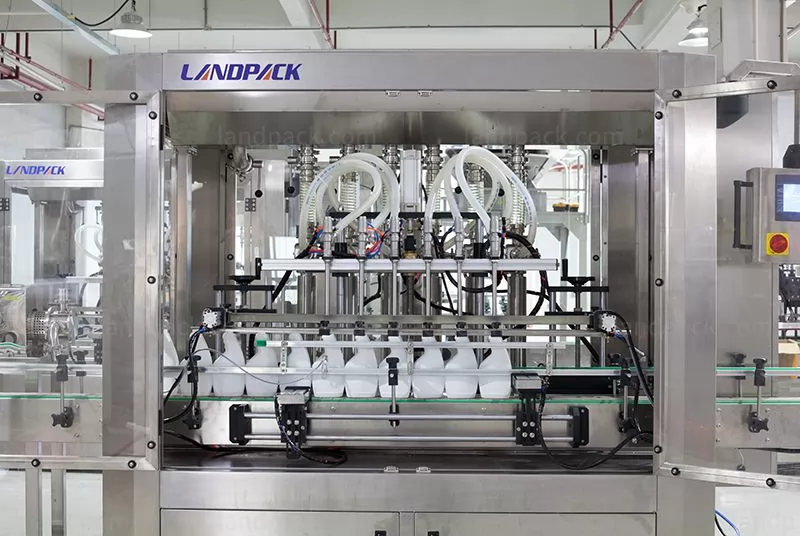

1. The equipment rack adopts closed structure, which is safe to operate and sanitary to use.

2. The high precision piston metering device of granular sauce filling machine is driven by servo motor, which is accurate and reliable;

3. It is made of SUS304 stainless steel, which meets the requirements of food production.

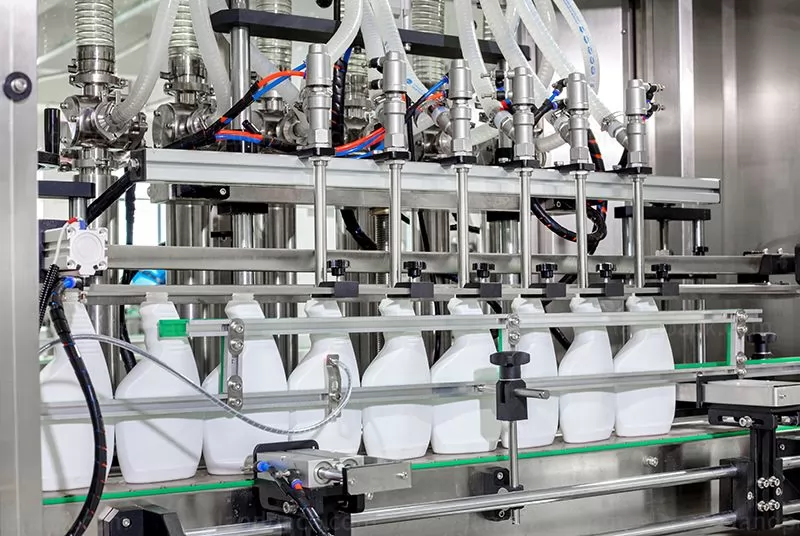

4. The automatic hot sauce filling machine adopts high-quality sealing elements and effective anti dripping measures to ensure no dripping on the filling site;

5. The equipment has its own material storage box, which can clean the pipeline independently, and it is convenient for cleaning and refueling.

6. Delta variable frequency speed control conveying system of granular sauce filling machine can be adjusted according to the production speed;

7. The filling head is equipped with a photoelectric system, which can accurately identify the positioning status of filling bottles, and realize filling with bottles, filling without bottles and no filling with few bottles.

Voltage (V/Hz)
220V/380V; 50Hz/60Hz
Filling heads
6 heads(Customizable)
Filling range
100-1200ml(Customizable)
Filling speed
About 16-24 bpm(Mainly depend on filling material)
Measurement accuracy
±1%
Metering system
Piston pump
Application bottle
Circular, round, flat, square, etc
Dimention(L*W*H)
1.8m*1.2m*2.0m
Net weight
850kg

After receiving your inquiry,We will send you the quotation as soon as possible.
