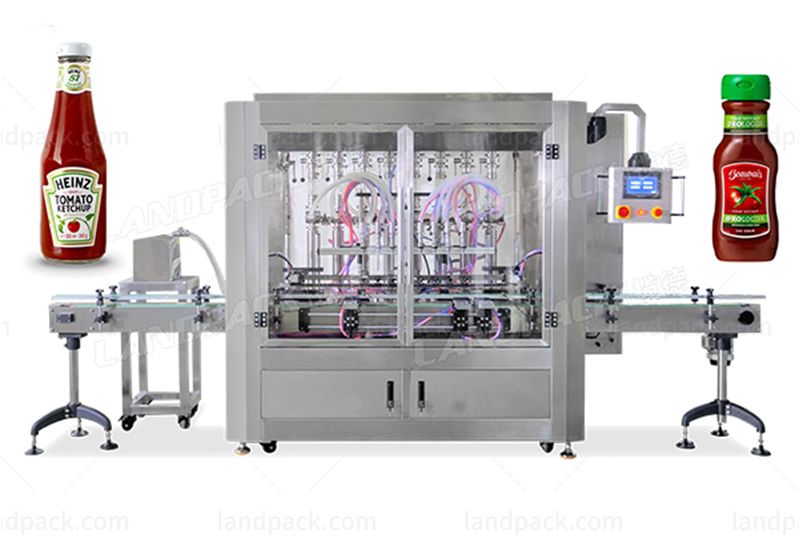

Automatic Plastic Bottle Ketchup Liquid Filling Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey, Shampoo, Lotion Lubricant oil, etc.

Packaging Material:

Glass, Metal, Paper, Plastic, Wood, Other

Packaging Samples:Automatic Plastic Bottle Ketchup Liquid Filling Machine

1. Adopts plunger type metering pump filling, high precision; The structure of pump adopts fast disassembly institutions, easy to clean and disinfect.

2. PLC control system , color touch screen display.

3. This machine has function of no bottle no filling and automatic counting.

4. The filling nozzle was equipped with drip-proof device .

5. W hen filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly , it can effectively prevent bubbles.

6. Machine body and the parts contact ing liquid are made of stainless steel, full compliance with GMP standard

Machine Model
LD-GZ420
Machine Power
2.8KW
Suitable Bottle Height
8
Suitable Bottle Caps
Smaller than 40mm
Air Pressure
0.6Mpa
Working Speed
20-60bottles/min
Conveyor Size
1140mm*100mm(L*W)
Package Size
About 2110*770*1700mm

After receiving your inquiry,We will send you the quotation as soon as possible.
