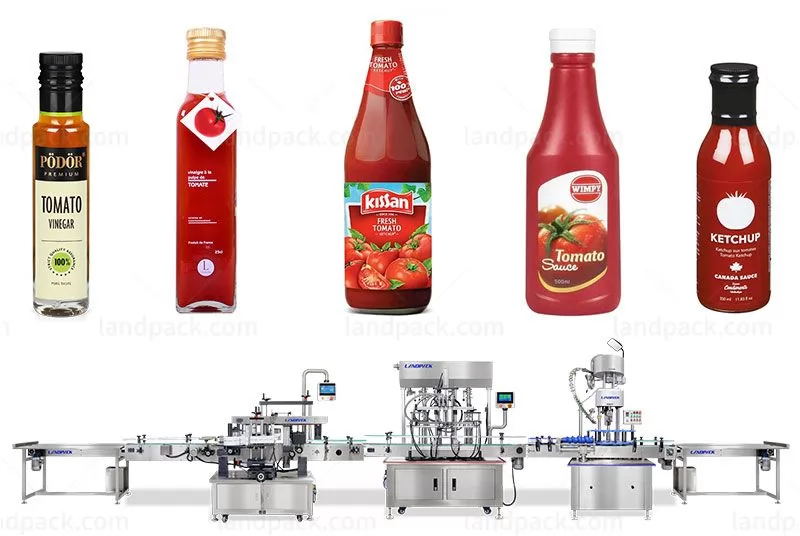

Automatic Tomato Ketchup Bottle Filling Capping Labeling Line

  • Application
  • Description
  • Parameter
  • Video

This ketchup filling machine is mainly used in the food industry and is capable of filling accurately and rapidly any viscosity liquid such as ketchup, tomato sauce, tomato paste, honey, soy sauce, peanut butter, etc.

Packaging Material:
HDPE, Aluminum, Plastic, Glass, etc.

Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Bottle/Jar/Can material
4. Bottle/Jar/Can dimension

Packaging samples:tomato paste filling machine

1. PLC control system, color touch screen display, and filling volume can be adjusted directly on the touch screen, easy to operate.

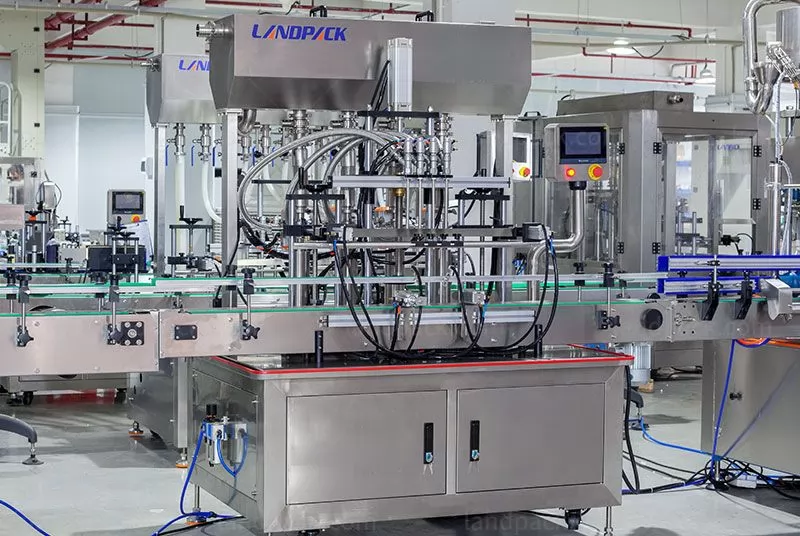

2. The machine uses a piston pump rotary valve structure to fill, suitable for all kinds of sticky sauce, with high precision; The structure of the pump adopts a shortcut dismantling organ, convenient to wash, and sterilize.

3. The packing line is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as juice, edible oil, sauce, daily necessities, medicine, etc.

4. Machine has a nice appearance and reasonable structure, it's currently the most advanced new design sauce filling machine, the machine can be customized with 4/6/8/12/etc filling heads according to the customer's production capacity.

5. The contact with the material is 304 stainless steel, in full compliance with GMP standards.

6. Servo motor control filling volume and time, filling precision is about ±0.5%

Bottle MaterialPET/PP/PE/Glass/Metal
Bottle ShapeRound/Square/Unique Shape
Filling range0.2-1L, 0.5-5L, 5-25L
Filling head4-12
Production Capacity700-4000 bph
Gas Requirement0.6-0.8MPa
Filling precision3
Working voltageAC 220V/380V, 3phase, 50/60Hz, 2.2-6.5KW
User Ambient ConditionsTemperature: 10~40℃; Humidity: No dew
Packing size1700*1500*2200mm, Specific to the actual prevail

After receiving your inquiry,We will send you the quotation as soon as possible.
