Full Automatic Ketchup Bottle/Jar Filling Capping And Labeling Line

  • Application
  • Description
  • Parameter
  • Video

Suitable for packing all kinds of liquid, fluid, and paste material, such as ketchup, tomato sauce, mayonnaise, chili sauce, jam, paste, juice, edible oil, sauce, oil, honey, daily necessities, medicine, etc.

Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bottle/can/jar weight
3. Bottle/can/jar dimension
4. Bottle/can/jar material

Packaging machine:ketchup bottle filling machine

1. This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, and pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability, and good stability, and is well-received by users;

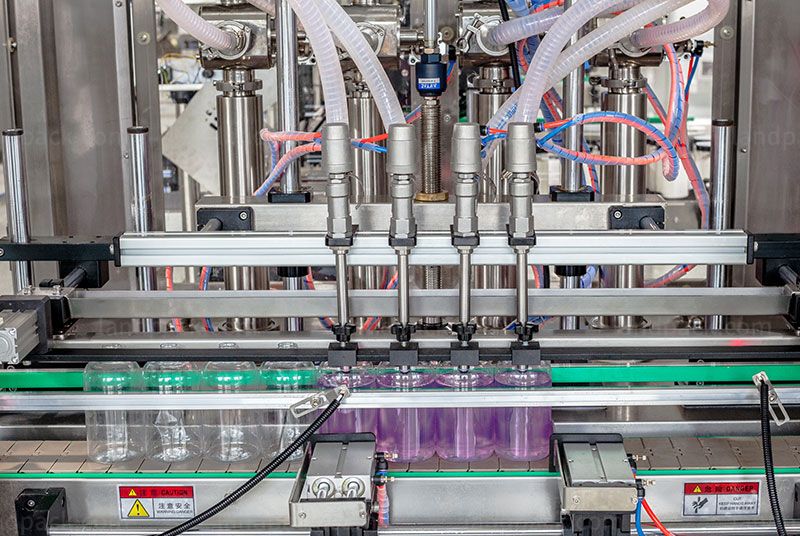

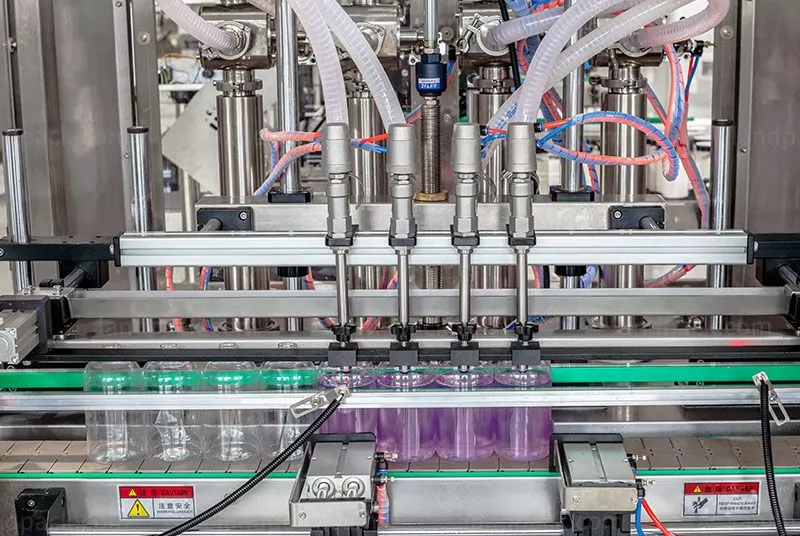

2. Special sauce anti-drip filling head and increase the rotary valve, filling large particles of sauce, not blocking and leaking;

3. The piston cylinder of the filling machine adopts a grinding and wear-resistant metering cylinder, which can automatically compensate the piston seal for long life;

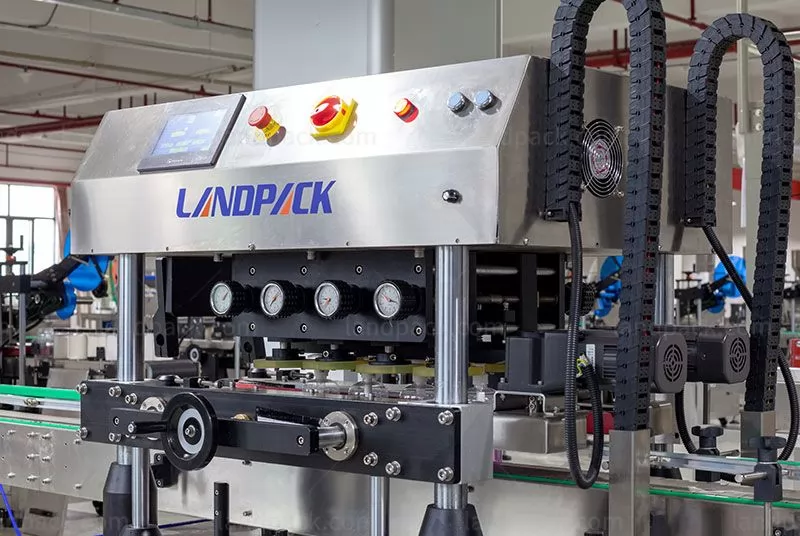

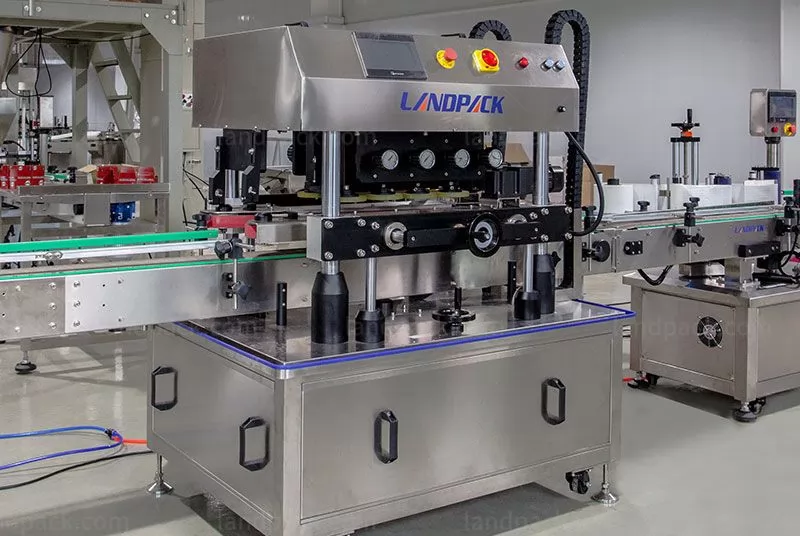

4. The capping machine uses a manipulator to grasp the cap, press the cap, and control the capping torque through a servo motor to achieve the capping effect;

5. This type of capping machine has uniform force for capping, easy to adjust the force, and it is not easy to wear the cap;

6. Piston-type measuring cylinder, servo drive, suitable for large particles of thick sauce filling;

7. The whole machine is made of corrosion-resistant stainless steel, which is easy to clean and disinfect, and meets the national regulations and requirements on food machinery and food hygiene;

8. Imported PLC and 7-inch touch screen man-machine interface, production parameterized control, simple operation;

9. This kind of production line is relatively advanced, can be improved according to the different requirements of customers, and can be made into equipment that fully meets customers' needs. The plexiglass cover of the whole machine is designed to prevent impurities from entering the filling material, which is safe and hygienic;

Filling Range50-1000ml (customizable)
Filling Speed15-25 bottles/min (refers to the range of 100-500ml)
Measurement Accuracy±1%
Control systemPLC
Power220V, 50Hz, 5.5KW
Working Pressure0.6-0.8 m³/min
Equipment material304

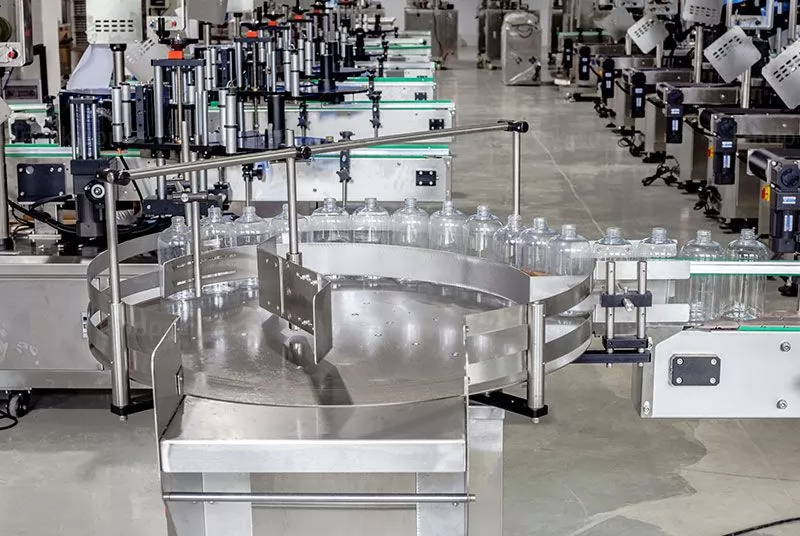

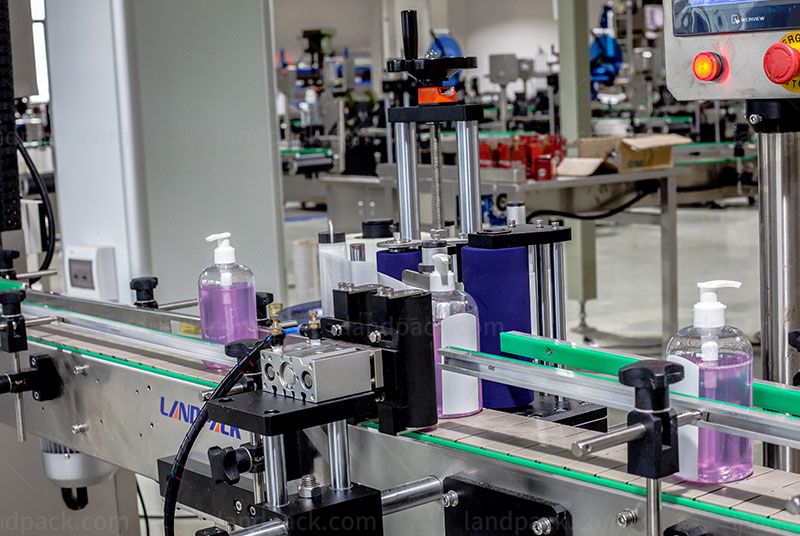

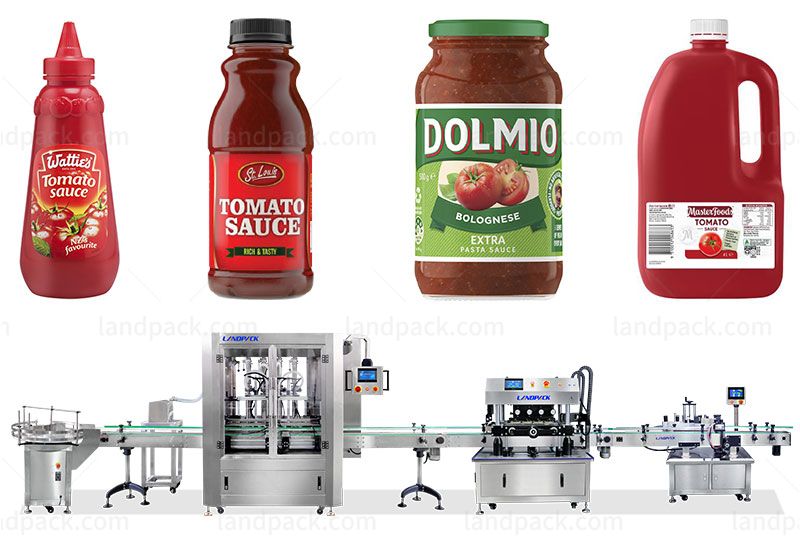

Description of the main packaging processUnscramble bottles → Filling → Four-wheel screw cap → Labeling
