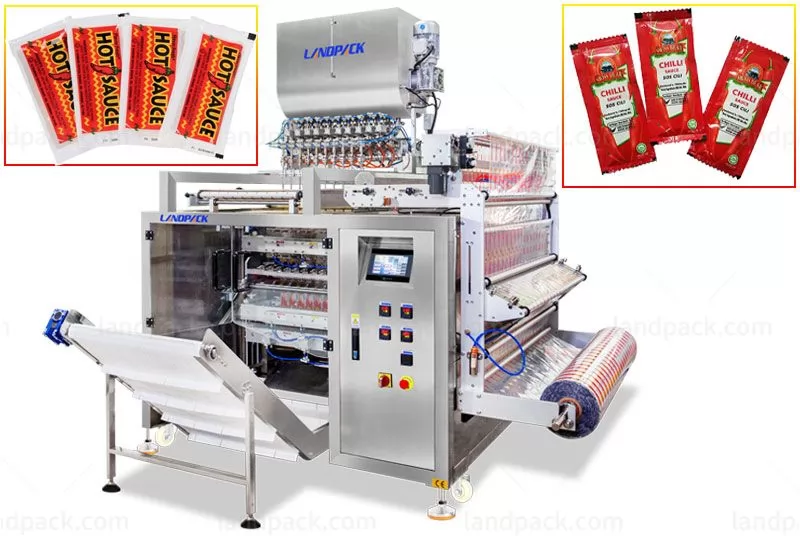

High Speed 10 Lane Liquid 3/ 4 Sealing Sachet Packaging Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

This machine is applicable for dosing liquid or semi-liquid and sealing in form of 3/ 4 side sealed sachet, include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting.

The detail application description as following table:


Application Description
Applicable Sealing Style3/ 4 sides sealing
Applicable ProductsConfigure with pump, capable to pack liquid products
Applicable Packaging
Material
Laminate Heat sealable packing materials such as OPP/PE, BOPP/VMPET/PE, PET/AL/PE etc.
Applicable industryHigh speed 10 lane liquid 3/ 4 sealing sachet packaging machine, it is suitable for liquid products containing fine particles such as chili sauce, chutney, bean paste, instant noodle sauce, ketchup, paste, honey, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo,etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    High Speed 10 Lane Packaging Machine For Liquid Products Containing Fine Particles

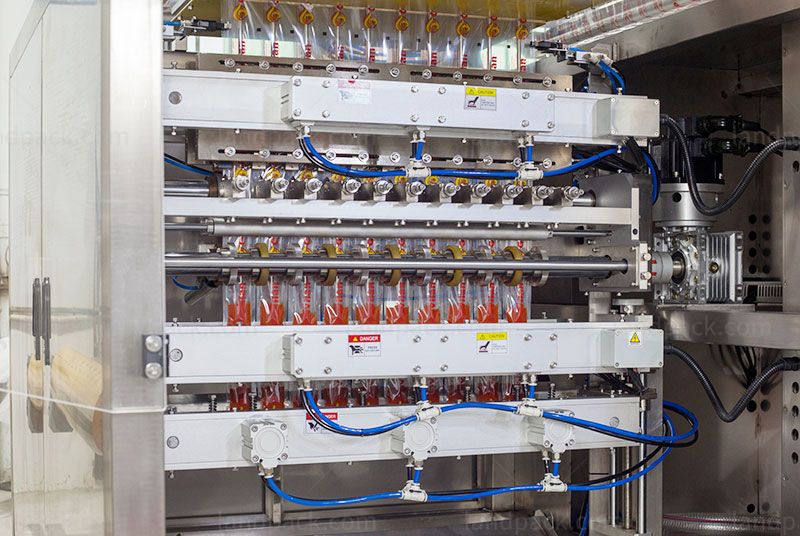

1. Multi lanes machine can produce multi lanes bags at same time.

2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

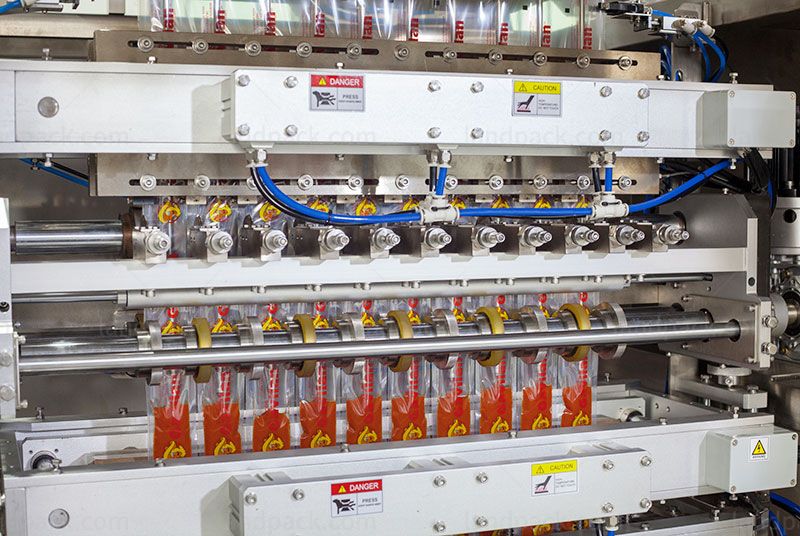

5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

6. PLC controller, high function and control the whole machine’s work steps.

Model

LD-480YLD-720YLD-960Y
Track Number4~6 Track4~10 Track4~12 Track

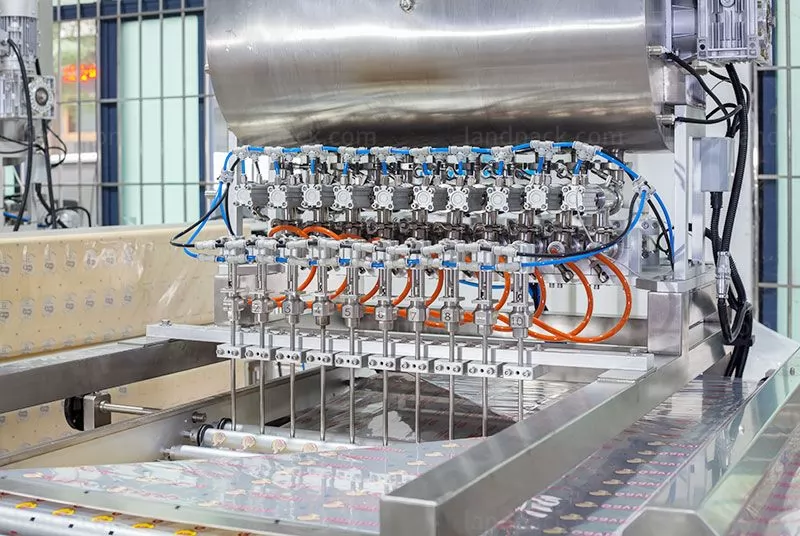

Filling Method1.Piston pump;   2.Peristaltic Pump
CapacityMax.40 cycle/min
Sachet SizeL:45--120mm; W:35-60mmL:45--120mm; W:35-90mmL:45--120mm; W:35-120mm
Film Width & ThicknessMax.480mm;0.07-0.1mmMax.720mm;0.07-0.1mmMax.960mm;0.07-0.1mm
Sealing Type3/4 sides sealing3/4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power0.8 mpa  0.8m³/min; 2.8kw0.8 mpa  0.8m³/min; 4.1kw0.8 mpa  0.8m³/min; 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg

After receiving your inquiry,We will send you the quotation as soon as possible.
