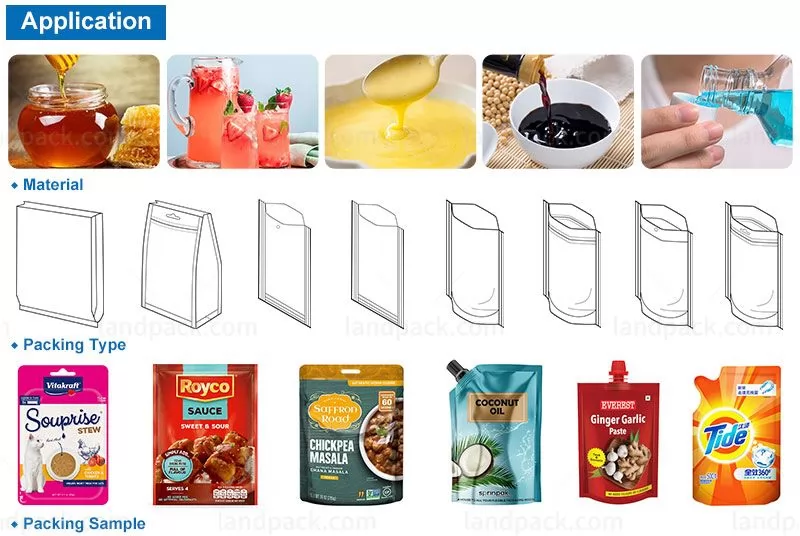

Application:
Suitable for All Kinds of Pre-Made Pouches, and liquid packing, such as sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip)
Easy to operate: PLC and color panel, fault indication on the panel.
Easy to adjust: Only about 10 minutes to change different pouches.
Frequency control: Speed can be adjusted by frequency conversion within the range.
Waterproof design: The machine surface can be washed down, so easy cleaning and has a longer useful life.
No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety switches, machine alarms and stops when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel.
Imported engineering plastic bearings, no need for oil, no contamination.
Oil-free vacuum pumps, avoid the pollution of the production environment.
| Model | LD-8200/LD-8250 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| Size | W: 70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60bag/min（speed is determined by the product filling quantity） |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） |
| Workflow | giving bag→coding →opening →filling 1 →filling 2→auxiliary→exhaust→heat sealing→forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
