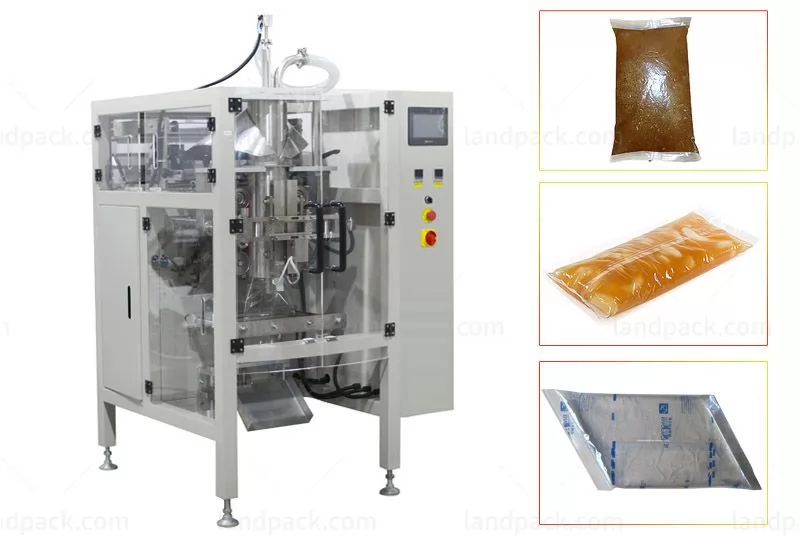

Full automatic Vertical pouch Forming, Filling and Sealing machine for Air Free liquid pack

1.Suitable for sauces, ketchup, egg white, jam, mayonnaise, chili sauce, lotus seed paste, bean paste and other food stuffing as well as drinks of large bulk.

2.It is also suitable for Non-food oil, detergent, grease, industrial paste, etc,

3.Especially suitable for liquid vacuum packing, good for product preservation.

Packing Process:

1. Automatic weighing, filling and sealing machine for various pure liquid, average viscous liquid and highly viscous liquid.

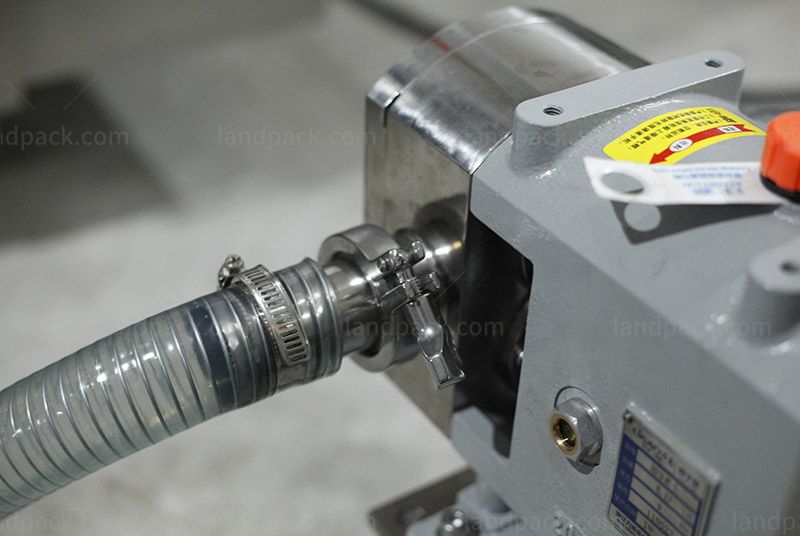

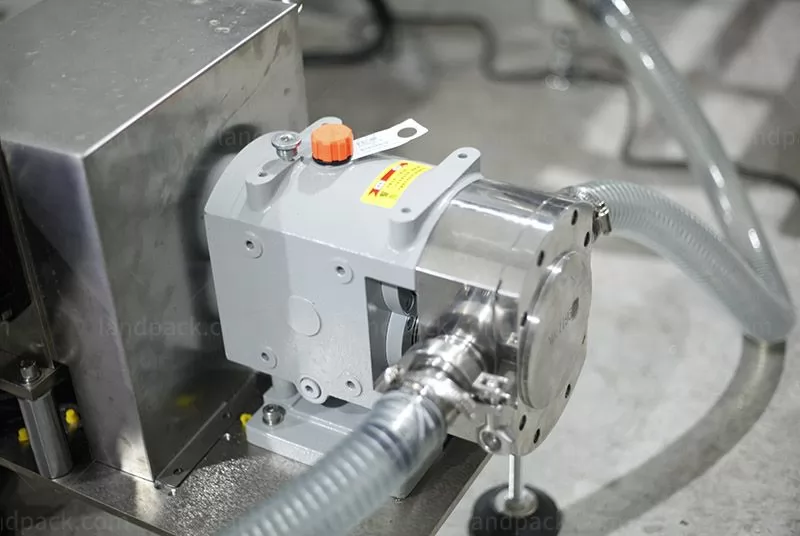

2. Adopt high performance rotary lobe pump for filling process.

3. Extrusion air expelling method could expel the air inside packing efficiently, to meet the requirements of preservation.

4. Special PE composite packing film is required for such packing.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Air Free Liquid Pouch VFFS Machine, Liquid Vacuum Packing Machine

Products dosing, Filling, Laminate heat sealable pouch making and sealing.

Stainless steel 304 structure and surface.

Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting.

Simple changing of pouch former, to adapt different pouch size requirement.

Intelligent temperature controlling configuration, ensure the artistic and neat sealing.

Configure with packaging film pre-pulling device, to enable stable pouch making.

No film no filling, and easy to change the packaging film.

Film WidthMax.420mmMax.520mm
Bag Length80-300mm80-350mm
Bag Width60-200mm100-250mm
Range of Measurement    150-1500ml2000ml
Film Roll DiameterMax.320mmMax.320mm
Packaging Rate10-60bag/min10-60bag/min
Power220V 50/60Hz 2KW220V 50/60Hz 3KW
Machine Size(L*W*H)1217*1015*1343mm1488*1080*1490mm
Machine QualityAbout 650kgAbout 680kg
Optional device1.Date Printing,2.Hole Punching Device,3.Air-filling Device,4.Tear Notch Device
