Application:

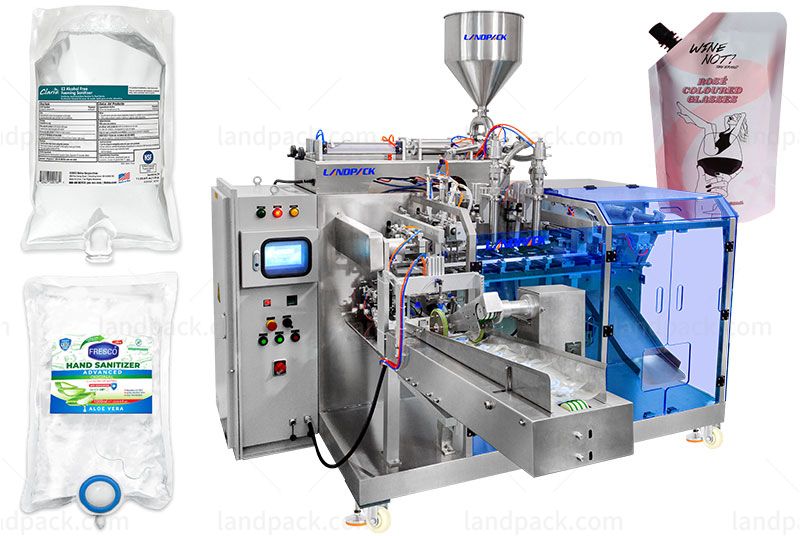

This liquid filling packing machine suitable for kinds of liquid products and can pack different premade bags. It is applied for various kinds of liquid such as honey, milk, oil, ketchup, paste, sauce, fruit juice, hand wash, laundry liquid. After equipped with explosion-proof devices, it can be used for various flammable and explosive liquids, such as alcohol, spirits, disinfectant, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Different machine models available to meet a wide range premade bag size.
Customized main machine structure for various kinds of bag shape. Like doypack zipper bag, 3/ 4 side seal bag, spout pouch, stand up bag and irregular bag, ect.
With upgrade PLC control system, easy for operation on touch screen of parameter setting.
Machine machine can equipment with different metering system like weigher, liquid pump, auger filler, bucket chain for different kinds of product filling and packing in premade bag.
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
