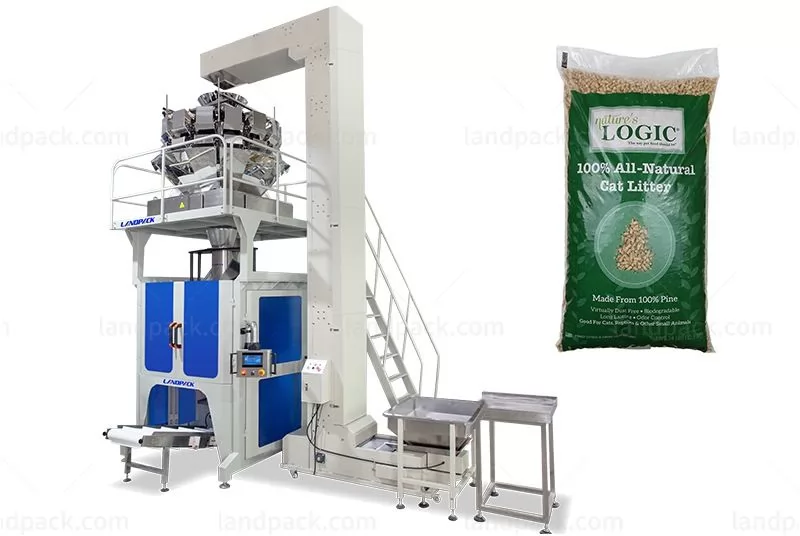

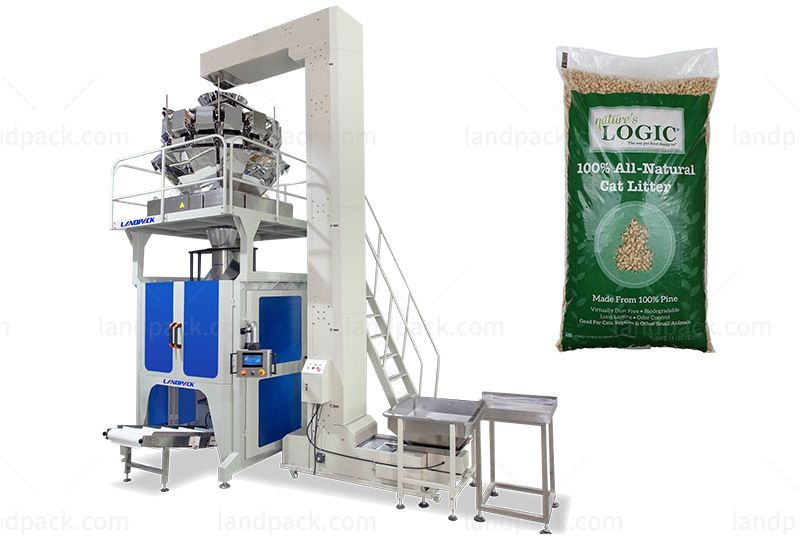

5-15kg Grain Big Pouch Multihead Weigher Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for weighing packaging of 5-15 kg granular products, such as grain, dog food, cat litter, cat food, plastic parts, hardware parts, fish food and other granular packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:5-15kg Grain Big Pouch Multihead Weigher Packing Machine

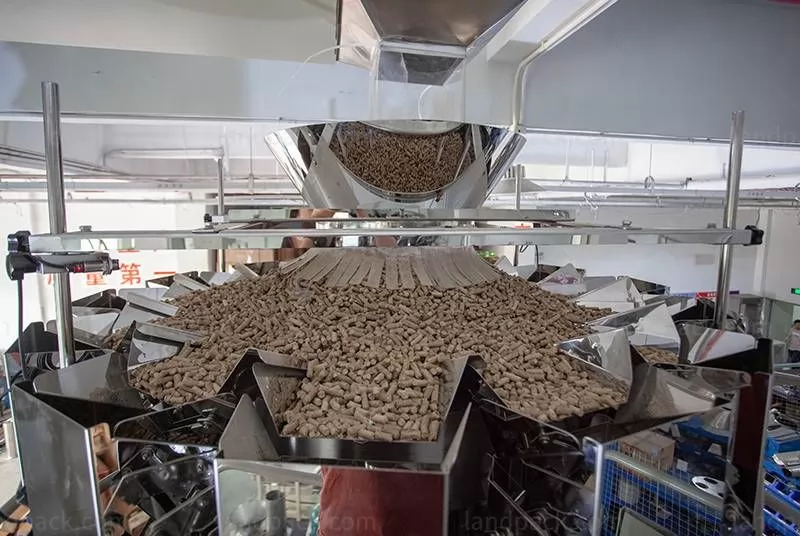

 1. Multi-head combined weigher, improve metering speed and accuracy.

 2. 7inch touch screen, easy operation and multiple language for choice.

 3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

 4. With a memory function for storage ten sets of parameters. Easy to change packing product.

 5. Separate PID temperature controller, suitable for various packing materials.

 6. Multi-union roll film pulling system make film running more smooth.

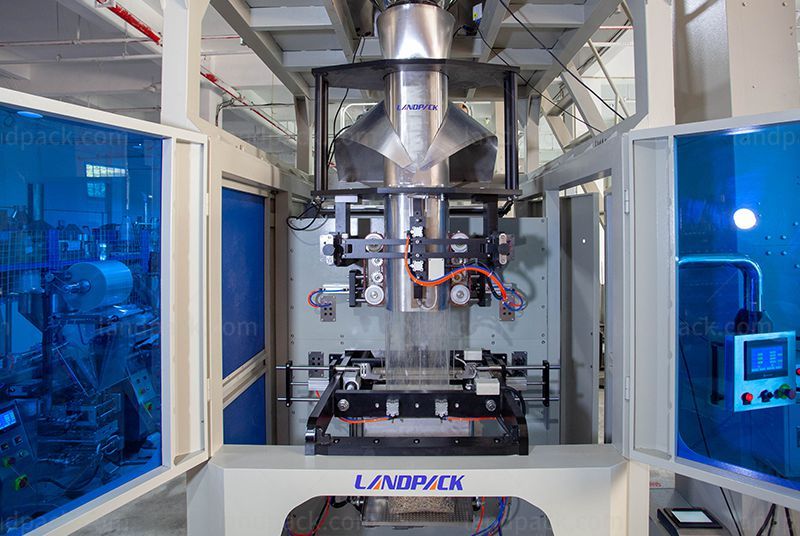

 7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

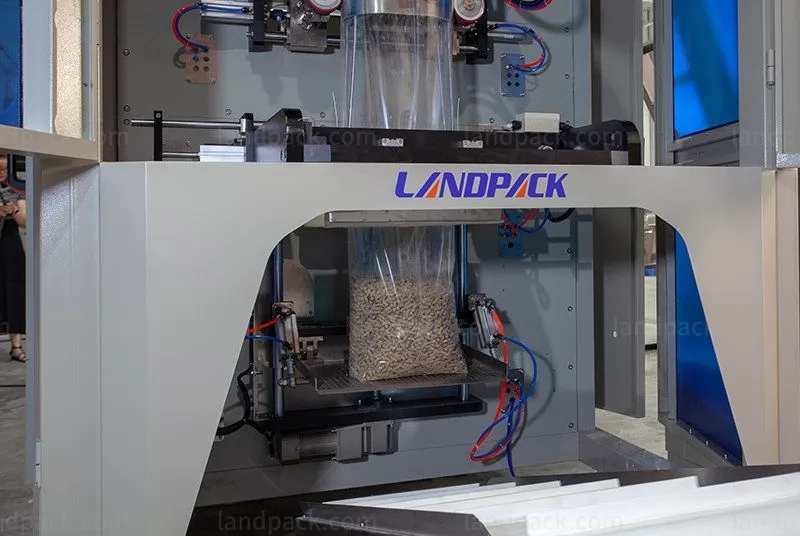

 8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

 9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

 10.Low loss, labor saving, easy for operation and maintenance.

ModelLD-420LD-520LD-720LD-900LD-1050LD-1200
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm100-600mm100-800mm100-1000mm
Bag Width60-200mm100-250mm180-350mm260-430mm290-505mm290-580mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm400mm400mm400mm
Pakaging Rate5-60bag/min5-60bag/min5-55bag/min5-20bag/min5-20bag/min5-20bag/min
Film WidthMax.420mmMax.520mm150-Max.720mmMax.900mmMax.900mmMax.1200mm
Measurement Range150-1500ml5-2000ml4000ml1-25L1-25L1.5L-45L

After receiving your inquiry,We will send you the quotation as soon as possible.
