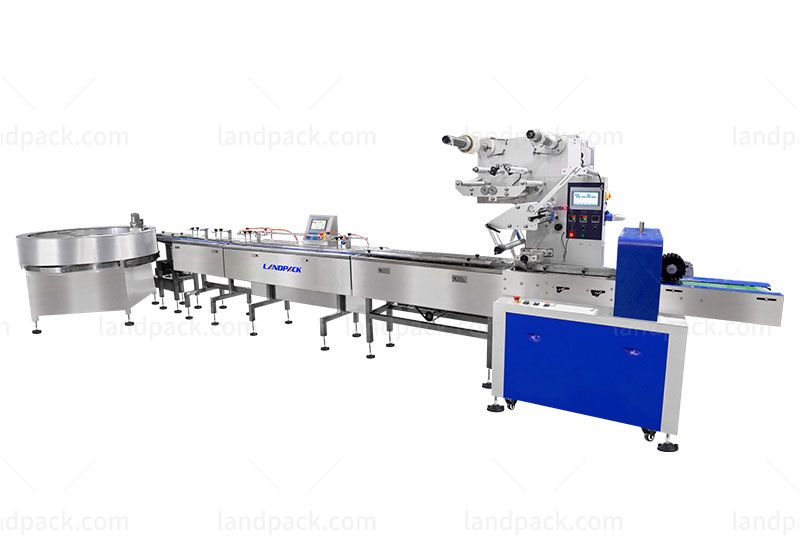

Automatic Protein Bar Horizontal Flow Wrapper Packing Machine Food Flow Packing Line

  • Application
  • Description
  • Parameter
  • Video


It is suitable for high-speed pillow packing of square, spherical and all kinds of special shape and fixed shape block materials, such as candy, jerky, cookies, bun, chocolate, biscuits, protein bar, etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Protein Bar Horizontal Flow Wrapper Packing Machine Food Flow Packing Line

1.Dual frequency conversion control, the length of the bag can be set and cut in one step, saving time and film.

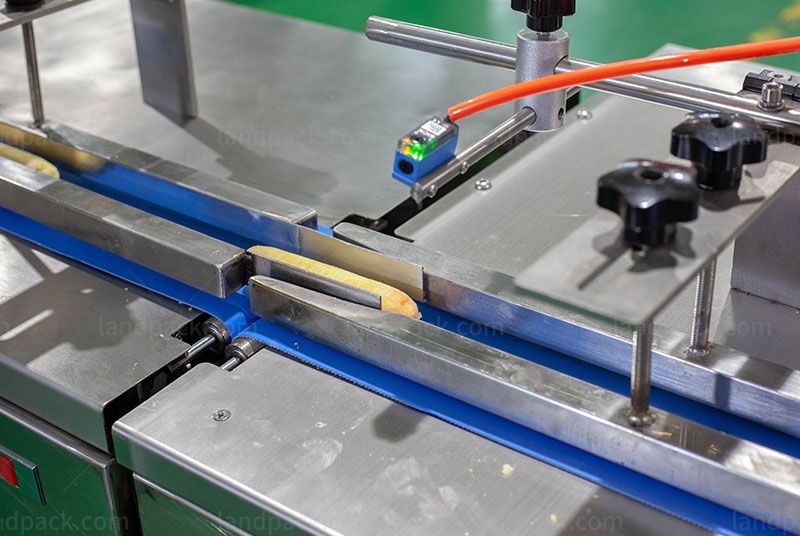

2.High-sensitivity photoelectric eye color tracking, cut-seal position numerical input for higher accuracy.

3.Temperature independent PID control, more suitable for packing different materials.

4.Positioned stop function, no knife or film waste.

5.Simple driving system, reliable operation, convenient maintenance.

6.All control is through software, easy to adjust and update technically.

film widthmax.350mmmax.400mmmax.450mmmax.600mm
bag length65-330mm150-400mm150-450mm160-500mm
bag width50-160mm50-180mm50-180mm100-280mm
high end productsmax.60mmmax.65mmmax.75mmmax.110mm
film roll diametermax.320mmmax.320mmmax.320mmmax.320mm
packing speed40-180bag/min30-150bag/min30-150bag/min20-150bag/min
Force220V 50/60Hz, 2.6KW220V 50/60Hz, 2.8KW220V 50/60Hz,2.8KW220V 50/60Hz, 2.8KW
Machine size (length x width x height)4030*770*14204030*770*14204030*820*14204030*970*1500
Machine weightabout 580kgabout 600kgabout 650kgabout 680kg
optional devices1. Side feeding device, 2. Straight feeding device, 3. Material conveyor belt,4. Final sealing auxiliary conveyor, 5. Auxiliary material feeding device, 6. Material cutting prevention device, 7. Perforation device, 8. Angle folding device, 9. Date printer, 10. Labeler
