Automatic Sugus Candy Gusset Bag Vertical Pouch Packing Machine

Application:

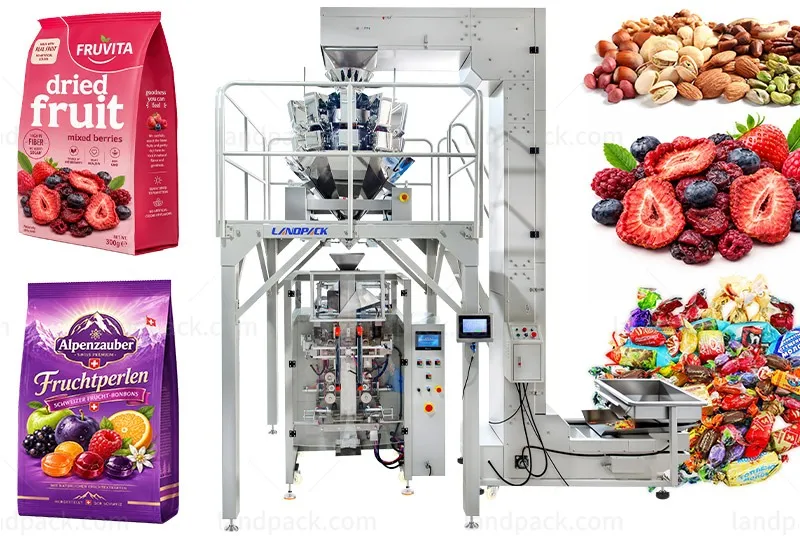

This candy packing machine packs Sugus candy, gummies, hard candy, jelly candy, coated sweets, chocolate pieces, chewing gum, nuts, and other free-flowing confectionery products. The Z-type elevator feeds candy to the 10-head multihead weigher, which portions each batch before the vertical machine forms, fills, and seals the bag. This candy pouch packing machine suits retail packs up to about 1 kg, depending on bag size and product density. The reference VFFS platform also targets confectionery and other free-flowing granular products.

Package Type:
The machine can produce pillow bags, back-seal gusset bags, and block-bottom style bags by changing the corresponding forming parts. It forms each package directly from roll film and works with printed or plain heat-sealable laminated materials. The reference platform specifically lists back-seal pillow bags and gusset bags.

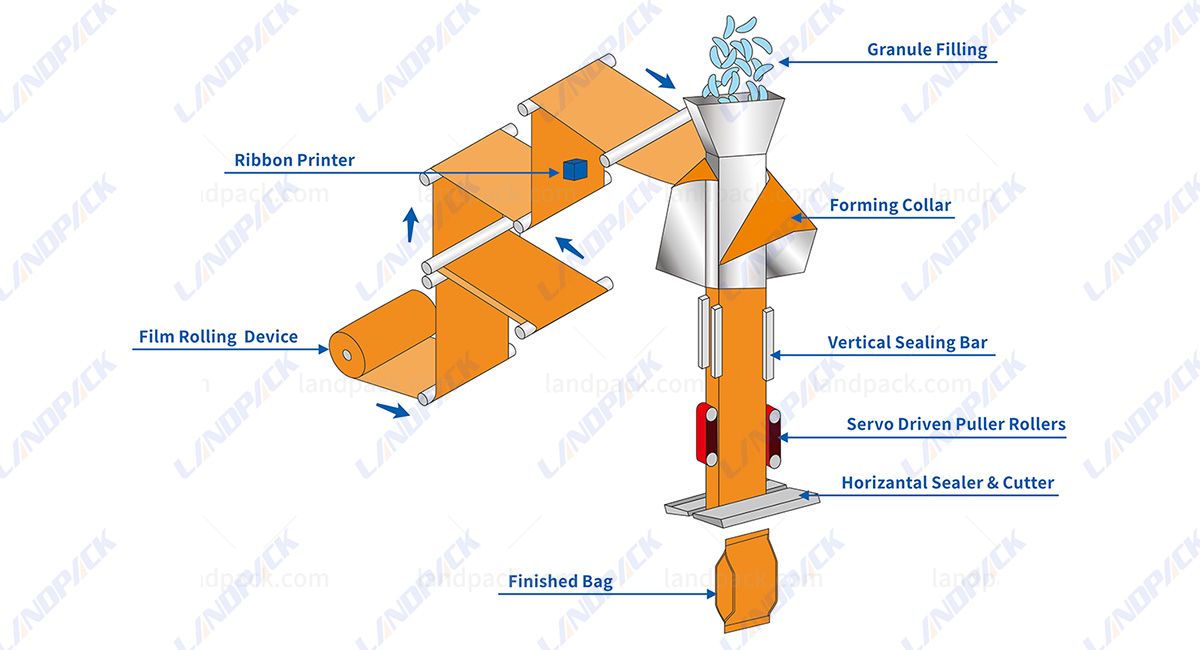

Workflow:

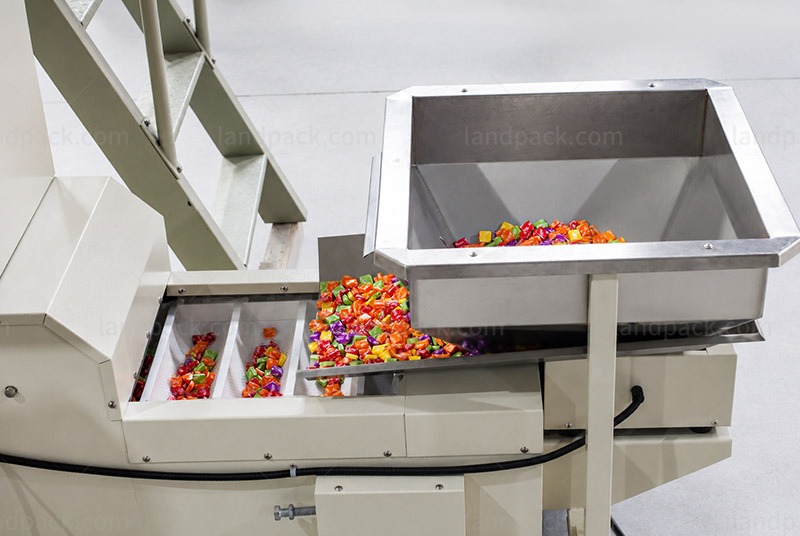

1. Candy Feeding, 2. 10-Head Weighing, 3. Roll Film Feeding, 4. Servo Film Pulling, 5. Bag Forming, 6. Candy Filling, 7. Vertical Sealing, 8. Gusset / Bottom Forming, 9. Horizontal Sealing and Cutting, 10. Finished Bag Output

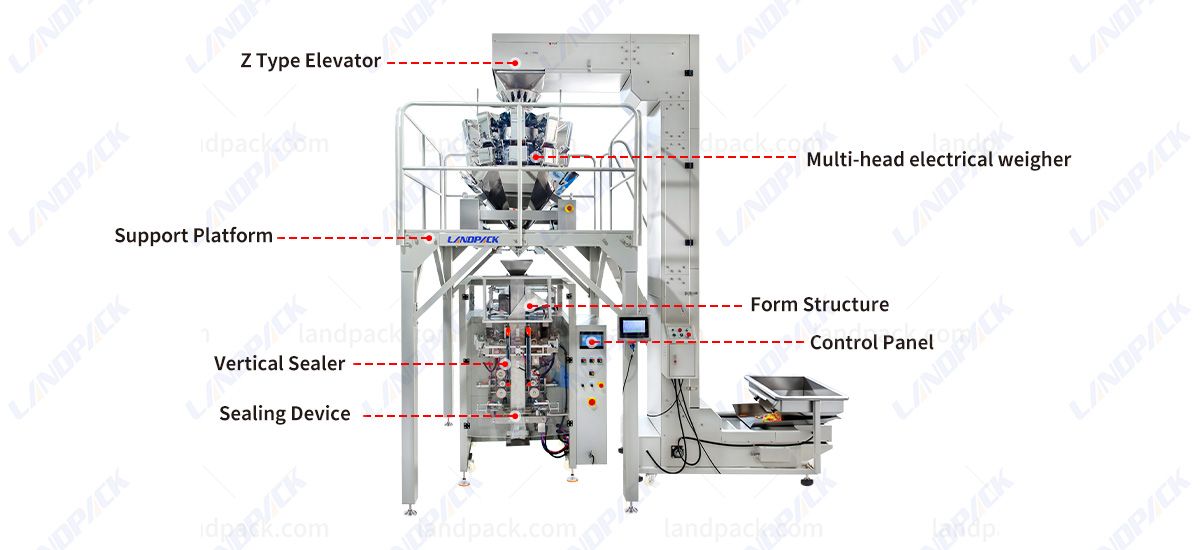

Machine Key Components:

Features:

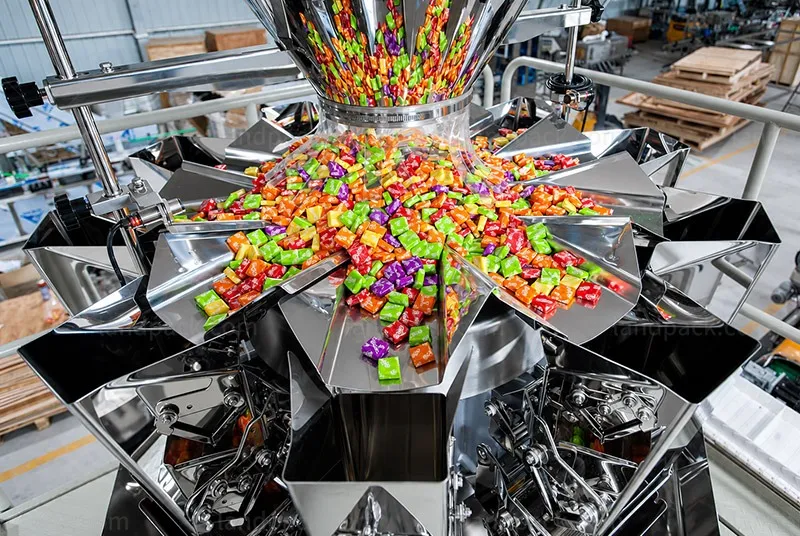

1. 10-head multihead weigher portions irregular candy pieces by target weight
2. Suitable for Sugus, gummies, hard candy, chocolate pieces, nuts, and similar products
3. Servo motor controls film pulling and bag length
4. One machine can change between pillow, gusset, and block-bottom bag formats with matching forming parts
5. Roll-film structure handles bag forming without premade pouch feeding
6. PLC and touchscreen control target weight, film movement, sealing, and production settings
7. Photoelectric tracking can align printed film with the cutting position
8. Separate sealing controls match different heat-sealable laminated films
9. Automatic feeding, weighing, forming, filling, sealing, and cutting run in one line
10. Finished-product conveyor moves heavier candy bags away from the sealing section
11. For candy packing machine manufacturers, the final configuration can change according to candy size, target pack weight, bag style, and film width
