Application:
It can be used in candy, chocolate, biscuit and snack production lines where automatic product sorting, chain feeding, roll film forming, sealing and cutting are required. Such as filled marshmallows, twisted marshmallows, cylindrical marshmallows, mini marshmallows, cotton candy bars, milk candy, fruit candy, gummy candy, nougat bars, chocolate bars, wafers, sandwich biscuits, cookies, cereal bars, protein bars, puff snacks and coated confectionery products.
Package Type:
Suitable for individual pillow bags made from heat-sealable laminated roll film for marshmallows, candies, chocolate bars, biscuits and snack products.
Workflow:

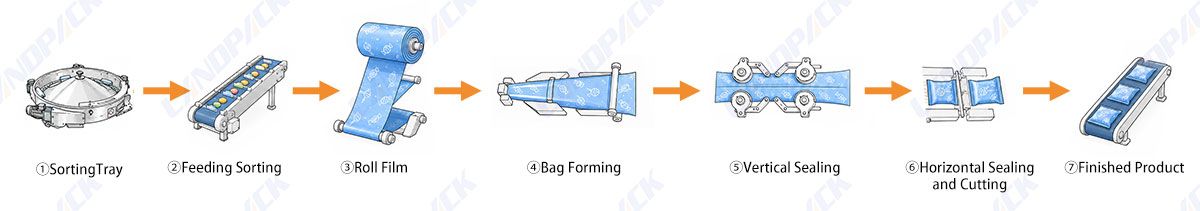

Product Loading → Rotary Sorting → Conveyor Chain Feeding → Film Unwinding → Bag Forming → Product Wrapping → Longitudinal Sealing → End Sealing and Cutting → Finished Pack Output
Machine Key Components:

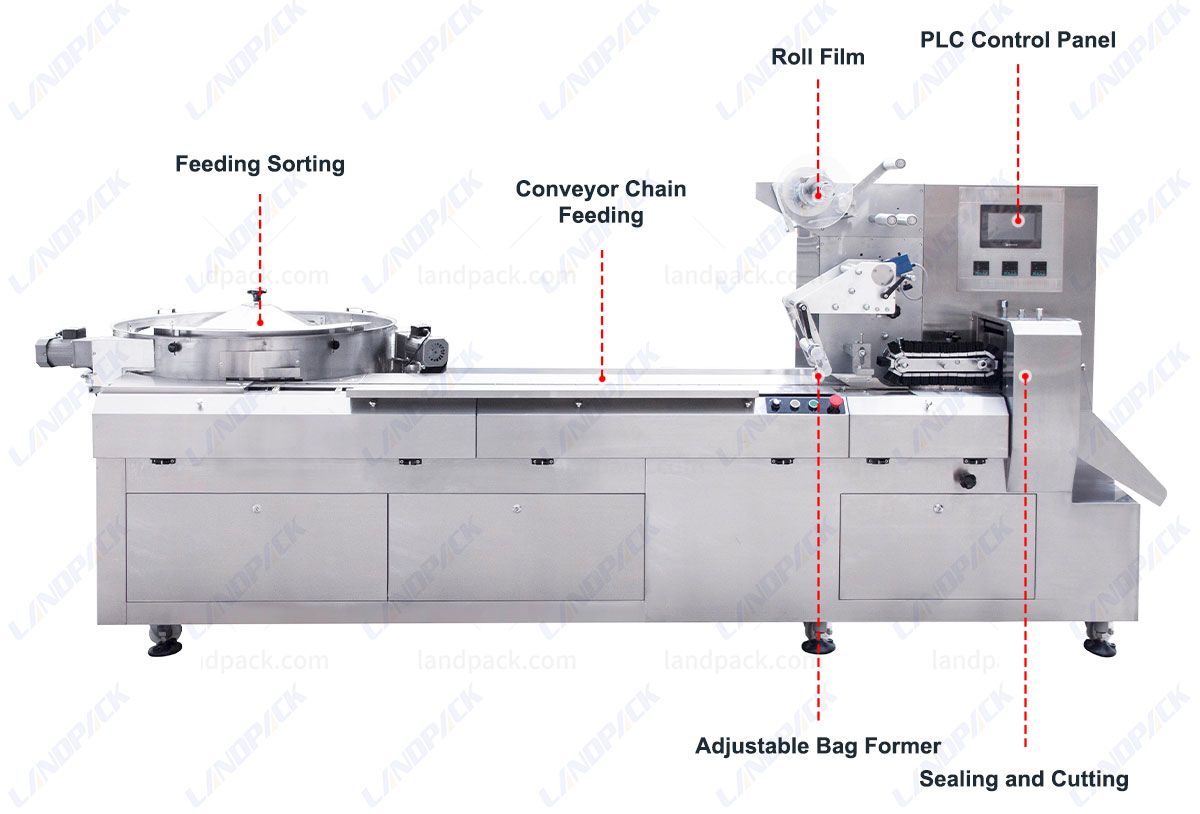

1. Feeding Sorting 2. Conveyor Chain Feeding 3. Roll Film 4. Adjustable Bag Former 5. PLC Control Panel 6. Sealing and Cutting
Features:

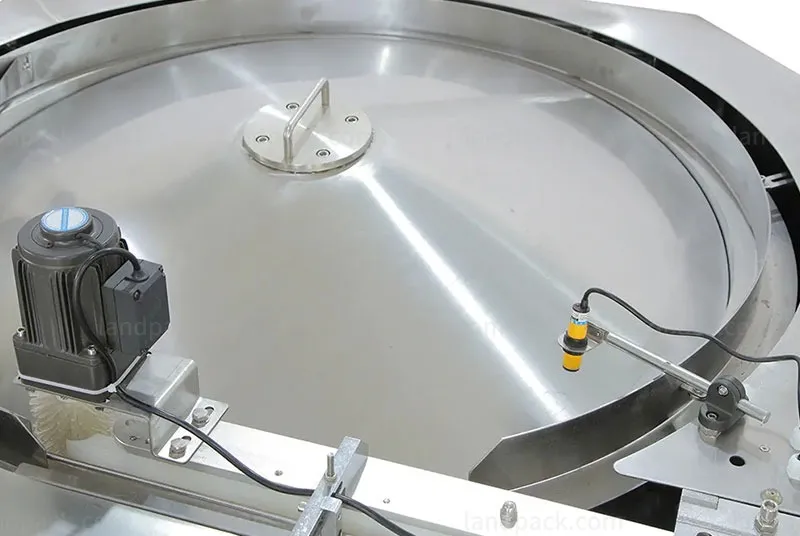

1. The rotary sorting disc arranges bulk products and transfers them continuously to the packaging conveyor.

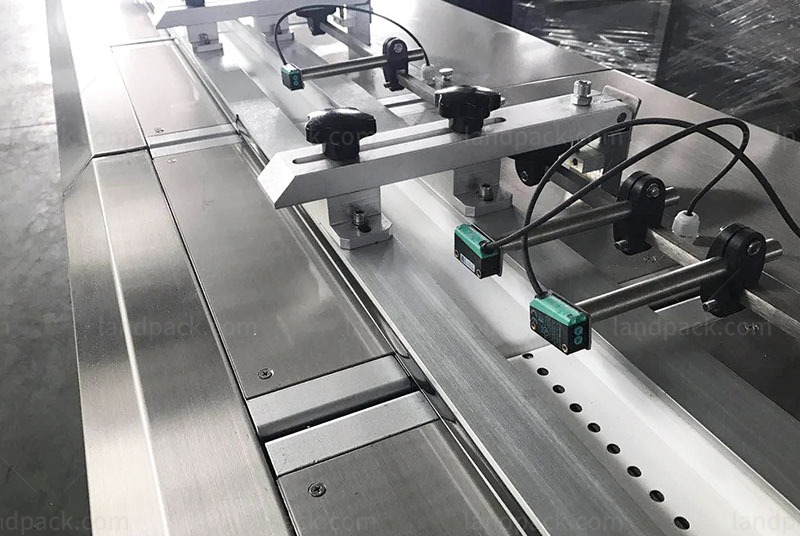

2. Conveyor chain feeding keeps each product positioned before entering the adjustable bag former.
3. The adjustable bag former supports different product dimensions and finished pillow bag sizes.
4. Photoelectric mark tracking controls the cutting position when printed packaging film is used.
5. The multi-servo control system coordinates product feeding, film pulling, sealing and cutting during high-speed production.
6. The PLC touch screen allows operators to set packaging speed, bag length, sealing temperature and operating parameters.

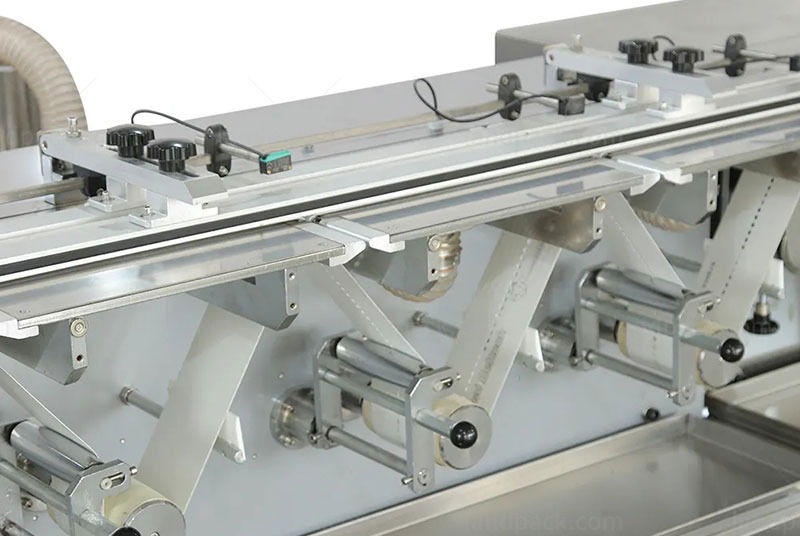

7. The automatic film connection configuration helps reduce downtime and packaging film waste during continuous production.
8. The stainless-steel machine body and food-grade PU conveying belts are suitable for confectionery packaging environments.
9. The machine can be connected directly with upstream forming, cooling or production equipment according to the required line capacity.
| Model | LD-L600 |

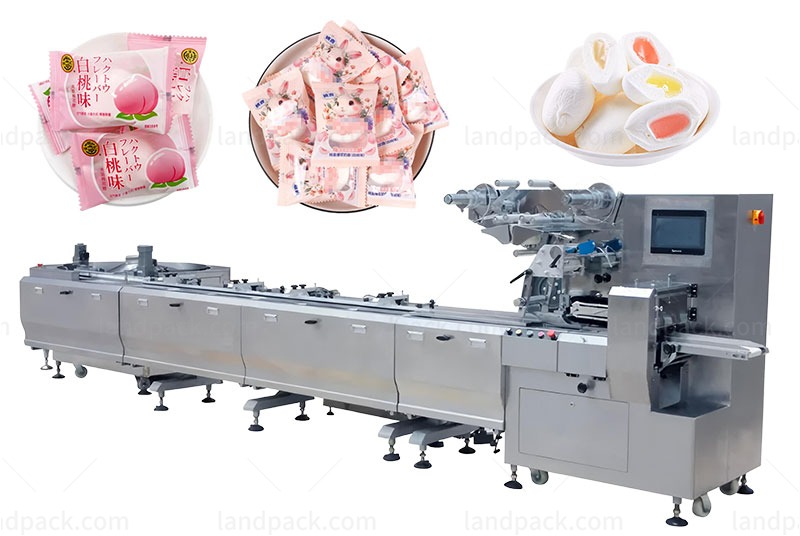

| Machine Type | Automatic Horizontal Flow Packing Machine |
| Applicable Products | Marshmallows, candies, chocolate bars, biscuits, wafers, nougat and snack bars |
| Packaging Material | Heat-Sealable Laminated Roll Film |
| Packaging Type | Individual Pillow Bag |
| Packing Speed | 50–800 Bags/Min |
| Finished Bag Size | Length 15–200 mm × Width 15–60 mm × Height 5–30 mm |
| Control System | PLC Touch Screen with Multi-Servo Control |
| Film Tracking | Photoelectric Color Mark Sensor |
| Machine Frame | Stainless Steel 201 |
| Conveyor Belt | Food-Grade PU Belt |
| Voltage | 380 V, 50 Hz, 3 Phase |
| Total Power | 7.3 kW |
| Net Weight | Approx. 1700 kg |
