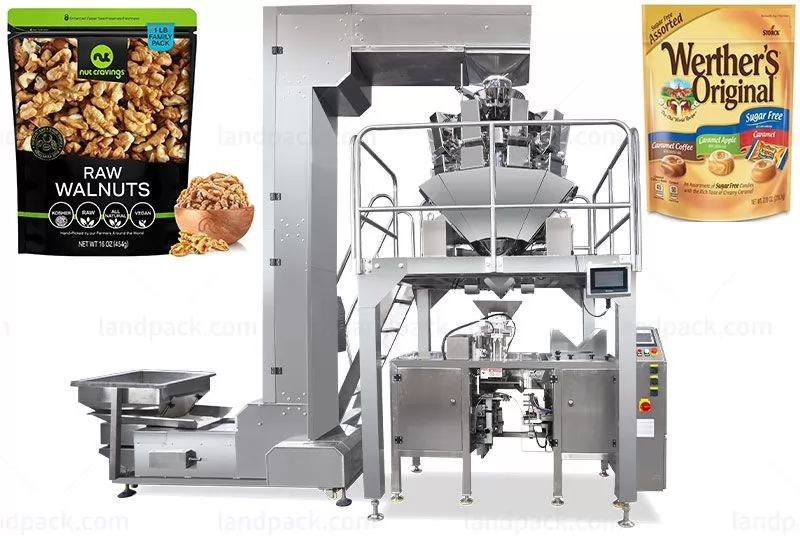

It can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc. Premade pouch can be 3-side-seal, gussette pouch, standup pouch no-zip-lock.
Suitable for various granlue material in premade pouch style, such as candy, beans, nuts, dry fruits, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Touch Screen: China Kinco 7 inches corlor touch screen;
Languages: Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);
PLC: Japan Panasonic;
Cylinder: Taiwai Airtac (Can be upgraded to Japan SMC);
Vacuum Generator: China Airbest (Can be upgraded to Vacuum Pump);
Vacuum Component: Japan SMC;
Modular Control System For Vacuum Pressure: Japan SMC;
Modular Control System For Temperature: China YUDIAN;
Electrical Component: Schneider / Omron;
Safety Key Interlock Switch;
The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;
The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).
The machine stops running when the safety key interlock switch is pulled out;
No bag prompting function;
Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag;
Positioning (anti-dropping) function of hopper;
Warning function of cartridge heater fault ;
Warning function of cylinder fault.
Warning function which air pressure is not up to standard.
Easy to operate and easy to replace the bag / The machine is suitable for a variety of bag types;
Low maintenance cost / Modular replacement of the parts;
Certificate of Conformity.
Bag Material: Multilayer Composite Premade Bag(e.g.: PET/PE)
Bag Type: 3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type: Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
Size Range: 80mm≤W≤300mm 100mm≤L≤400mm
Sealing Type: Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width: 10mm (5--20mm can be customized)
Voltage: 220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure: 0.65Mpa
Air Consumption: 0.3m³/min (Standard machine, no additional function)
Body Dimension: 1770*600*1260mm
Packing Dimension: 1860*710*1650mm (Export non-fumigation wooden case)
