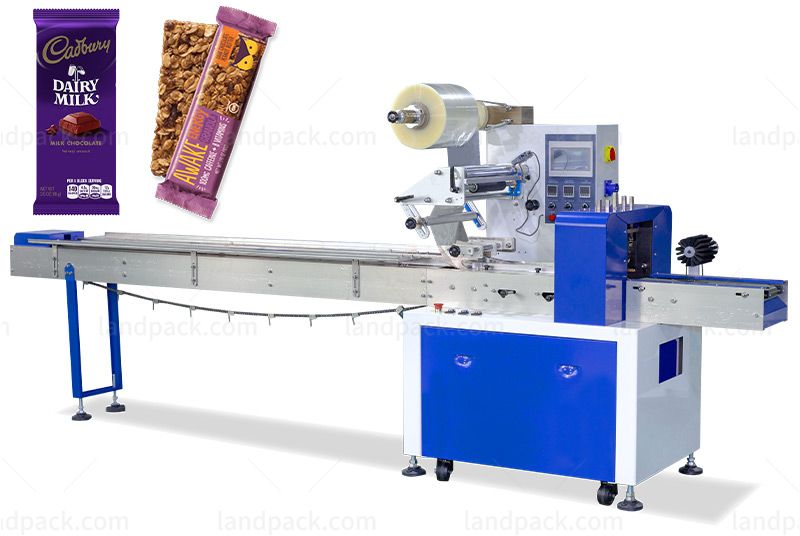

Chocolate Packing Machine | Chocolate Wrapping Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Application: Suitable for packaging various kinds of regular objects like biscuits, pies, chocolates, bread, instant, noodles, moon-cakes, drugs, daily applications, industrial parts, paper boxes, tray. etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Chocolate Packing Machine | Chocolate Wrapping Machine

 Dual frequency conversion control, Bag length can be set and cut in one step,saving time and film.

 Interface features easy and quick setting and operation

 Self failure diagnosis, clear failure display

 High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

 Temperature independent PID control, more suitable for packaging different materials

 Positioned stop function, without sticking knife or wasting film.

 Simple driving system, reliable working, convenient maintenance.

 All control is realized through software,easy for function adjusting and technical upgrade.

ModelLP-250BLP-350BLP-450BLP-600BLP-700BLP-800BLP-900B
Film widthMax250mmMax350mmMax450mmMax600mmMax700mmMax.800 mmMax.900mm
Bag length65-190mm or120-280mm65-190mm or120-280mm150-450mm160-500mm180-600 mm210-650mm240-700mm
Bag width 30-110mm 50-160mm50-180mm100-280mm100-330 mm120-350mm150-400mm
Product heightMax.40mmMax.40mmMax.75mmMax.110mmMax.110 mmMax.130 mmMax.150mm
Film roll diameter Max.320mm
Packaging rate40-230 bags/min40-180bags/min30-150Bags/min20-150 bags/min20-130 bags/min20-120bag/min20-100 bags/min
Power220V,50/60Hz,2.4kw220V,50/60Hz,2.6kw220V,50/60Hz,2.8kw220V,50/60Hz,2.8kw220V,50/60Hz,2.8kw220V,50/60Hz,4.5kw220V,50/60Hz,4.5kw
Machine size(L)3770*(W)720*(H)1420mm(L)4030*(W)770*(H)1420mm(L)4030*(W)820*(H)1420mm(L)4030*(W)970*(H)1500mm(L)4030*(W)980*(L)1500mm(L)4100*(W)1170*(H)1550mm(L)4300*(W)1270*(H)1550mm
Machine qualityAbout 500kgAbout 580kgAbout650kgAbout680kgAbout720kgAbout800kgAbout 850kg
Remarksoptional air filling device)/optional angle folding)
Film material)OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

After receiving your inquiry,We will send you the quotation as soon as possible.
