Application:
It is suitable for automatic packing for grain and solid food, such as coffee beans, beans, nuts, dry fruits, candy, cereal, chocolate, biscuits, peanuts, capsules, seeds, chemicals, sugar, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Z type material conveyor with belt drive coffee beans.

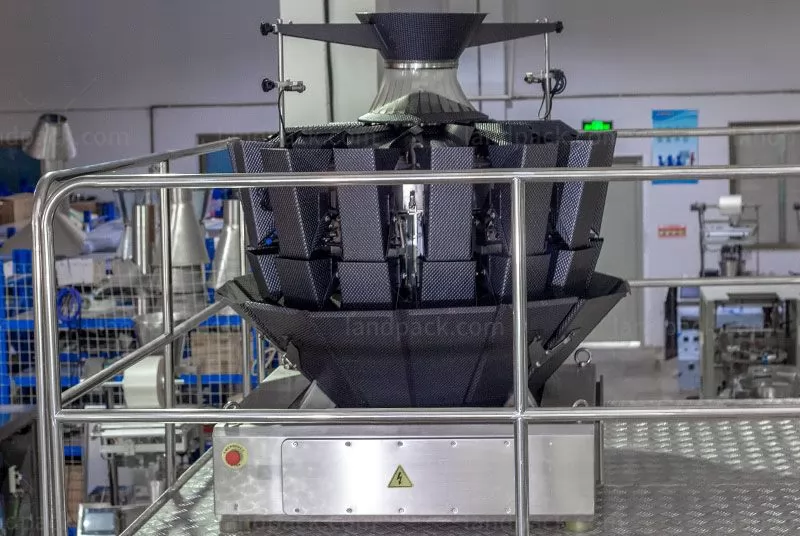

2. Multi heads weigher comes with a rotary feeder, which is easy for feeding coffee beans.
3. The surface of the weigher is sprayed with Teflon to avoid sticking.
4. Reject the device for unqualified weighing.
5. Rotary doypack machine has the functions of no bag no filling & no filling no sealing.

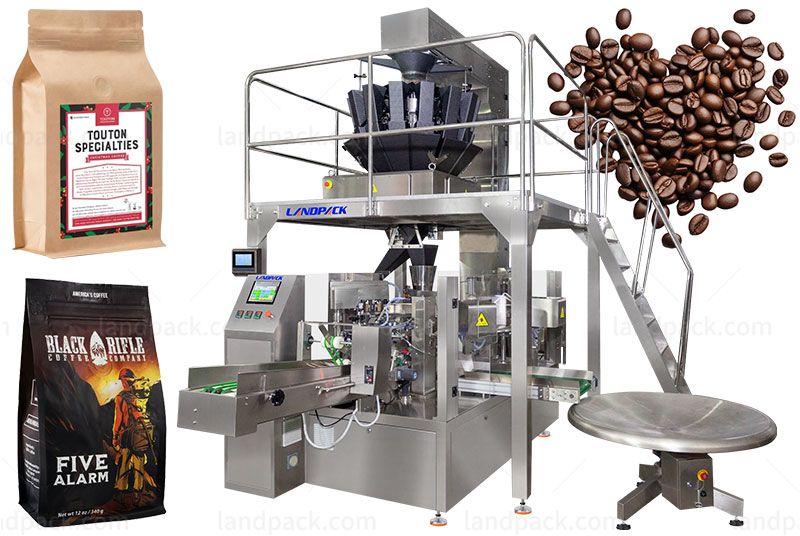

Composition Structure:
1. Z type elevator
2. Multi heads weigher with rotary feed platform
3. Reject the device for unqualified weighing
4. Horizontal bag giving station
5. Date printer
6. Zipper opener
7. Bag opener
8. Filling hopper
9. Sealing
10. Forming

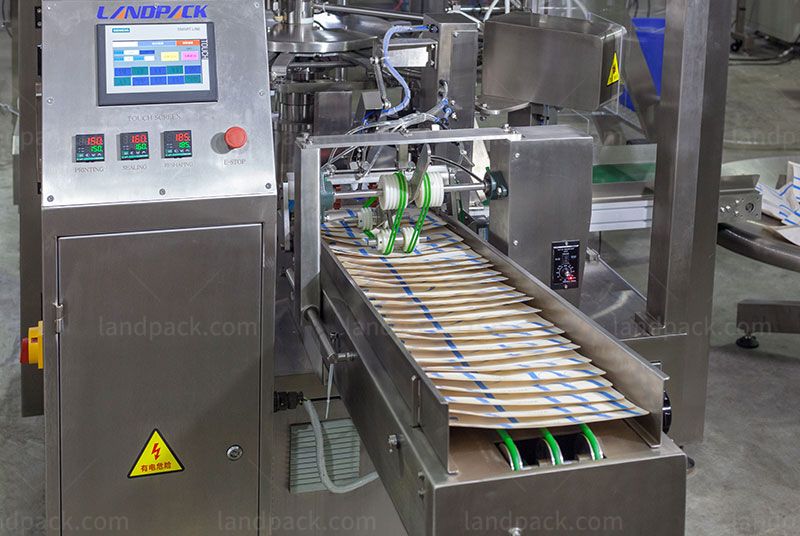

11. Conveyor for finished bags
| Model | LD-8200/LD-8250 |
| Packing material | All types of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouches with or without spouts, paper bags, flat pouches, stand-up pouches, zipper pouches, spout pouches, m gusset pouches, paper pouch, aluminum foil pouch, etc. |
| Size | W: 70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60bag/min (speed is determined by the product filling quantity) |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm*1570mm*1700mm (L*W*H) |
| Workflow | giving bag→coding→opening→filling 1→filling 2→auxiliary→exhaust→heat sealing→forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
