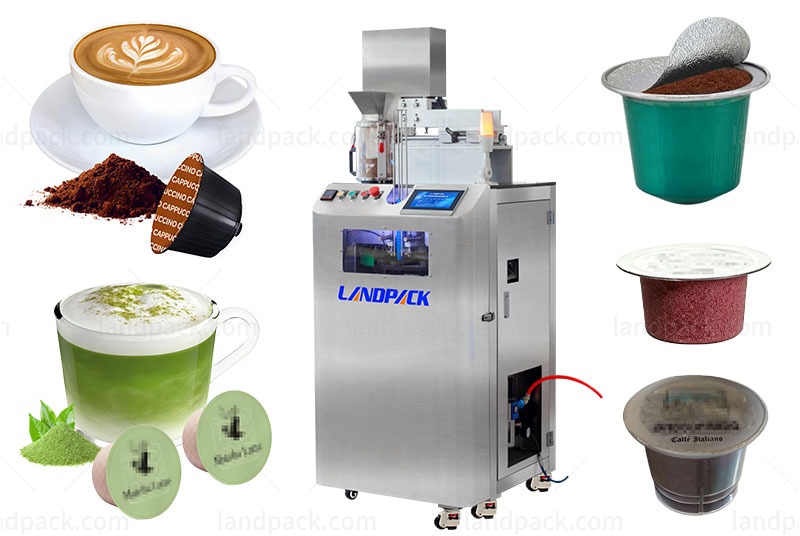

Automatic Rotary Coffee K-Cup Capsule Filling and Sealing Machine

Application:
This coffee capsule packing machine fills ground coffee, instant coffee powder, flavored coffee blends, and similar powders into K-Cup-style capsules. The compact rotary table handles cup feeding, detection, powder dosing, rim cleaning, foil placement, sealing, coding, and output. This coffee filling and sealing machine runs at 20–50 capsules/min, depending on the filling weight, capsule size, and coffee condition.

Package Type:

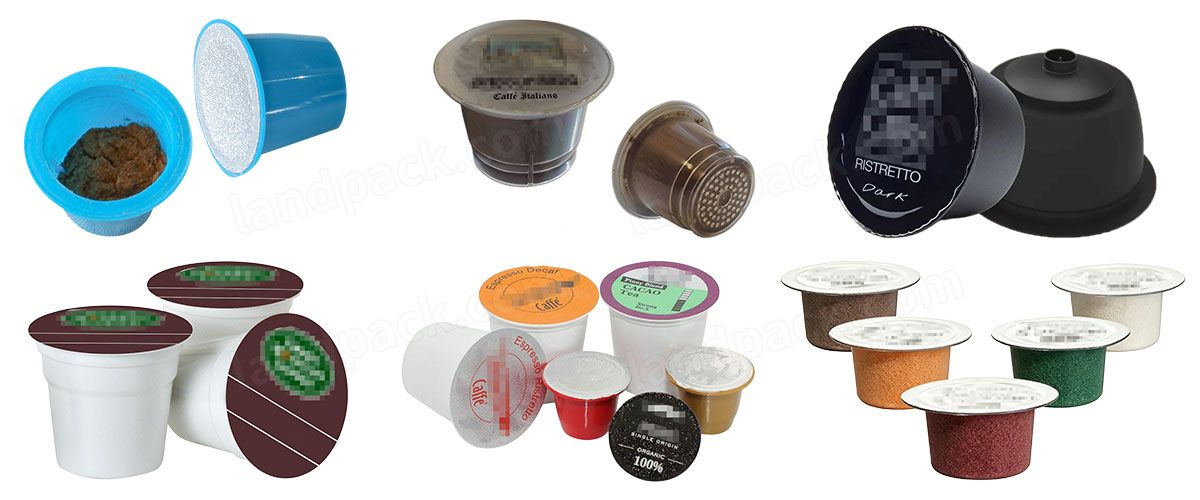

The machine handles K-Cup, capsules or cups with pre-cut aluminum foil lids. Custom cup holders and feeding parts can match different capsule diameters, heights, filling volumes, and foil sizes. The final configuration depends on the customer’s capsule sample and sealing material.

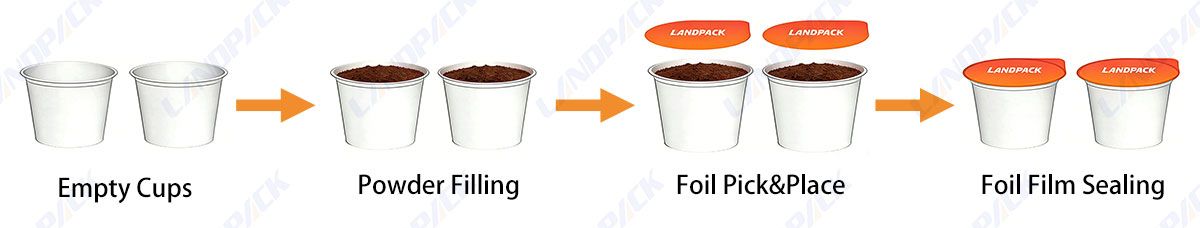

Workflow:
1. Empty Cup Feeding, 2. Cup Detection, 3. Powder Measuring, 4. Coffee Filling, 5. Nitrogen Flushing, 6. Rim Cleaning, 7. Foil Feeding, 8. Heat Sealing, 9. Optional Coding, 10. Finished Capsule Output

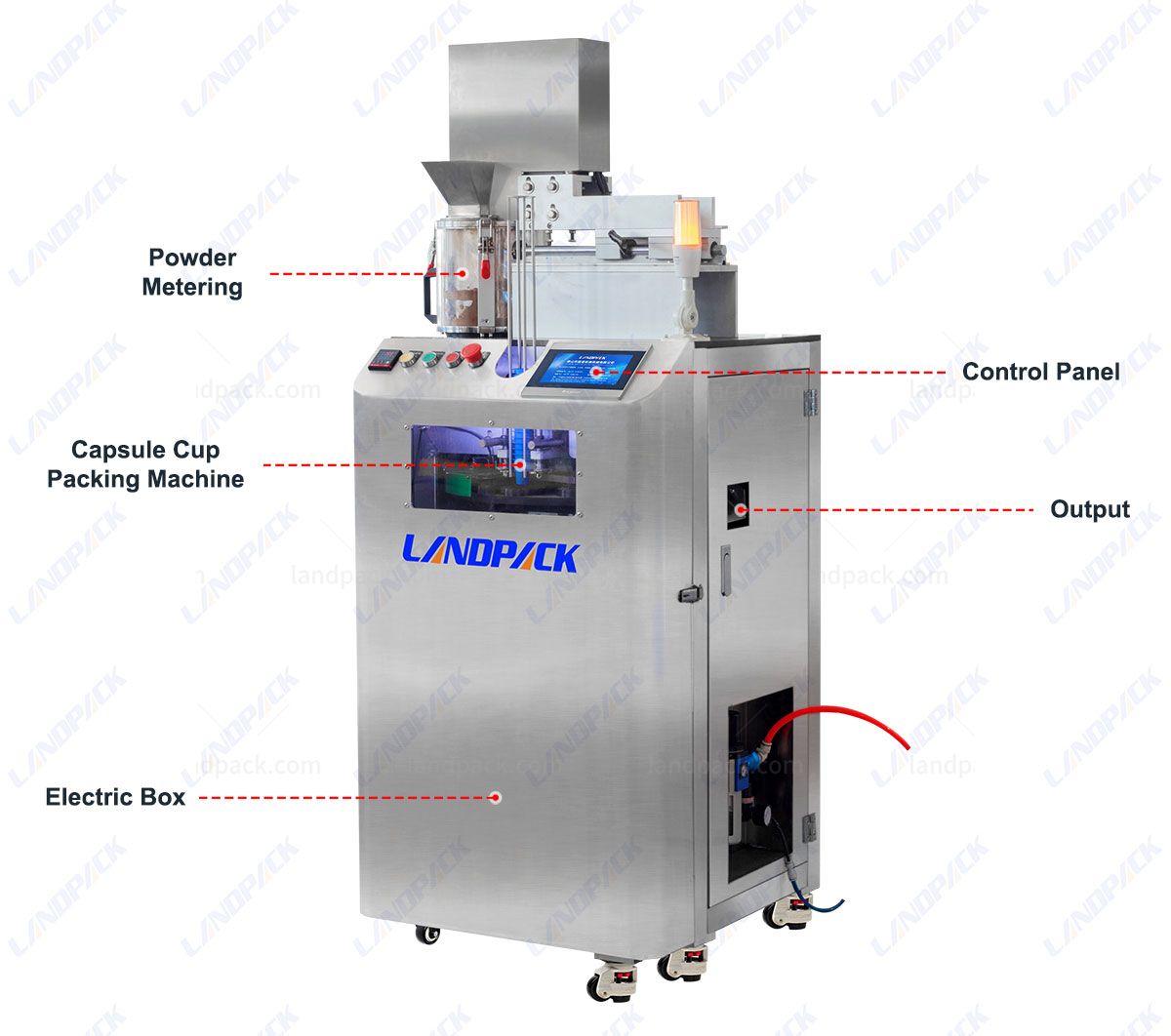

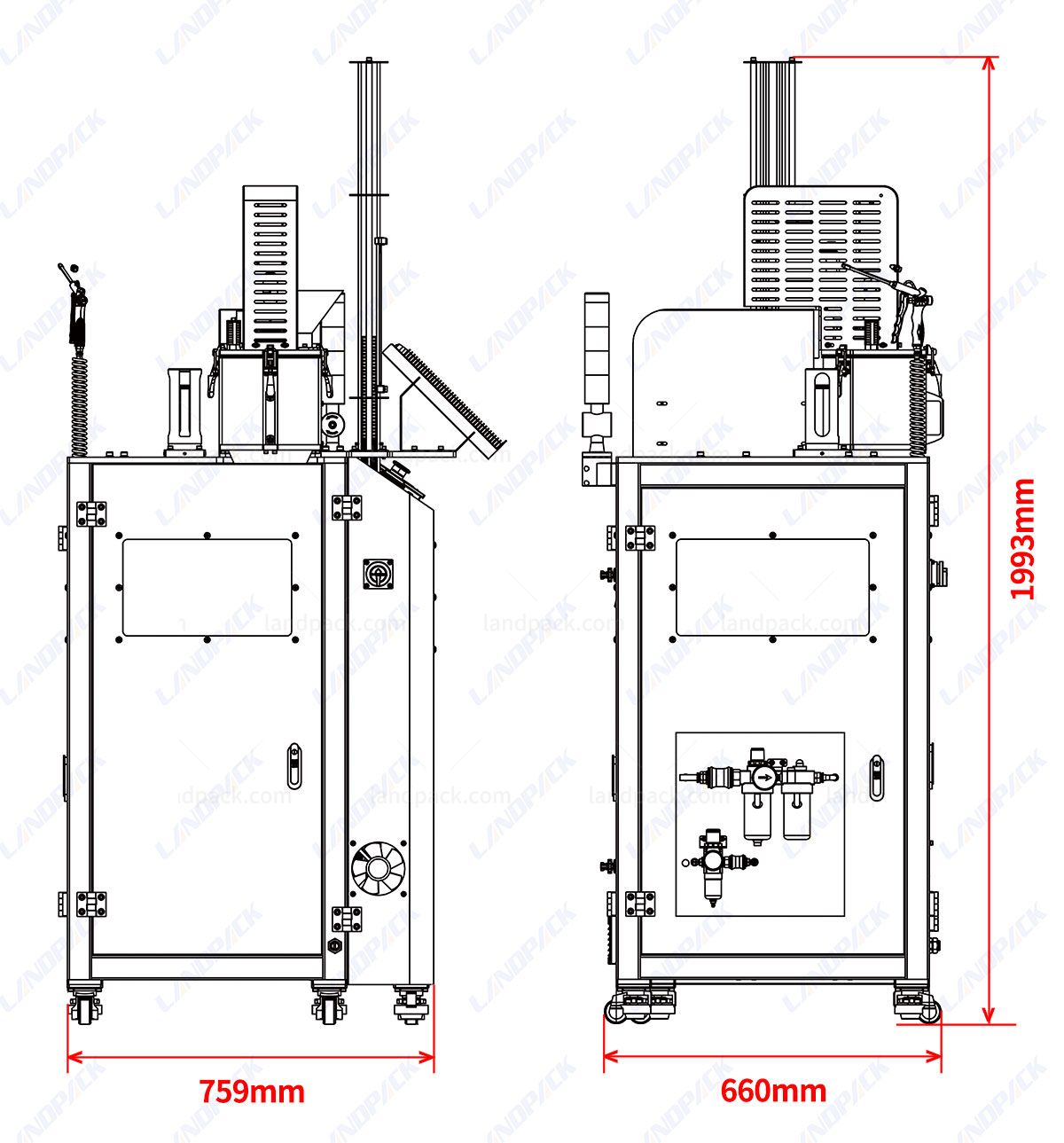

Machine Structure Description:

Feature:
1. Compact rotary-table design suits small factories, test production, and new coffee brands
2. Cup magazine feeds empty capsules one by one
3. No-cup, no-fill control reduces loose coffee powder inside the machine

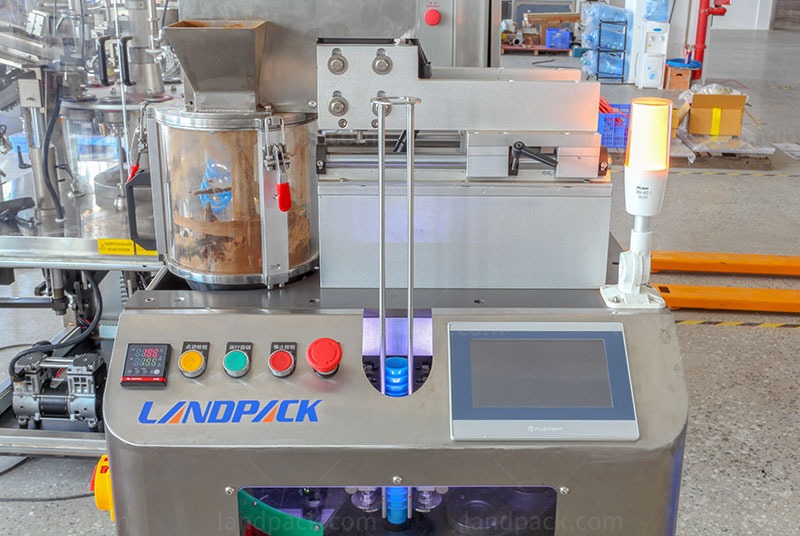

4. PLC and touchscreen control filling weight, speed, and station settings

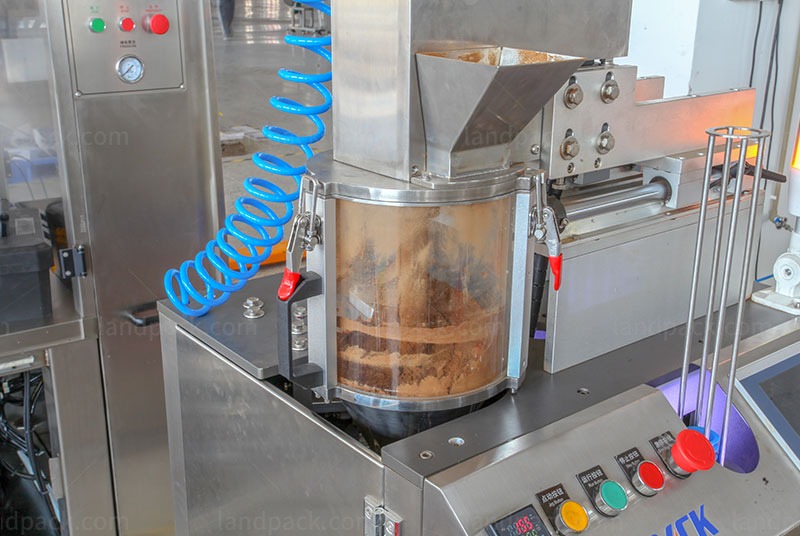

5. Stepper-motor auger adjusts the coffee dose for different capsule weights
6. Nitrogen flushing helps limit oxygen contact during filling
7. Air blowing and vacuum cleaning remove powder from the capsule rim
8. Automatic foil feeder places pre-cut lids before sealing

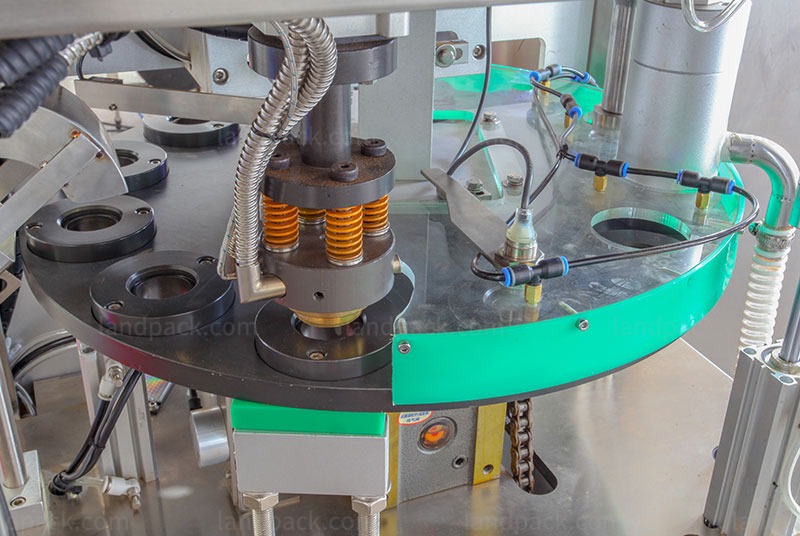

9. Heat-sealing station controls temperature and sealing time
10. Optional laser or inkjet coder adds production and batch information
11. Transparent windows allow operators to check machine movement and material levels
12. Casters make the machine easier to move for cleaning or line adjustment
