Application:
This Box Cartooning Machine is a high-performance packaging solution widely adopted by global distributors and manufacturers seeking efficient end-of-line automation.
Designed for flexible bag-in-box operations, this system handles bag products with care, first placing them into boxes, then automatically arranging and packing them neatly into outer cartons. Powered by a full-servo drive system, it ensures accurate, stable performance at speeds of up to 60–70 cases per minute. The machine features a Norson glue dispenser, trusted for its durability and consistent sealing across diverse production environments. Its robotic arm carton packer offers strong adaptability, accommodating various industries with different product sizes and packing patterns such as food(snacks, cookies, nuts, oatmeal, etc), beverage(juice, energy gel, etc), cosmetics(face cream, essence, etc), and daily-use goods(tooth paste, washing powder, stationery, etc).
With a customizable layout to suit larger or uniquely shaped products, this solution helps international partners streamline packaging, reduce labor, and meet local market demands with confidence.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Full Servo Drive Case Packer: Provides precise control with speeds of 60-70 cases per minute for efficient packing.
2. Norson Glue Dispenser: Known for its stable and durable operation in industrial applications.

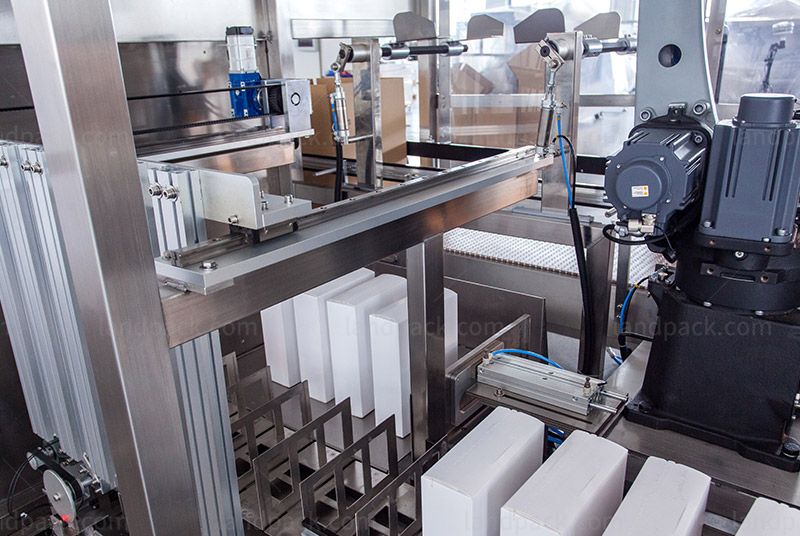

3. Robotic Carton Packer: Offers strong compatibility to accommodate various product placement requirements.
4. Customizable Packaging Line: Designed to handle larger product dimensions, catering to specific packaging needs.

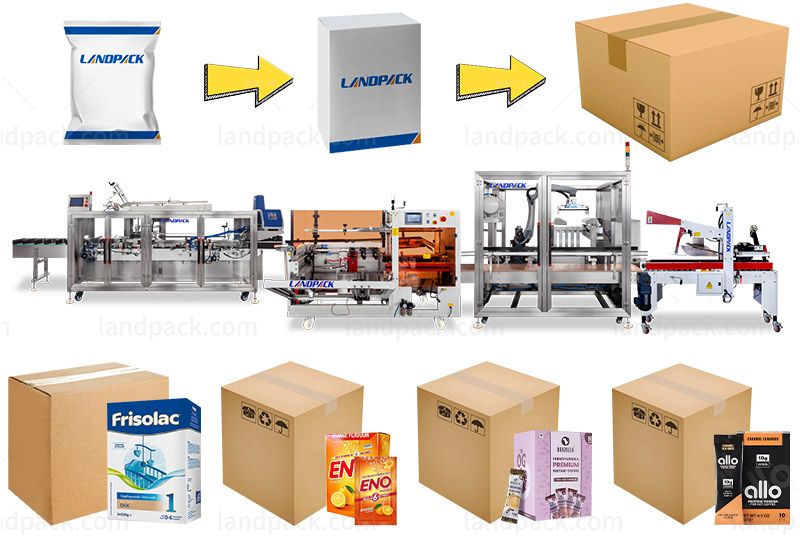

Workflow:
1. Speed up the conveyor belt
2. Product sorting belt

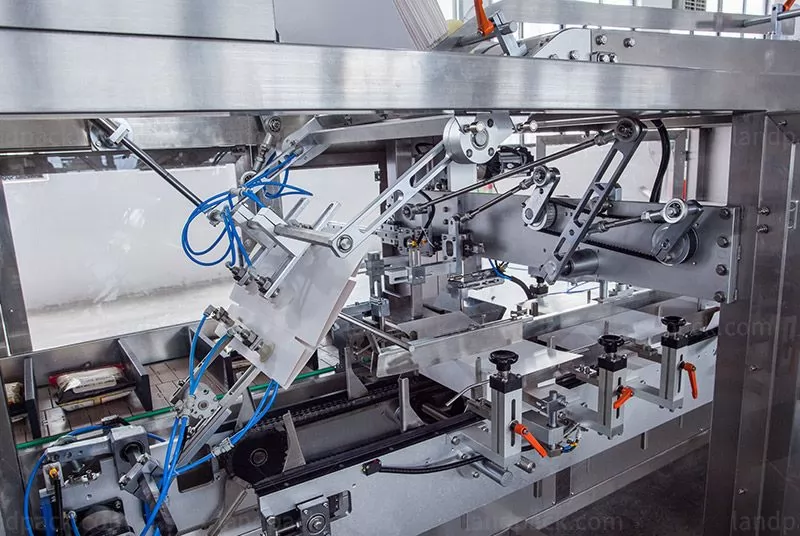

3. Full servo drive case packer (shaping - input product- sealing)
4. Glue dispenser
5. Turn direction conveyor belt
6. Carton erector

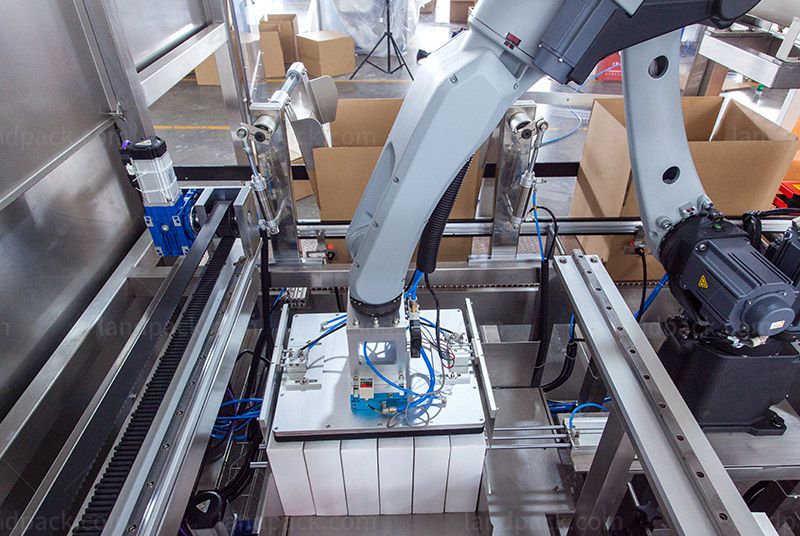

7. Carton packer (Robot)
8. Carton sealer
| Box Case Sealer Sealing Machine | |||||
Model | LD-ZHJ300 | ||||
Power supply | 220V, 50Hz, 0.75kW | ||||
Air pressure requirement | 0.5-0.8MPa | ||||
Machine material | Aluminum + stainless steel | ||||
Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
Working speed | 30-50 cartons/min | ||||
Machine size | 4008*1354*1633 mm | ||||
Weight | About 1500kg | ||||
| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||
| Carton Box Case Sealer | |||||
Voltage | 220V, 60HZ | ||||
Table height | 620-900mm | ||||
Tape | W: 48-79mm | ||||
Carton size | L: 200-600*W: 150-500*H: 150-500mm | ||||
Machine weight | 165KG | ||||
After receiving your inquiry,We will send you the quotation as soon as possible.
