Application:
This automatic cartoning line for bagged granule consists of a vertical packaging machine set, a checkweigher, a one-to-two intelligent cartoning robot, a case erector, a case sealer, and a palletizing robot.
It is suitable for the automatic cartoning and palletizing of a wide range of products, including puffed snacks, cereal, grains, sunflower seeds, nuts, dried fruits, pet food, plant seeds, and frozen food.
Kindly Reminder:
We have an experienced team of R&D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

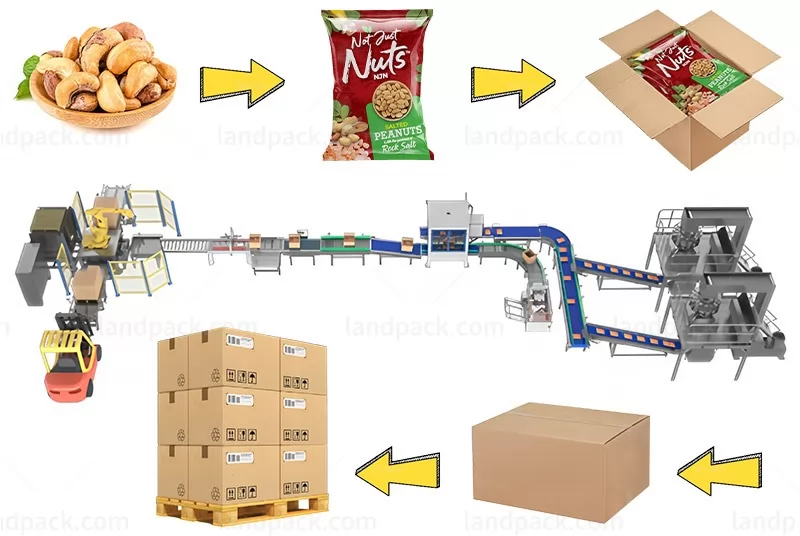

Packaging System Composition:
Features:
1. Full Servo Drive Case Packer: Provides precise control with speeds of 60-70 cases per minute for efficient packing.
2. Norson Glue Dispenser: Known for its stable and durable operation in industrial applications.
3. Robotic Carton Packer: Offers strong compatibility to accommodate various product placement requirements.
4. Customizable Packaging Line: Designed to handle larger product dimensions, catering to specific packaging needs.
5. Integrated Vision System: Enables accurate product positioning and orientation recognition, enhancing packing precision and reducing error rates in high-speed operations.
6. Intelligent Line Synchronization: Ensures seamless coordination between upstream and downstream equipment through centralized PLC control, optimizing overall production efficiency and minimizing downtime.

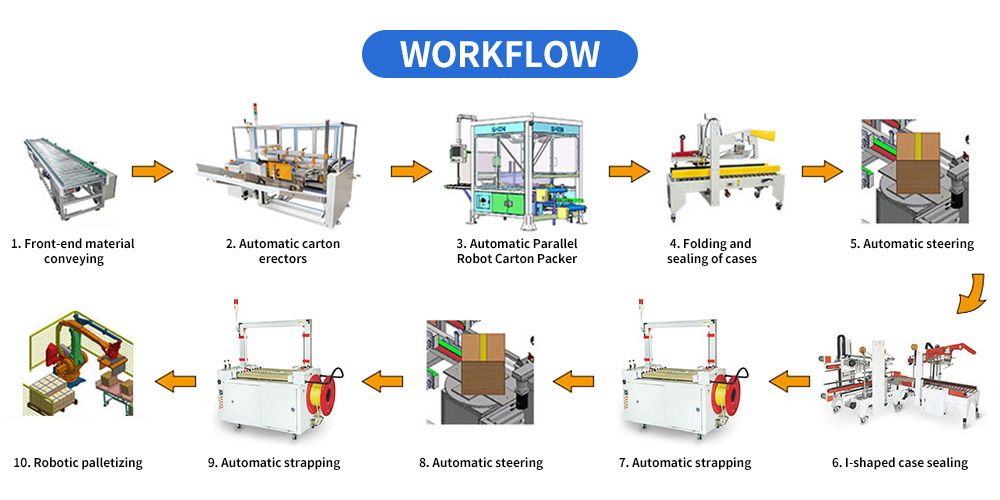

Workflow:
1. Front-end material conveying
2. Automatic carton erectors

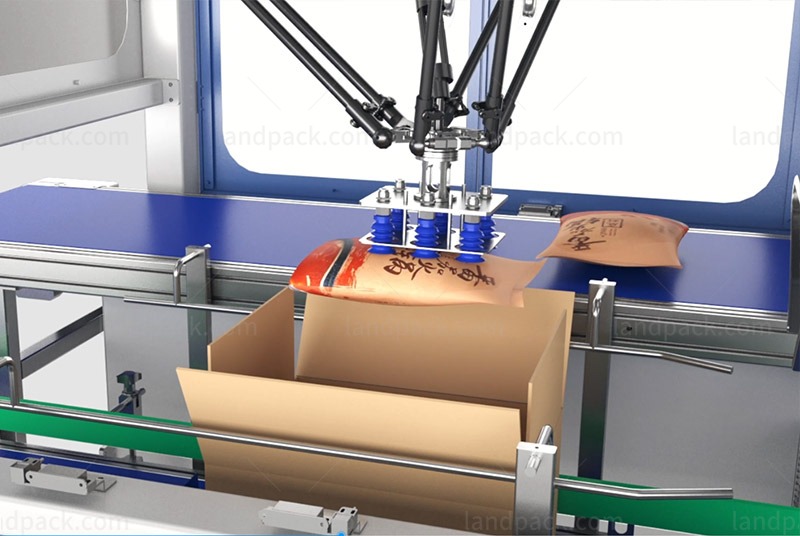

3. Automatic Parallel Robot Carton Packer

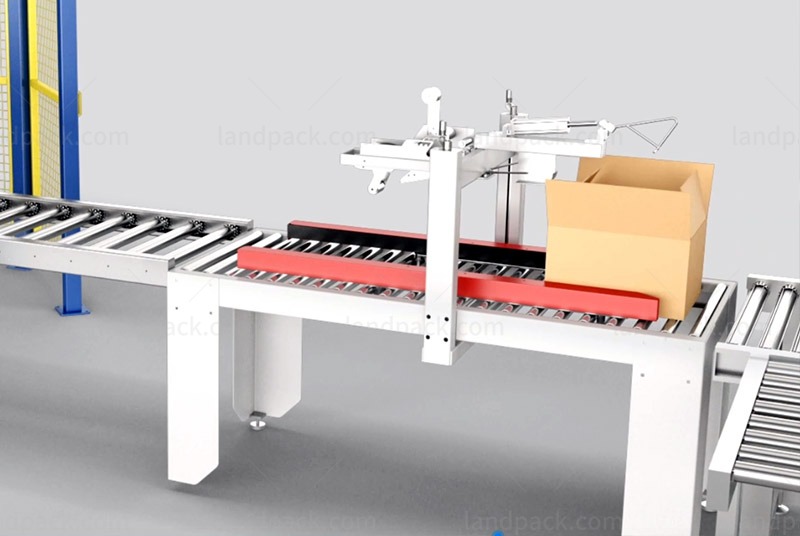

4. Folding and sealing of cases
5. Automatic steering
6. I-shaped case sealing
7. Automatic strapping
8. Automatic steering
9. Automatic strapping

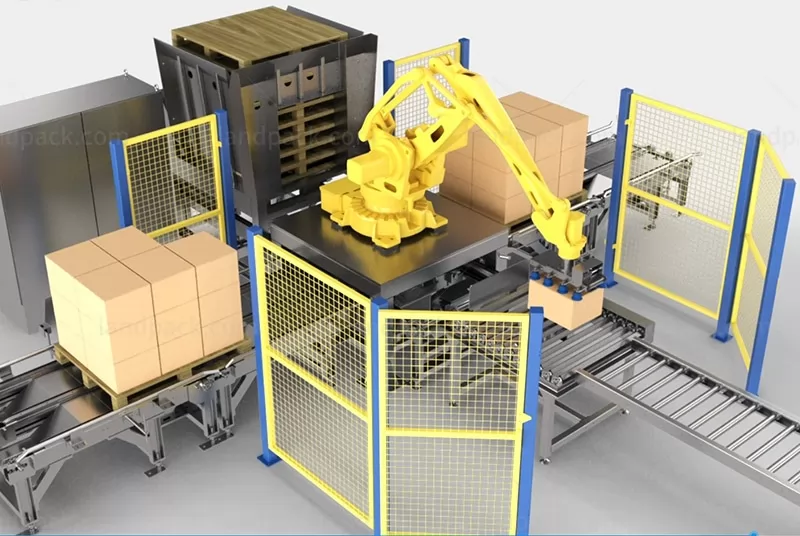

10. Robotic palletizing
| Box Case Sealer Sealing Machine | |||||
Model | LD-ZHJ300 | ||||
Power supply | 220V, 50Hz, 0.75kW | ||||
Air pressure requirement | 0.5-0.8MPa | ||||
Machine material | Aluminum + stainless steel | ||||
Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
Working speed | 30-50 cartons/min | ||||
Machine size | 4008*1354*1633 mm | ||||
Weight | About 1500kg | ||||
| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||
| Carton Box Case Sealer | |||||
Voltage | 220V, 60HZ | ||||
Table height | 620-900mm | ||||
Tape | W: 48-79mm | ||||
Carton size | L: 200-600*W: 150-500*H: 150-500mm | ||||
Machine weight | 165KG | ||||
After receiving your inquiry,We will send you the quotation as soon as possible.
