Application:

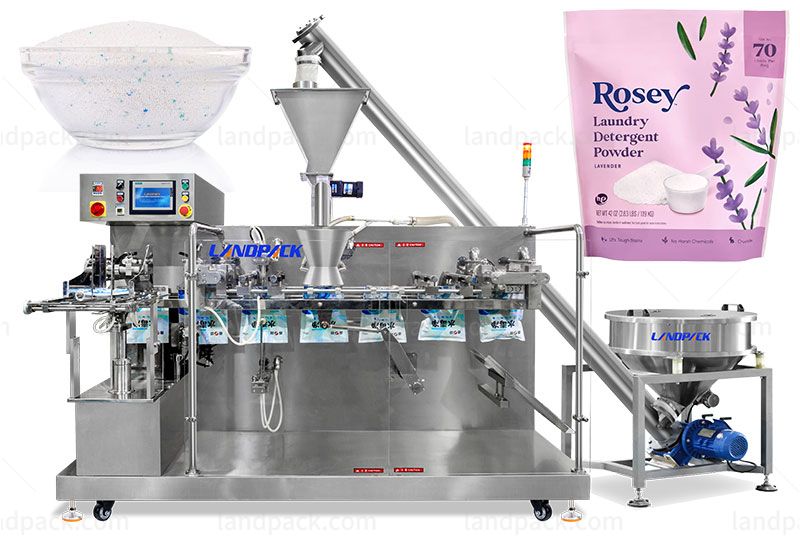

Automatic Dish Wash Powder Horizontal Doypack Packing Machine is suitable for automatic packing powder: milk powder, protein powder, premium whey powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

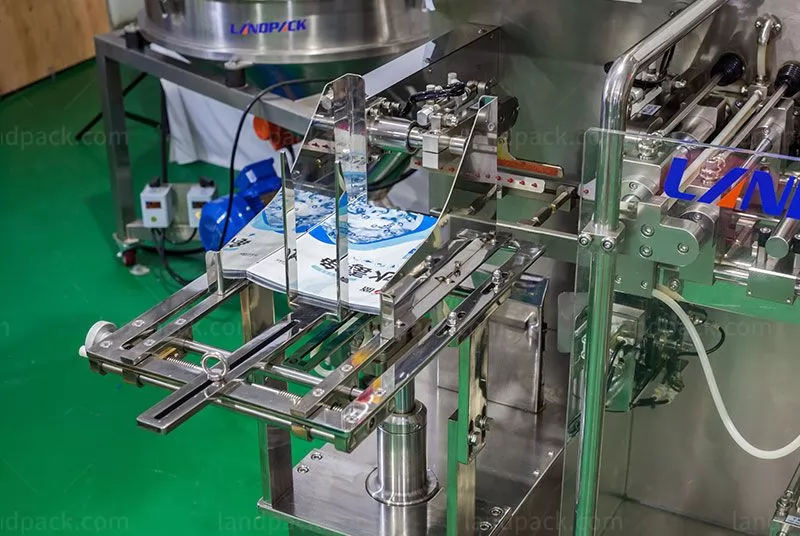

1. The bag feeder is easy to place the bags with pressing-bag accessory.
2. It's with imported gravity sensor to read whether there is product there. No product, not seal to save bag.
3. With color touch screen for simple operation.
4. The machine adopts stainless steel 304 appearance, and some accessories are processed with acid and salt-resistant anti-corrosion treatment layer.
5. Majority of accessories will use 304 stainless steel and aluminium oxide;
6. Optional accessories: inkjet printer, thermal printer, exhaust air, punching and etc.
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
