Automatic Multi-Head Linear Weigher Detergent Powder Gusset Bag Filling and Packing Machine

Application:

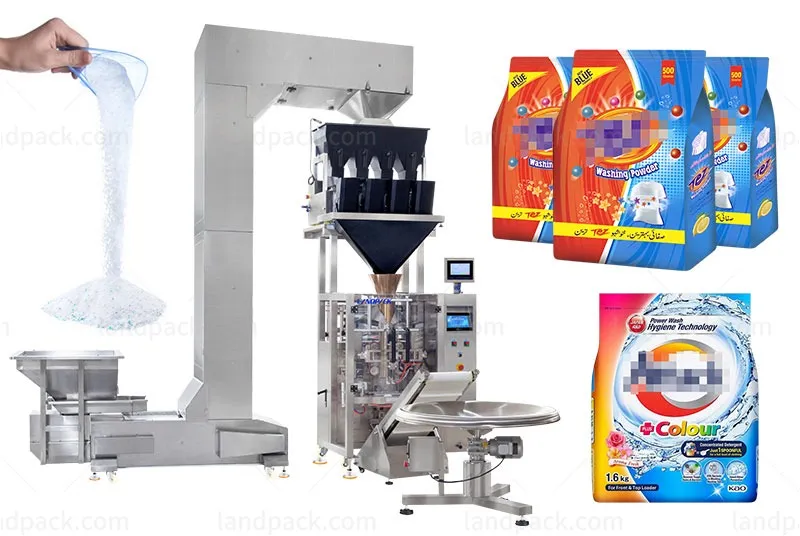

This detergent powder filling packing machine packs washing powder, laundry detergent powder, dishwasher powder, cleaning powder, bleaching powder, and other free-flowing cleaning products. A Z-type elevator feeds the material to the four-head linear weigher, while the LD-420AS forms, fills, gussets, seals, and cuts each bag from roll film. The configured line handles about 50g–1kg packs and typically runs up to 60 bags/min with detergent powder.

Package Type:
The washing powder packing machine produces back-seal gusset bags from BOPP roll film. The side folds give detergent packs more internal space than a standard pillow bag and work well for medium-size retail packs. The machine can also run compatible printed or plain heat-sealable laminated films according to the detergent formula and bag specification.

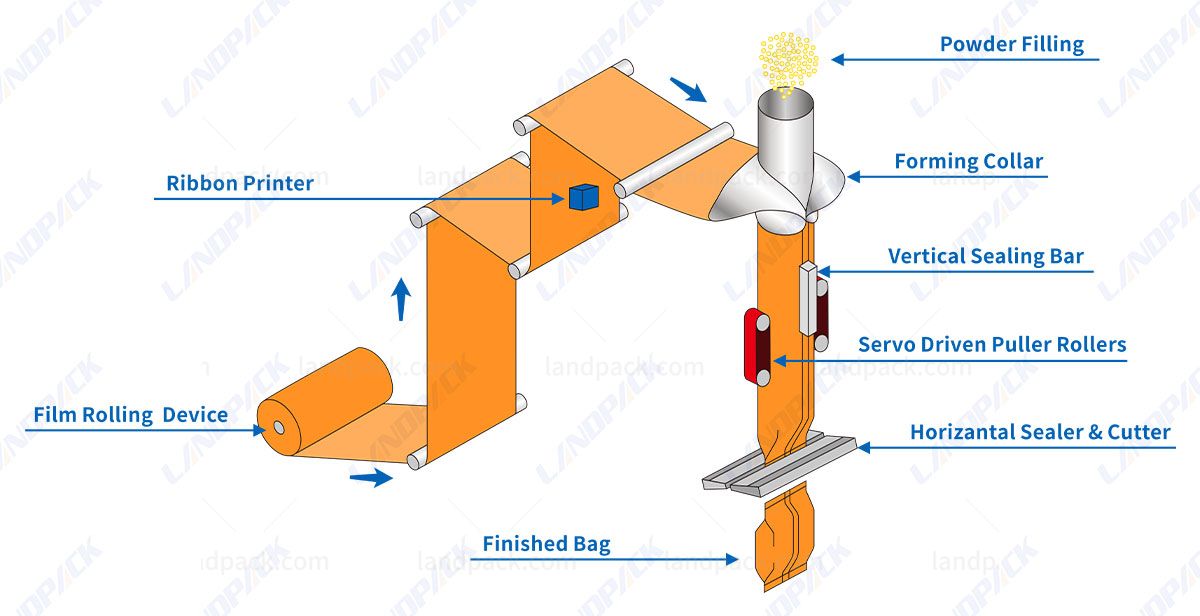

Workflow:
1. Z-Type Feeding, 2. 4-Head Linear Weighing, 3. Roll Film Feeding, 4. Ribbon Date Printing, 5. Bag Forming, 6. Detergent Filling, 7. Gusset Forming, 8. Back Sealing, 9. Horizontal Sealing and Cutting, 10. Take-Away Conveying

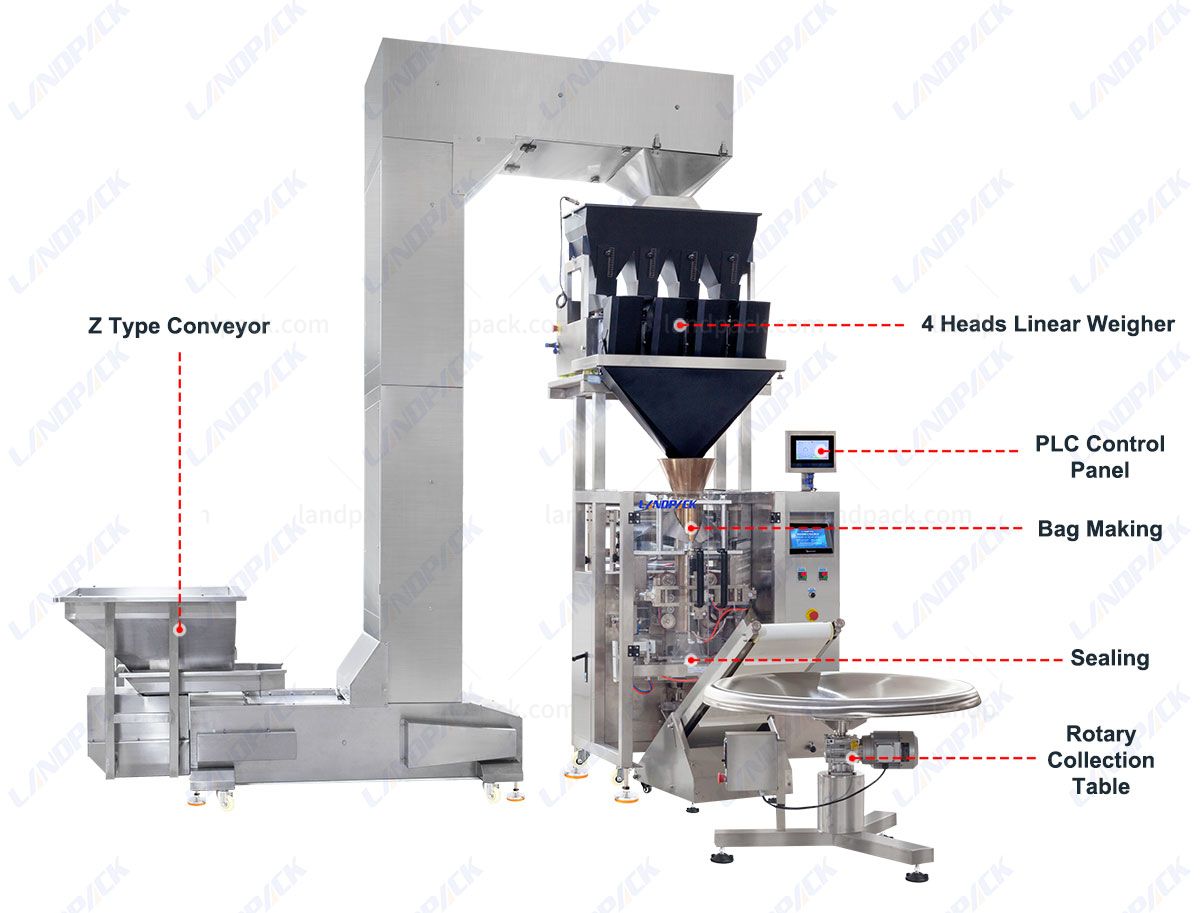

Machine Structures:

Features:

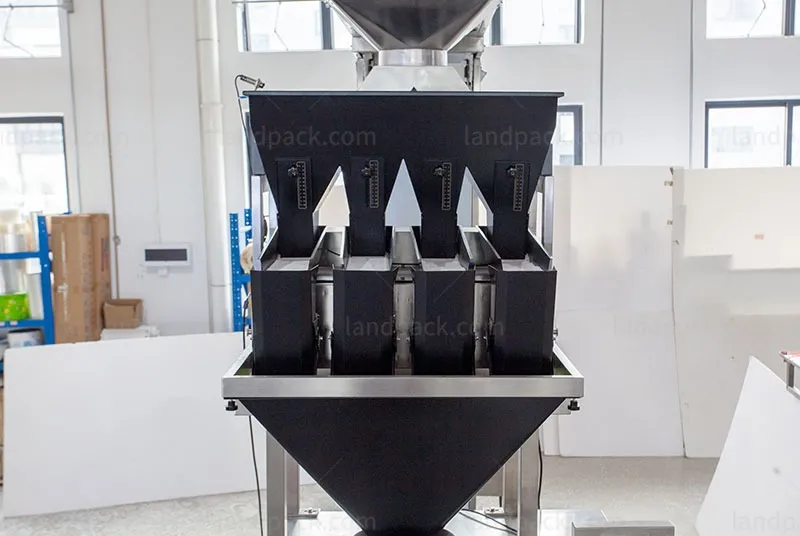

1. Four-head linear weigher portions detergent powder by target weight
2. Separate weighing heads support different pack weights from about 50g to 1kg
3. SS316 product-contact parts handle direct contact with detergent powder
4. Teflon-coated hopper surfaces reduce powder sticking and material buildup

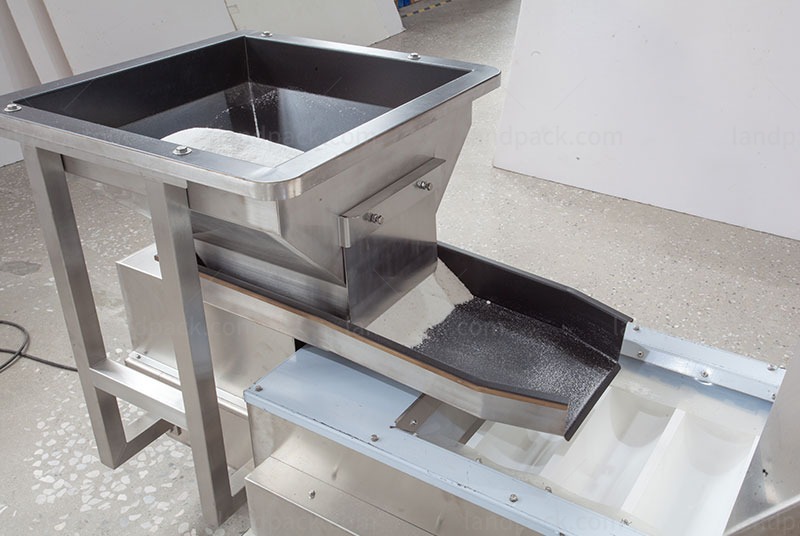

5. Z-type elevator supplies powder continuously to the weighing section

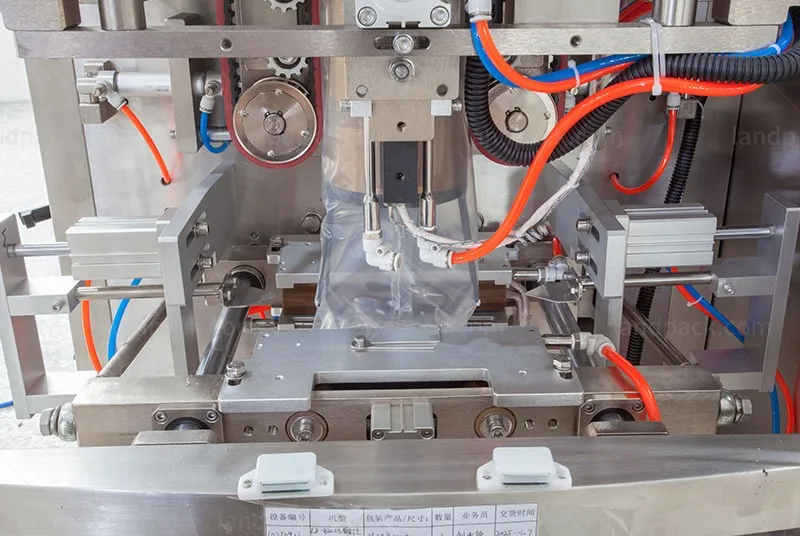

6. Gusset-forming unit makes fuller back-seal bags from BOPP roll film
7. Ribbon coder adds production date and batch information during packing
8. VFFS main machine completes forming, filling, sealing, and cutting from roll film
9. Take-away conveyor supports heavier detergent packs after sealing
10. Rotary collection table gathers finished bags before case packing
11. Control panel adjusts target weight, bag length, sealing temperature, and machine speed
