Application:
It is suitable for automatic packaging of various kinds of powder: milk,coffee, chili powder, spices,sugar, soap powder, curry powder,washing powder etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

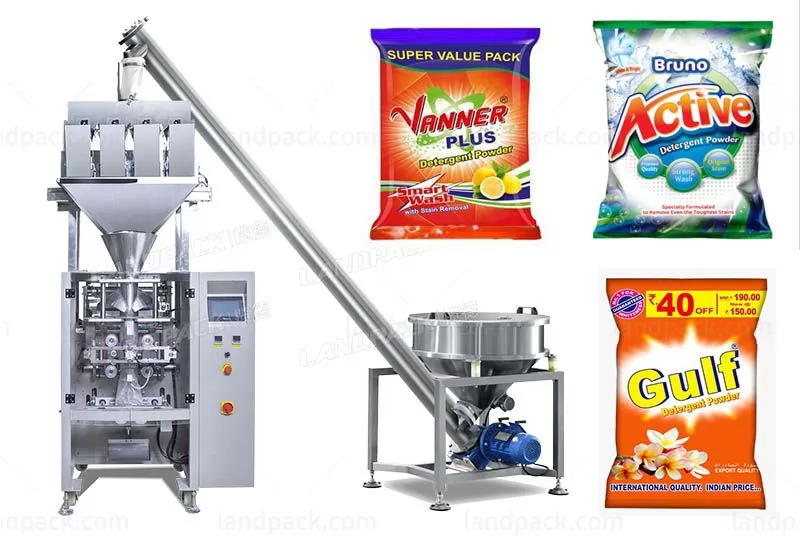

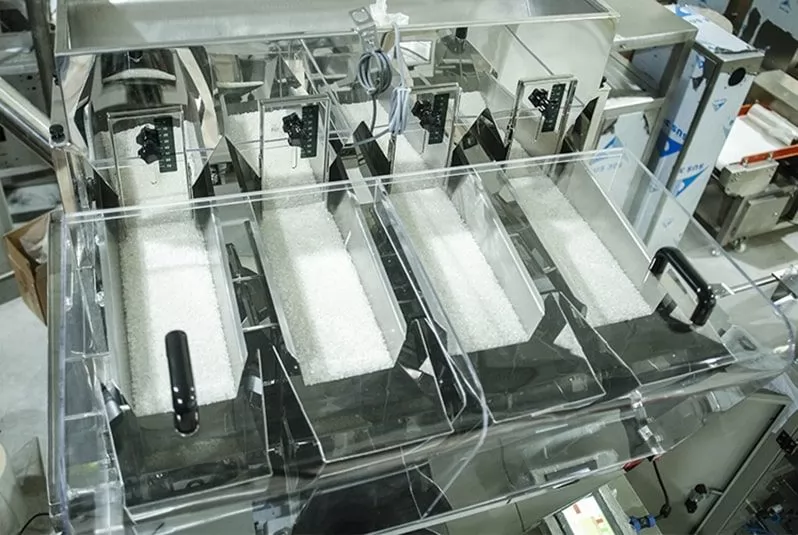

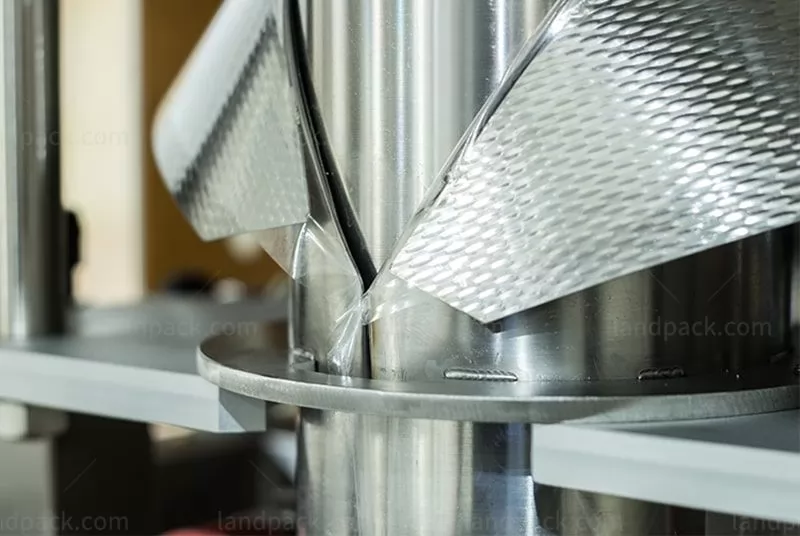

The machine can automatically complete the products measuring, conveying and feeding, filling and bag forming, date code printing, bag sealing and cutting.

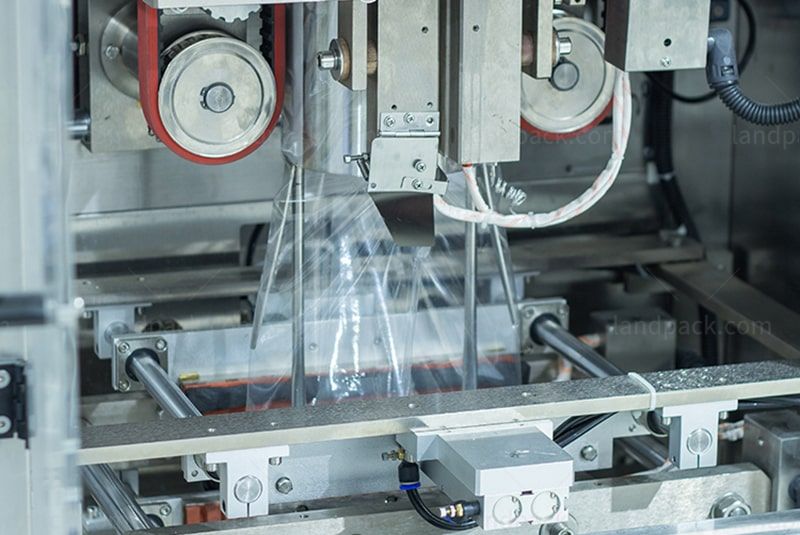

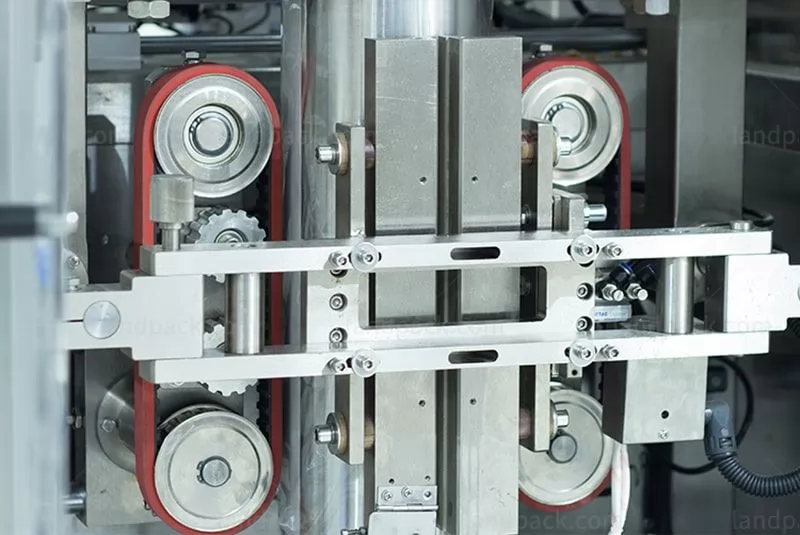

Servo motor driven heat seal film pulling system.
High sensitive fiber optic photo sensor can automatically trace color mark accurately.
PLC control system combined with touch screen, can easily set can change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
PID temperature controller monitors heat sealing temperature within ± 1 º C
| Model | LD-420 | LD-520 | LD-720 | LD-900 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L |
After receiving your inquiry,We will send you the quotation as soon as possible.
