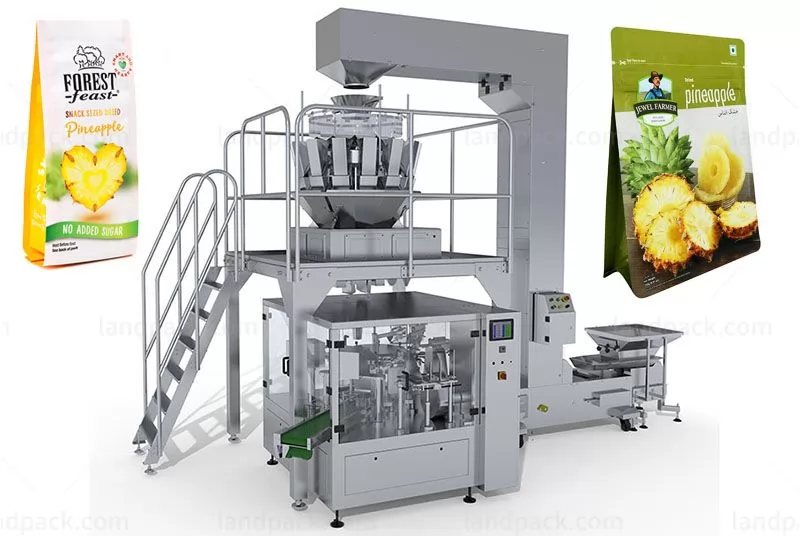

Suitable for automatic packing for grain and solid food, such as dry fruits, beans, nuts, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc. Different kinds of product with stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc,
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
1.wide applications: various state and nature of solid(granule);
2.A wide range of pouches: all kinds of pre-made pouches;
3.Easy to operate: PLC controller, HMI system makes easy operation;
4.Easy to adjust: change different pouches within 10 minutes;
5.High automation: unmanned in weighing and packing process, machine alarm automatically when failure;
6.Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost;
7.The product contact parts are adopted SUS304 to ensure sanitation and safety, meet the GMP standard;
8.Imported engineer plastic bearings, no need to oil, no contamination;
9.Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;
10.Pre-made bag packing: perfect sealing quality, upgrade the finished product.
|Packing material||3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc|
|Packing speed||40-60bag/min（speed is determined by the product filling quantity）|
|Average precision||≤ ±1%|
|Dimensions||1900mm X 1570mm X 1700mm（L*W*H）|

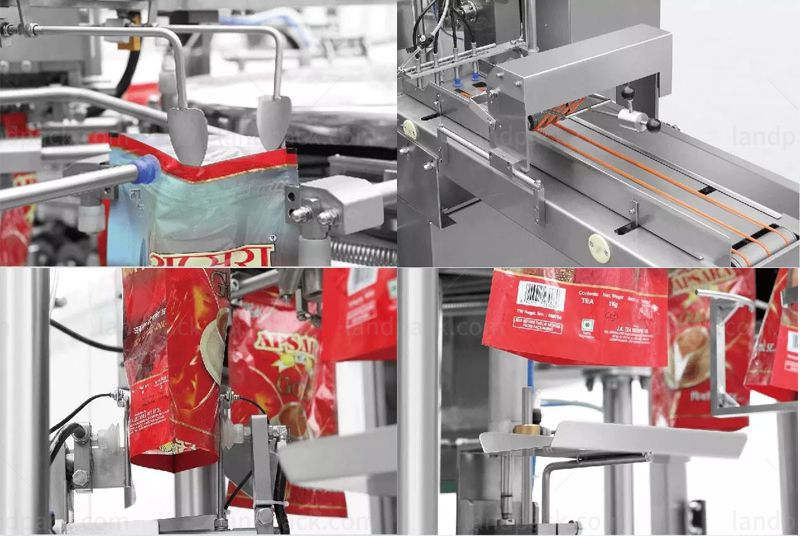

|Work flow||giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product|
|Main standard parts||1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system|
