End of Line Packaging | Automatic Case Packing Robot Packing Systems

Application:

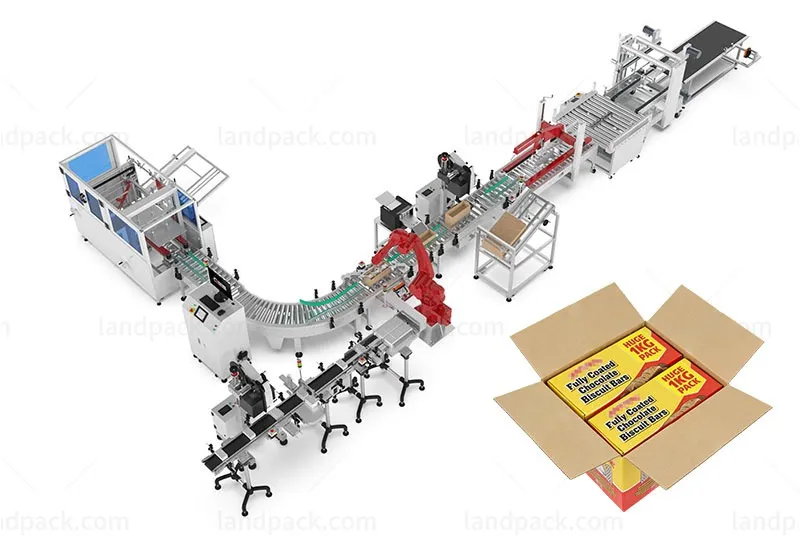

This automatic end-of-line packaging system is designed for carton erecting, robotic case packing, carton sealing, printing, labeling and palletizing operations. The line is suitable for continuous secondary packaging and logistics handling across multiple industries. It is widely used for bottled beverages, canned drinks and dairy products, cartons, pouches, trays and wrapped products, food products such as snacks, sauces and frozen foods, pharmaceutical and healthcare products, cosmetic and personal care products, household chemical and daily commodity products.

Package Type:
Suitable for corrugated cartons, shipping cases, display cartons and taped boxes used in secondary packaging applications. Supports various packing layouts for bottles, cans, pouches, trays, bags and boxed products. Carton dimensions and palletizing patterns can be adjusted according to production requirements.

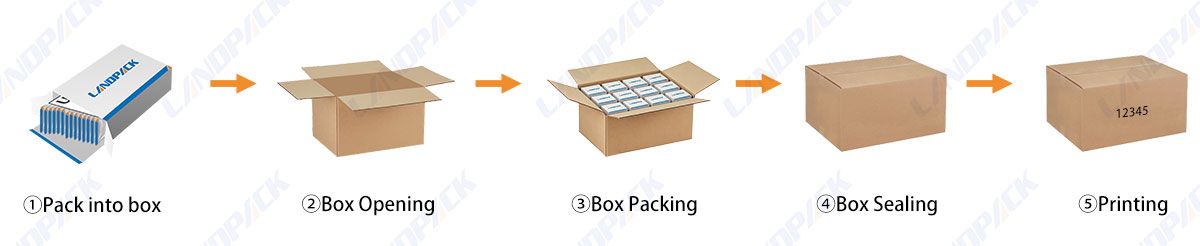

Workflow:
1. Pack into box → 2. Box Opening → 3. Box Packing → 4. Box Sealing → 5. Printing

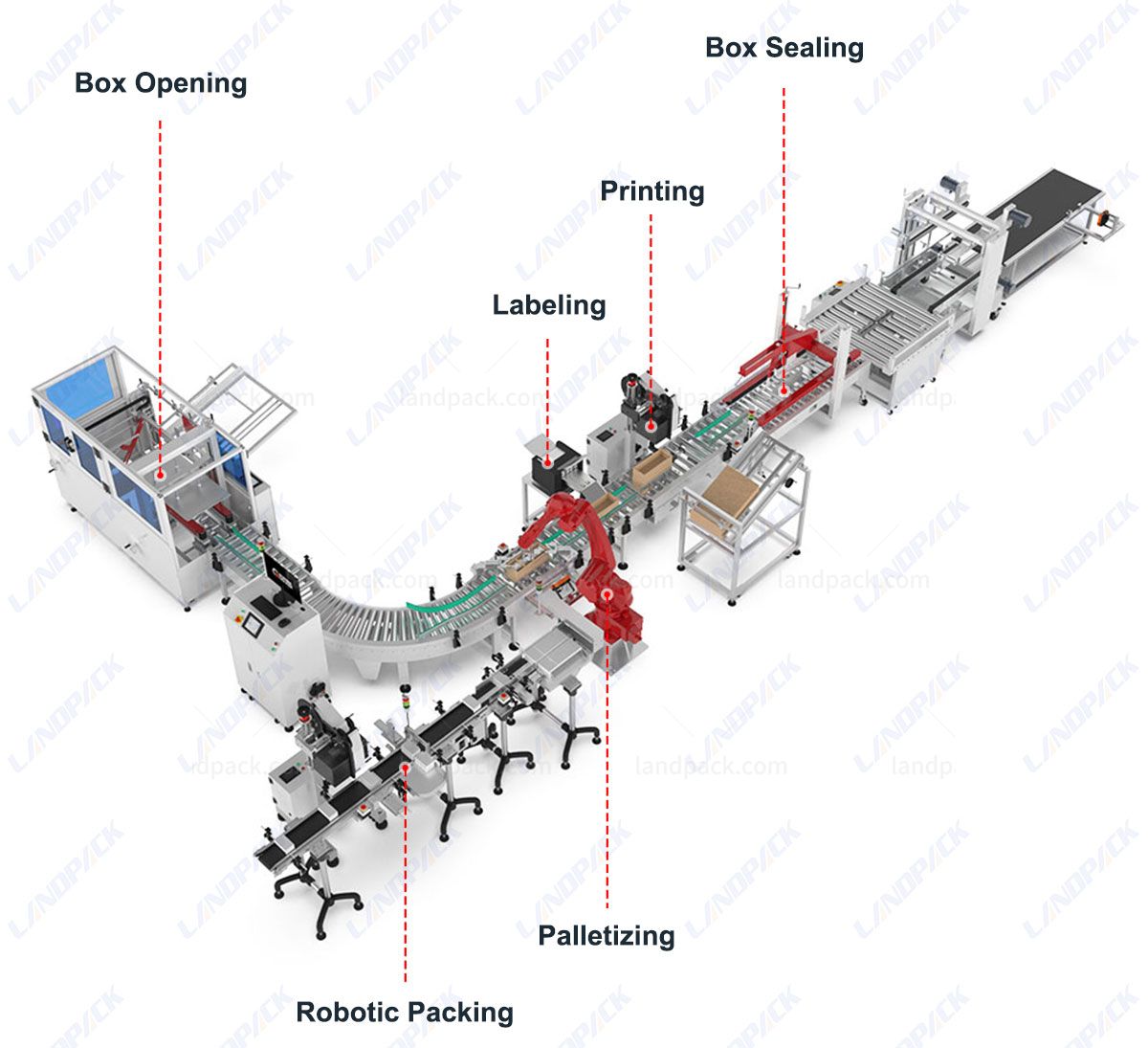

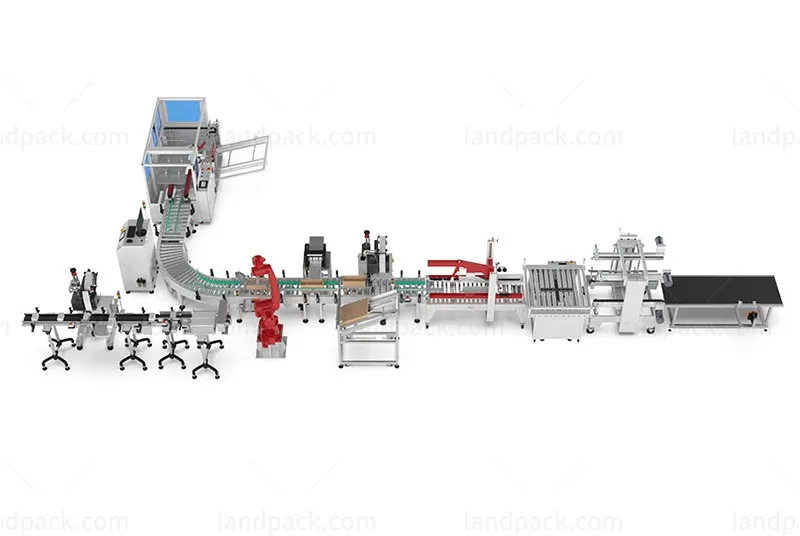

Machine Structure Overview:
1. Box Opening  2. Palletizing Robot  3. Robotic Packing  4. Printing System 4. Labeling  5. Box Sealing Machine

Feature:

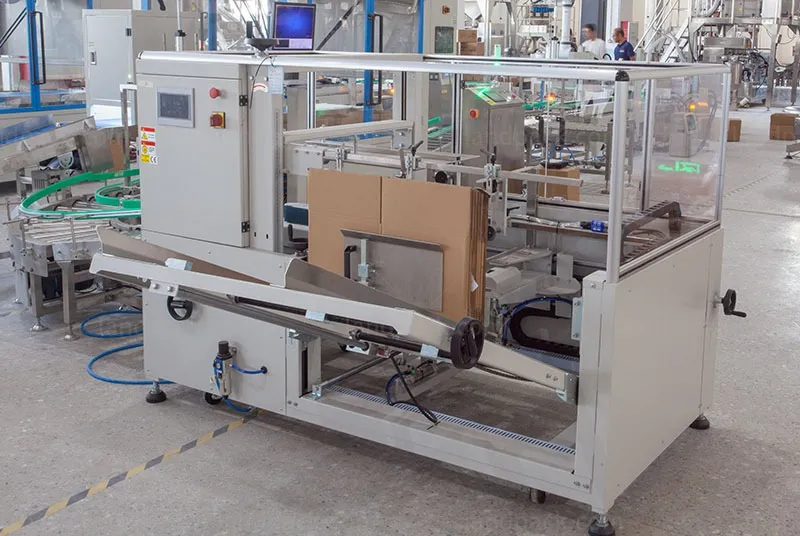

1. Automatic carton erecting system forms cartons continuously from flat blanks.
2. Robotic packing unit automatically loads products into cartons.
3. Servo positioning system supports accurate product arrangement during packing.
4. Real-time printing and labeling module supports barcode and shipping label application.

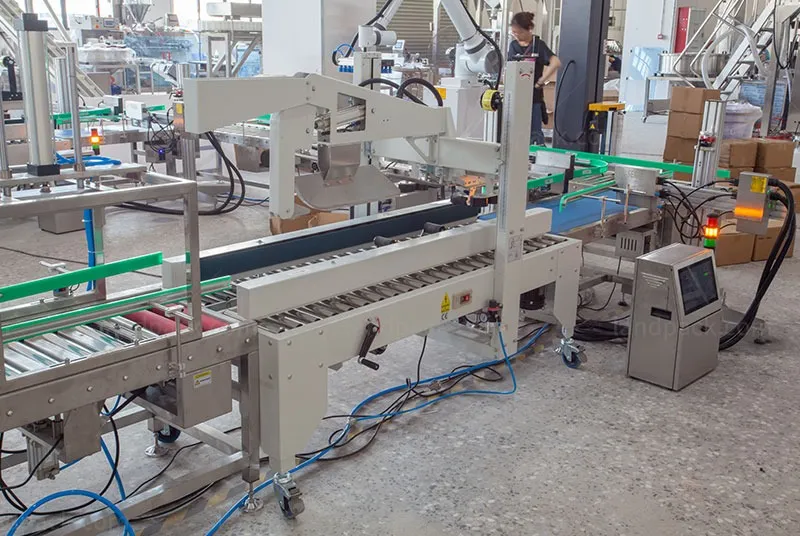

5. Carton sealing machine supports adhesive tape or hot melt sealing methods.
6. Robotic palletizer automatically stacks finished cartons onto pallets.
7. PLC touchscreen control system supports centralized operation and monitoring.
8. Flexible line configuration supports bottles, cartons, pouches and containers.
9. Safety guards and sensor detection improve operational safety.
10. Modular structure allows integration with filling, labeling and warehouse systems.
