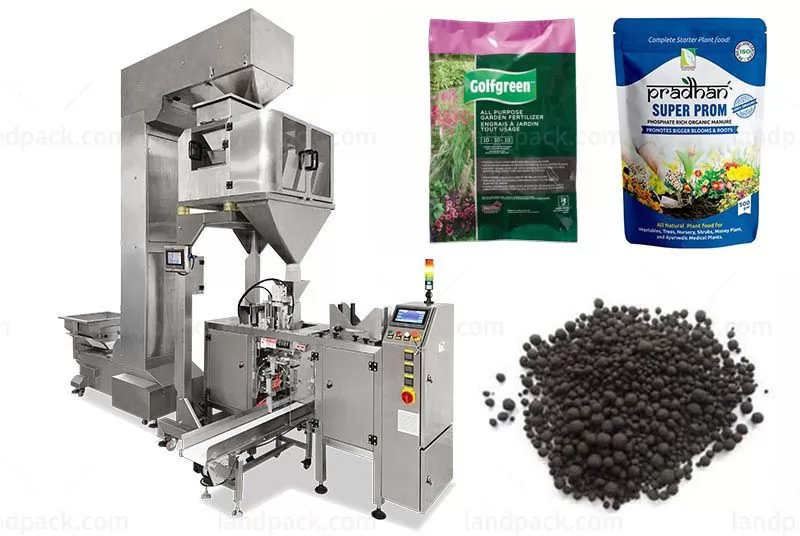

Fertilizer Mini Doypack Machine With Smart Double Head Linear Scale

  • Application
  • Description
  • Parameter
  • Video

Application:

It is suitable for all kinds of the premade bags, such as zipper pouch, pillow bag, 3-side, 4-side and 8-side quad seal bags (box pouch), kraft bags and spout bags and so on.

It is widely used for lots of application such as fertilizer, horticultural fertilizer, fruit and vegetable fertilizer, coffee beans, frozen foods, cookies, cereals, nuts, flower, candy etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:Application2.jpg

Easy to operate,adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.

Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

Safety device: Machine stop at abnormal air pressure, heater disconnection alarm

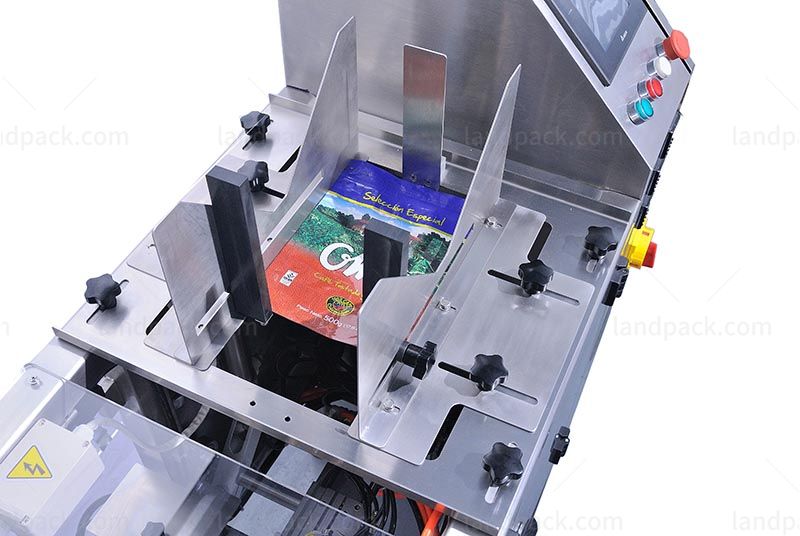

The width of the bags could be adjusted by electrical motor.

It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.

The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

With different feeders changed to pack solid, liquid, thick liquid ,powder and so on

The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.

ModelLD-MD300
Bag type3 side sealing sachet/ stand up bag(doypack bag) / zipper bag /spout bag
Speed6-15 bags / min
Bag sizeBag width: 90mm ≤ W ≤ 300 mm
Bag length: 100mm ≤ length ≤ 300 mm
Power supply220V / 50HZ / 60Hz, single phase / 20 A;
Air consumption0.5m3 / min  0.65Mpa;
Machine dimensionL: 1750mm * W:510mm *H: 1300mm
Mechanical buildingSS304 3mm thick chassis / bearing / connecting parts;
Electrical configurationPLC Mitsubishi from Japan
PID temperature control  Omron
5.7 inch color touch screen;  Delta from Taiwan
Pneumatic configurationPneumatic  component  AirTAC from Taiwan
vacuum generator   PIAB from Sweden

After receiving your inquiry,We will send you the quotation as soon as possible.
