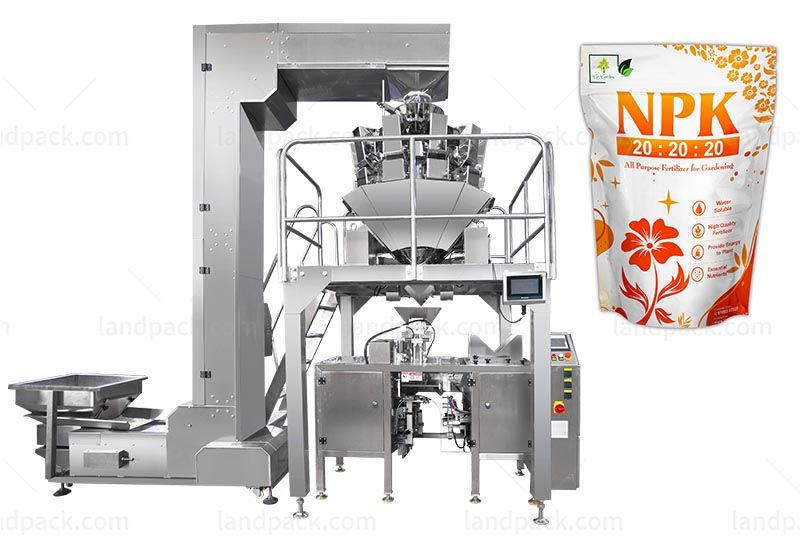

Low Cost Fertilizer Premade Pouch Fill And Seal Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

It can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc. Premade pouch can be 3-side-seal, gussette pouch, standup pouch no-zip-lock.

Suitable for various granlue material in premade pouch style, such as fertilizer, organic fertilizer, beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:  Application2.jpg

Basic Configurations:

 Touch Screen: China Kinco 7 inches corlor touch screen;

 Languages: Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);

 PLC: Japan Panasonic;

 Cylinder: Taiwai Airtac (Can be upgraded to Japan SMC);

 Vacuum Generator: China Airbest (Can be upgraded to Vacuum Pump);

 Vacuum Component: Japan SMC;

 Modular Control System For Vacuum Pressure: Japan SMC;

 Modular Control System For Temperature: China YUDIAN;

 Electrical Component: Schneider / Omron;

 Safety Key Interlock Switch;

 The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;

 The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).

Basic Functions:

 The machine stops running when the safety key interlock switch is pulled out;

 No bag prompting function;

 Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag;

 Positioning (anti-dropping) function of hopper;

 Warning function of cartridge heater fault ;

 Warning function of cylinder fault.

 Warning function which air pressure is not up to standard.

Performance Features:

 Easy to operate and easy to replace the bag / The machine is suitable for a variety of bag types;

 Low maintenance cost / Modular replacement of the parts;

 Certificate of Conformity.

 Model: LD-300A/LD--430A

 Bag Material: Multilayer Composite Premade Bag(e.g.: PET/PE)

 Bag Type: 3 Side Seal Bag, Stand-up Bag

 Upgradable Bag Type: Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)

 Size Range: 80mm≤W≤300mm 100mm≤L≤400mm

 Speed: 0~15bags/min

 Sealing Type: Straight grain, pitch is 1mm (Optional reticulate)

 Sealing Width: 10mm (5--20mm can be customized)

 Voltage: 220V, Single-phase, 50/60HZ, 1.2KW

 Air Pressure: 0.65Mpa

 Air Consumption: 0.3m³/min (Standard machine, no additional function)

 Body Dimension: 1770*600*1260mm

 Packing Dimension: 1860*710*1650mm (Export non-fumigation wooden case)

After receiving your inquiry,We will send you the quotation as soon as possible.
