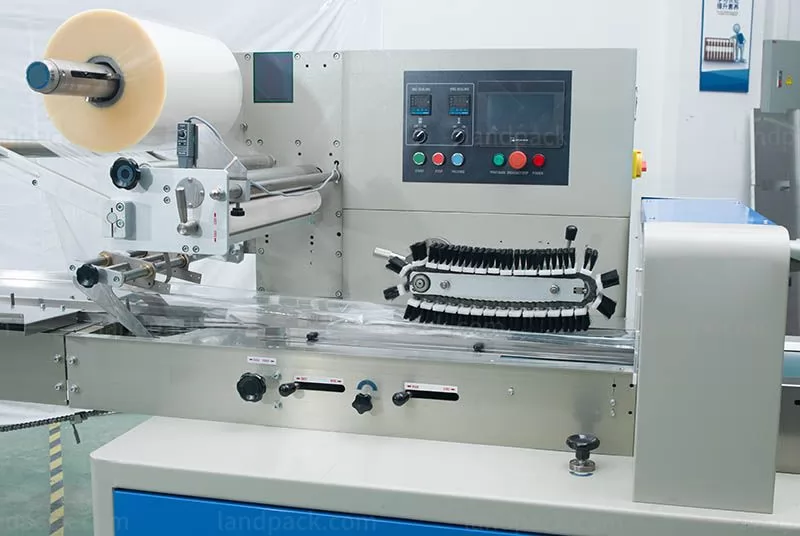

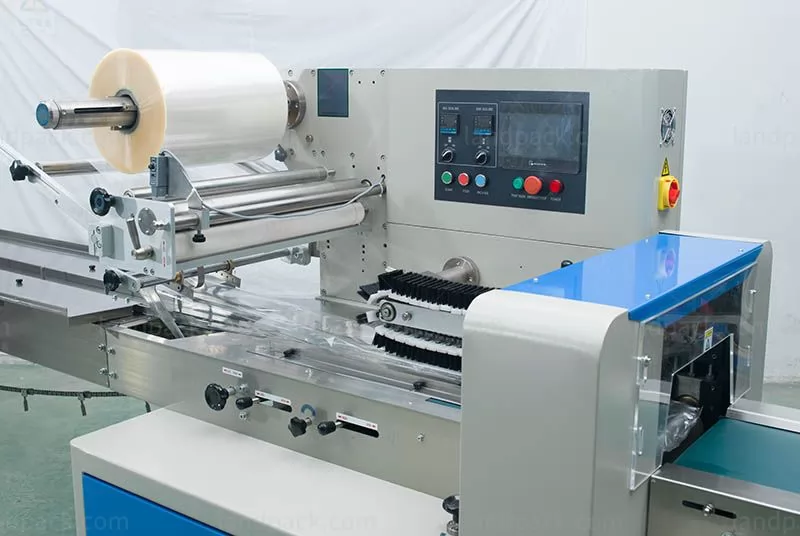

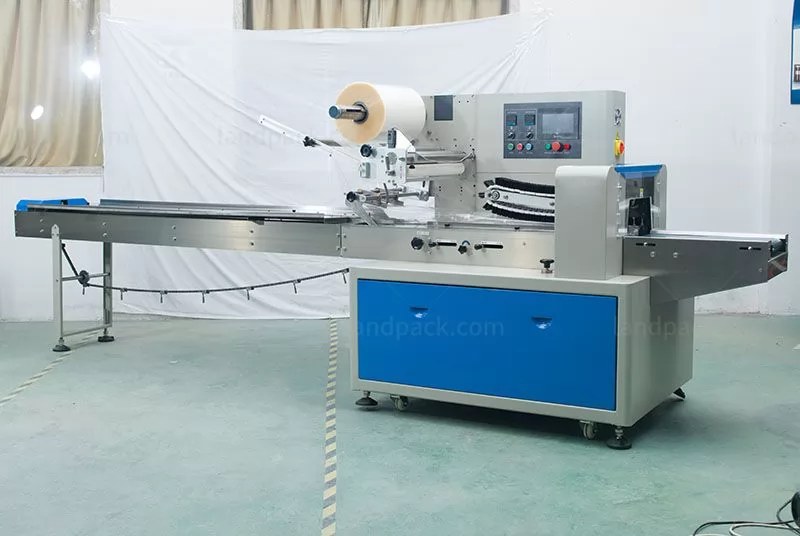

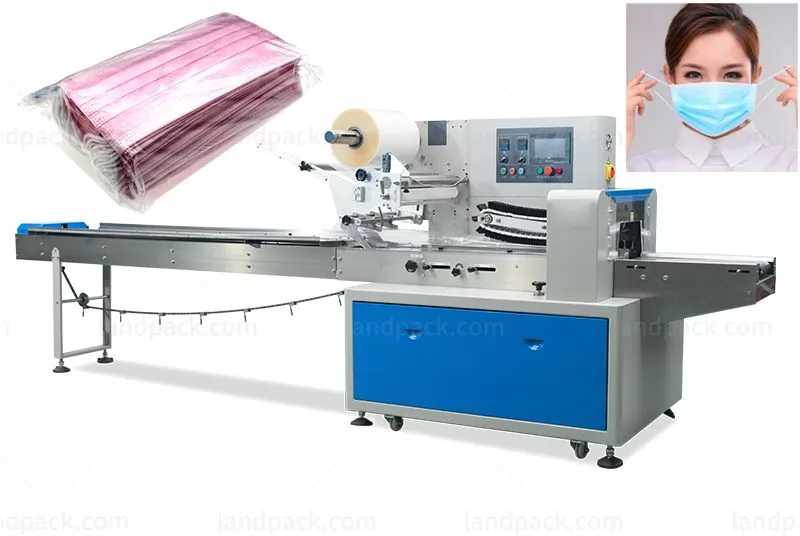

Multiple Surgical Masк Pillow Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
It is applicable for packing multiple surgical face masк, medical masк, disposable masк, protective glasses, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Multiple Disposable Medical Masks Packing Machine

Dual frequency conversion control, bag length can be setted and cutting in one step,saving time and films.

Interface features are easy and quick setting and oprating.

Self diagnosis failure function, clear failure display.

High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, suitable for packing different materials.

Positioned stop function,without sticking knife or wastingfilm.

Simple driving system,reliable working,convenient maintenance.

All control is realized through software,easy for function adjusting and technical upgrade.

Type LP-400 LP-450 ; LP-600 ; LP-700
 Film Width Max.400MM ; Max.450MM ; Max.600MM Max.700MM
 Bag Length 150-400MM 150-450MM ; 160-500MM ; 180-600MM
 Bag Width 50-180mm 50-180mm 50-280mm 100-330MM
 Products High max.65mm max.75mm max.110mm max.110mm
 Packing Speed 30-150bag/min 30-150bag/min 20-150bag/min 20-130bag/min
 Power 220V; 50/60HZ
2.8KW
 220V; 50/60HZ
2.8KW
 220V; 50/60HZ 2.8KW 220V; 50/60HZ 2.8KW
Machine Size(mm) 4020x770x1420 4020x820x1420 4020x970x1500 4030x1070x1500
 Machine Weight 600kg 650kg 680kg 720kg

After receiving your inquiry,We will send you the quotation as soon as possible.
