Application:
Suitable for automatic packing of liquid, such as garlic paste, ginger paste, sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

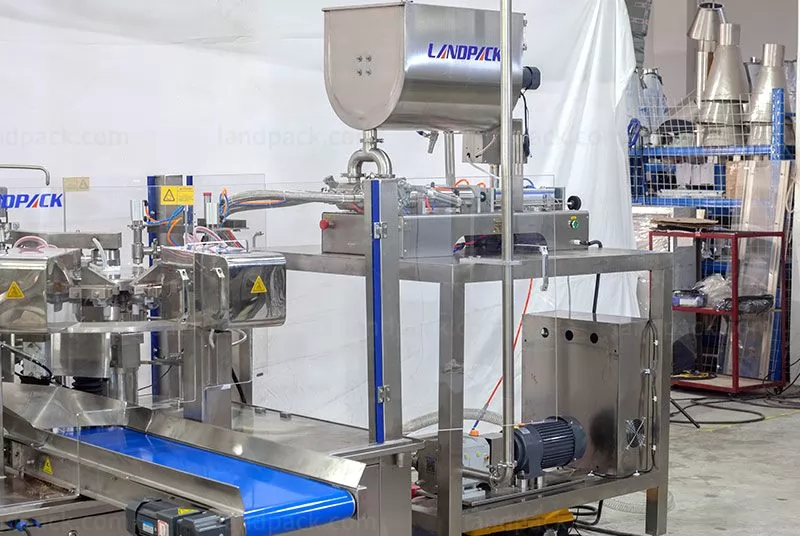

1. Automatic Rotor Pump Feeding to Material Bin: The rotor pump ensures efficient and automatic feeding of materials into the storage bin.

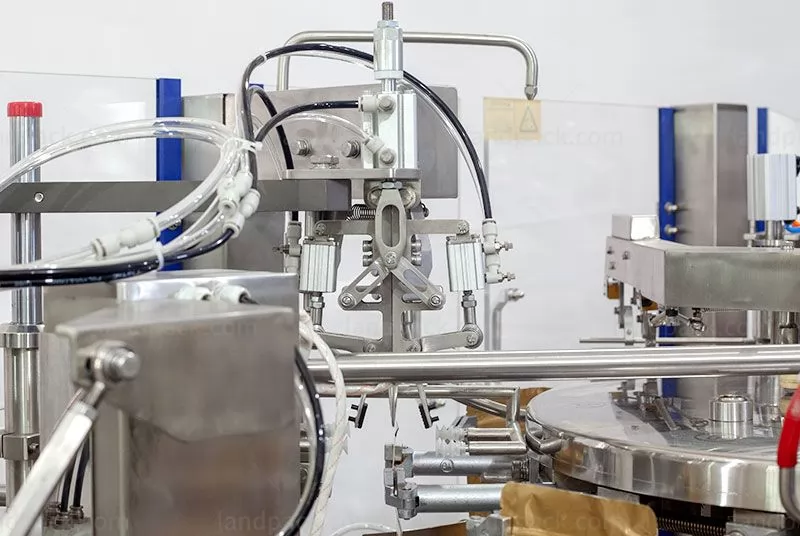

2. Zipper Bag Opening: Seamlessly opens zipper bags for easy filling.

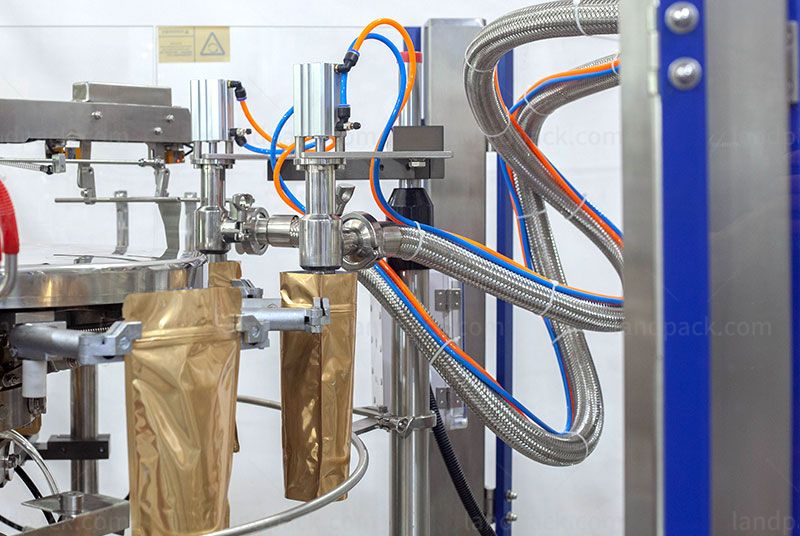

3. Dual-Head Filling: Equipped with dual filling heads, enhancing productivity and accuracy.
Workflow:
1. Piston metering device
2. Horizontal bags feeding
3. Date printing
4. Zip lock opening
5. Up/down bag opening
6. Double heads filling
7. Twice heating sealing
8. Finished product output
| Model | LD-8200/LD-8250 |
| Packing material | Spout bags, zipper bags, stand up pouches, etc |
| Size | W: 70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60 bags/min |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm*1570mm*1700mm (L*W*H) |
| Workflow | giving bag→coding →opening →filling 1 →filling 2→auxiliary→exhaust→heat sealing→forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
