Application:

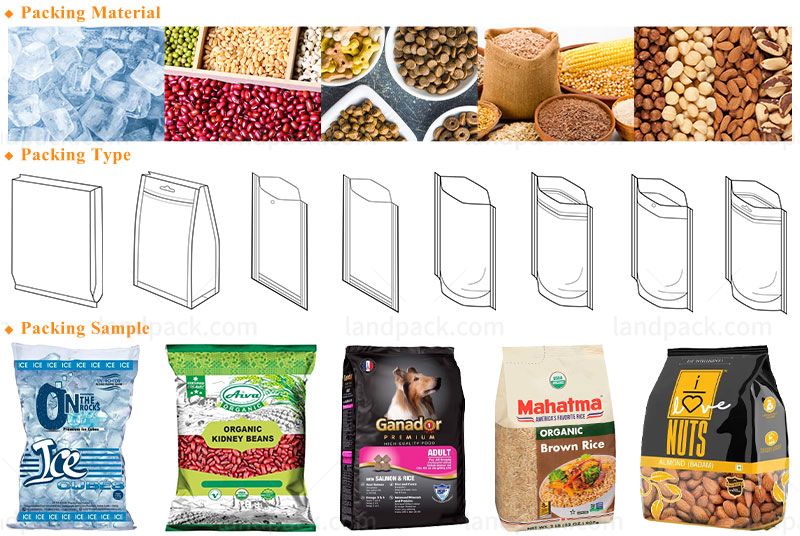

Suitable for packaging small grains with good uniformity, such as ice cubes, oatmeal, sugar, salt, seeds, rice, sesame, milk powder coffee, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

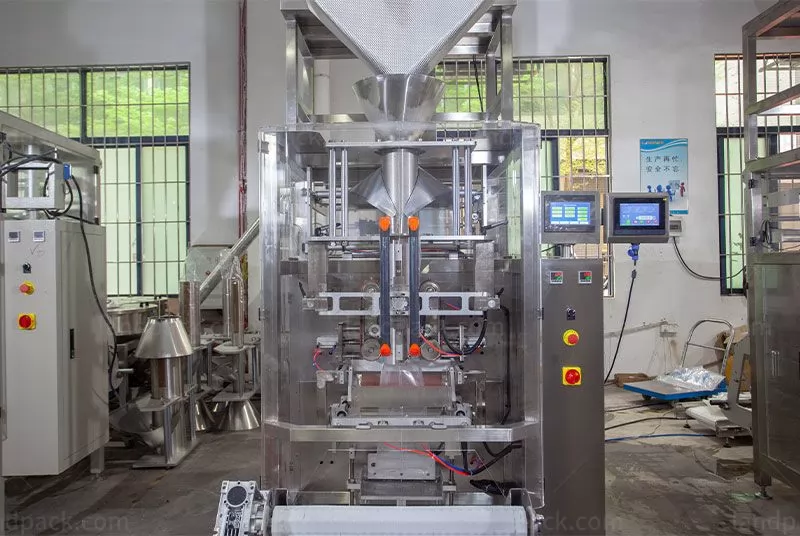

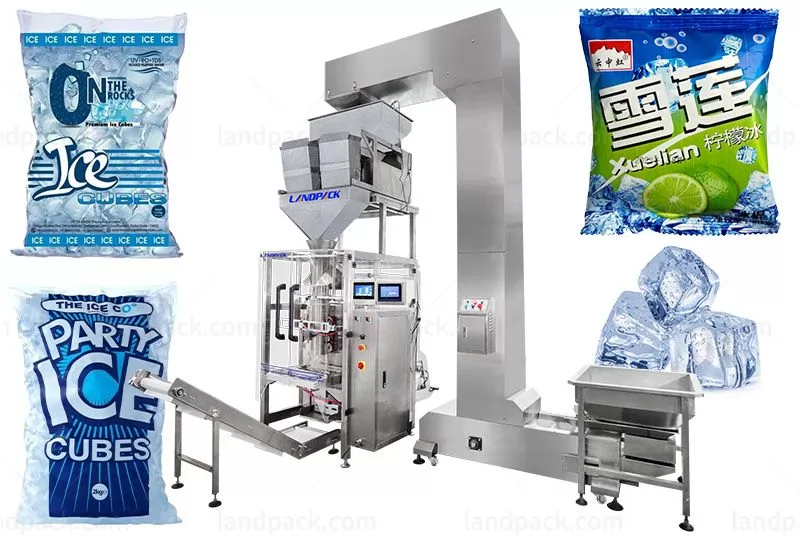

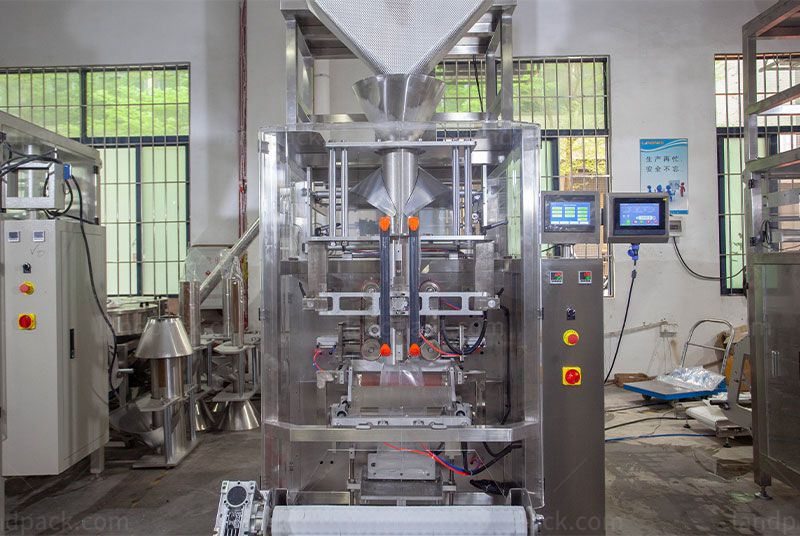

Full-automatic weigh-form-fill-seal type, efficient and simple to use.
Use famous brand electric and pneumatic components, stable and long life circle.
Use superior mechanical components, and reduce the wear of outlets.
Easy to install the film, auto-correcting the excursion of the film.
Apply advanced operating system, easy to use and reprogrammable.

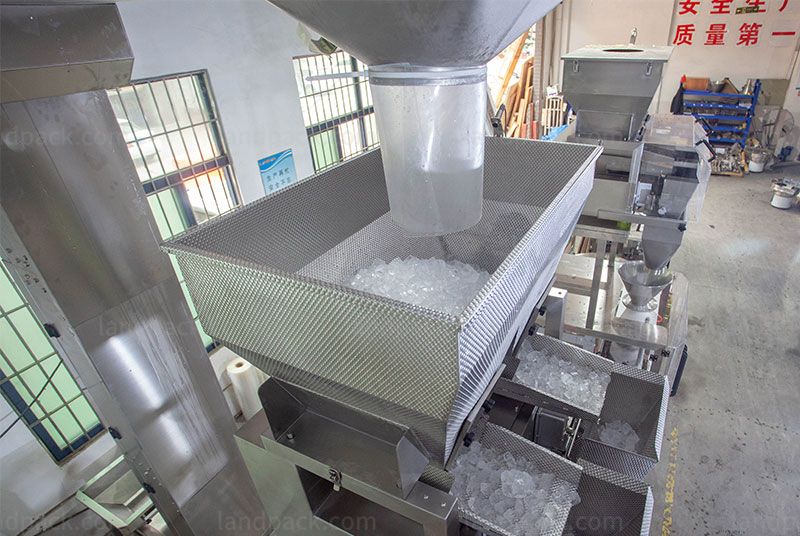

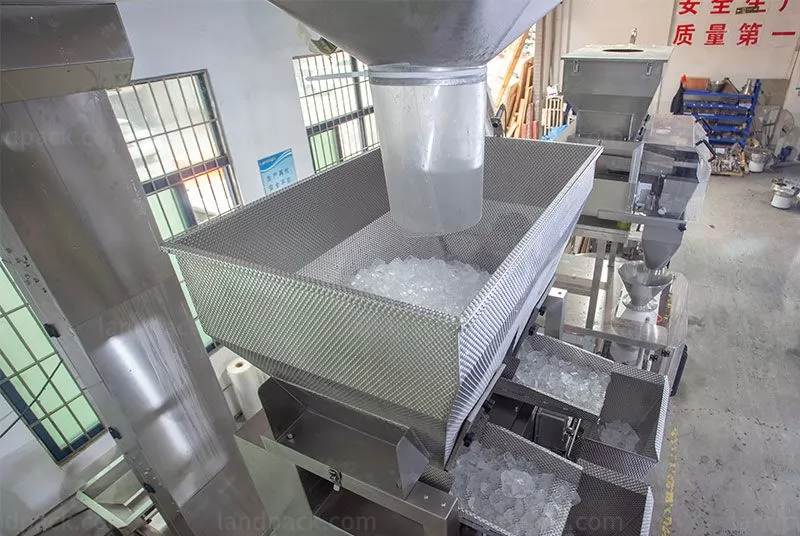

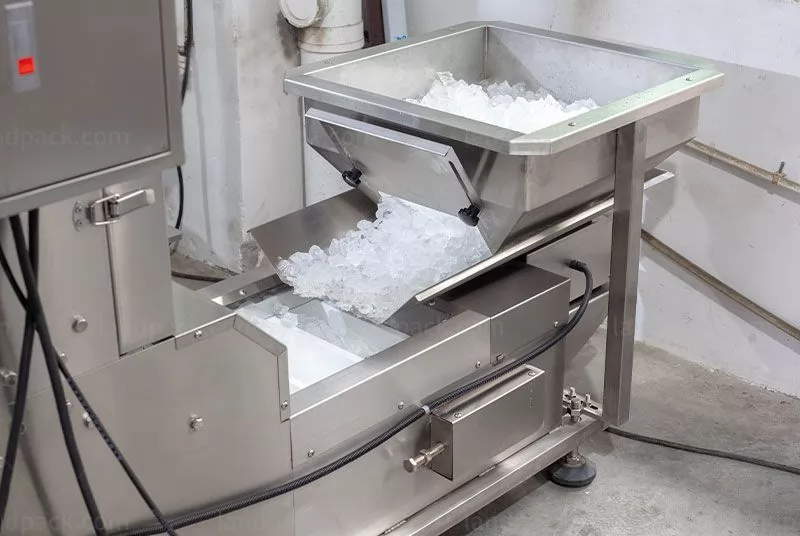

2 Head Linear Scale Weigher with Vibration Hopper and Waterproof Design Dimple Plate.
Full Set Stainless Steel Main Frame Easy to Clean.
| Type | LD-420 | LD-520 | LD-720 |
| Film Width | Max.420mm | Max.520mm | Max.720mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Measuring Range | 150-1500ml | 2000ml | 4000ml |
| Packaging Rate | 10-60bags/min | 10-60bags/min | 10-55bags/min |
| Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
| Machine Size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm |
| Machine Quality | About 650kg | About 680kg | About 750kg |
| Optional Device | 1. Date coding printer, 2. Air-filling device, 3. Punching device, 4. Tear notch device | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
