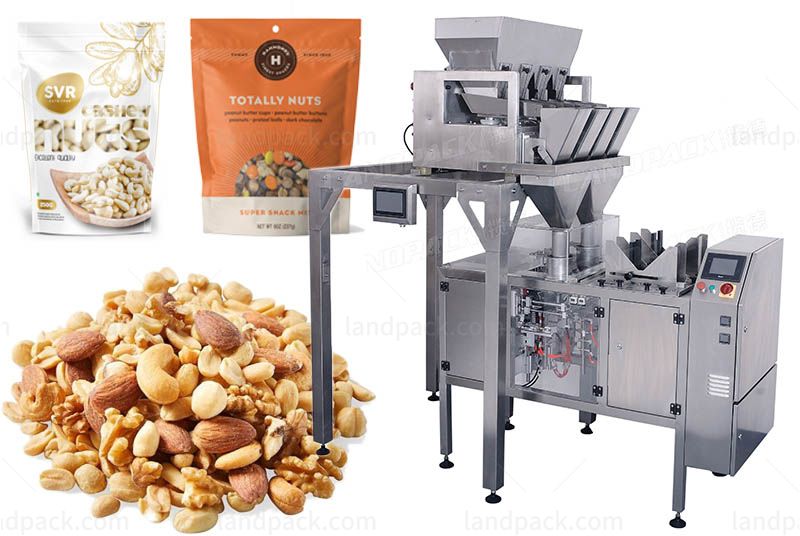

Automatic Granule Mini Doypack Machine With Smart 4 Head Linear Weigher

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for various granlue material in premade pouch style, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:应用图.jpg

Touch Screen: China Kinco 7 inches corlor touch screen;

Languages: Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);

PLC: Japan Panasonic;

Cylinder: Taiwai Airtac (Can be upgraded to Japan SMC);

Vacuum Generator: China Airbest (Can be upgraded to Vacuum Pump);

Vacuum Component: Japan SMC;

Modular Control System For Vacuum Pressure: Japan SMC;

Modular Control System For Temperature: China YUDIAN;

Electrical Component: Schneider / Omron;

Safety Key Interlock Switch;

The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;

The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).

Model
LD-300AX/LD--430A
Bag Material
Multilayer Composite Premade Bag(e.g.: PET/PE)
Bag Type
3 Side Seal Bag, Stand-up Bag
Speed
0~15bags/min
Sealing Type
Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width
10mm (5--20mm can be customized)
Voltage
220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure
0.65Mpa
Air Consumption0.3m³/min (Standard machine, no additional function)
Body Dimension1770*600*1260mm
Packing Dimension1860*710*1650mm (Export non-fumigation wooden case)

After receiving your inquiry,We will send you the quotation as soon as possible.
