Automatic Granules Horizontal Doypack Pouch Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

automatic fine granules horizontal doypack machine with linear weigher, it is suitable for the measurement and packaging of various fine particle products, such as sugar, salt, chicken essence, monosodium glutamate, buckwheat, snacks, etc. after replacing the metering device, it is suitable for packaging liquid and powder products.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

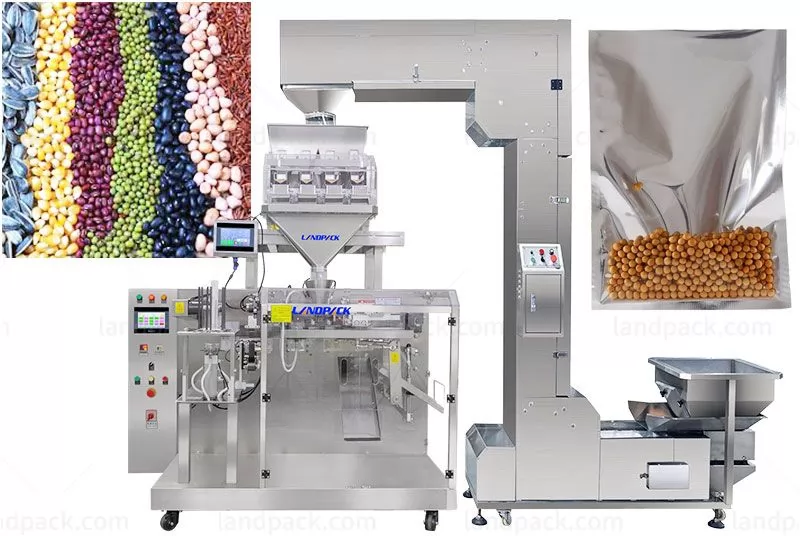

Packing Exambers:    Automatic Fine Granules Horizontal Doypack Machine With Linear Weigher

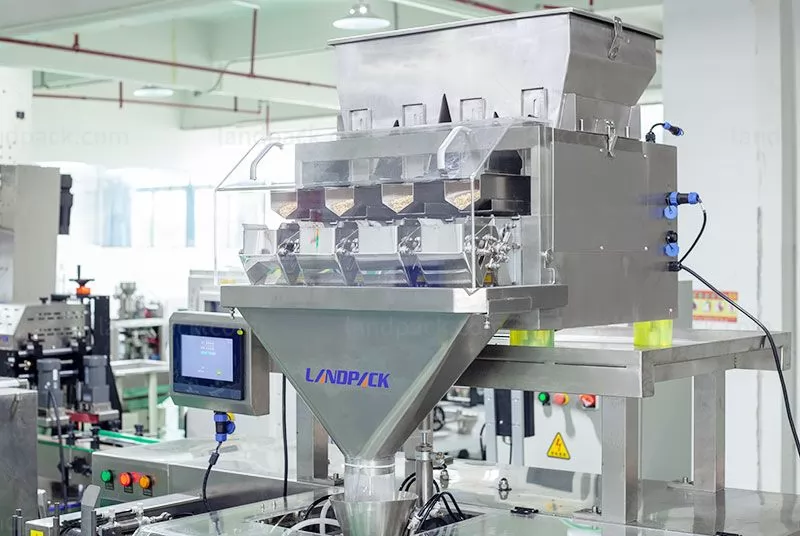

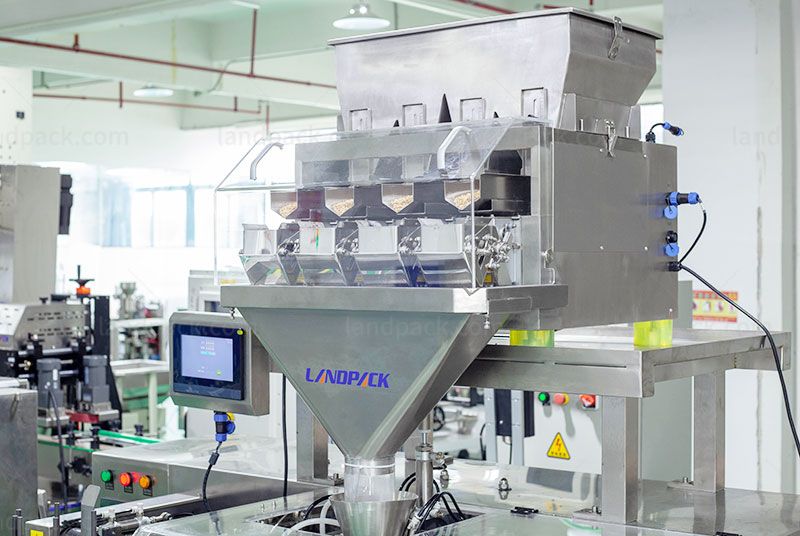

1. The metering and packaging system consists of a horizontal bag-feeding packaging machine, an linear weigher blanking system, an electronic scale working platform and a Z-type material hoist;

2. The bag placing slot is convenient and simple to place the bag, equipped with an automatic bag pressing device;

3. Equipped with imported pressure sensing device to achieve the effect of no blanking and no sealing, saving packaging bags;

4. Adopting color touch screen, simple operation and multifunctional design;

5. The machine adopts the appearance of stainless 304L, and the carbon steel frame part and some accessories are processed with acid-resistant, salt-resistant and anticorrosive treatment layer.

6. Material selection requirements: Most of the accessories are formed by mold production, and the main materials are 304 stainless steel and alumina.

7. Various coding, coding, exhaust, and punching systems are optional;

ModelLDSP-160A
Pouch Size (mm)min90*90; max160*230
Packing Capacity30-50 Bags/min
Power3N/380V
Machine Size1750*1280*1360
Machine Weight800kg
Packing capacity20g-500g
Air consumption0.7m³/min
Packing bag typesvarious premade pouch such as four-side sealing bags, handbags, paper bags, etc.

After receiving your inquiry,We will send you the quotation as soon as possible.
