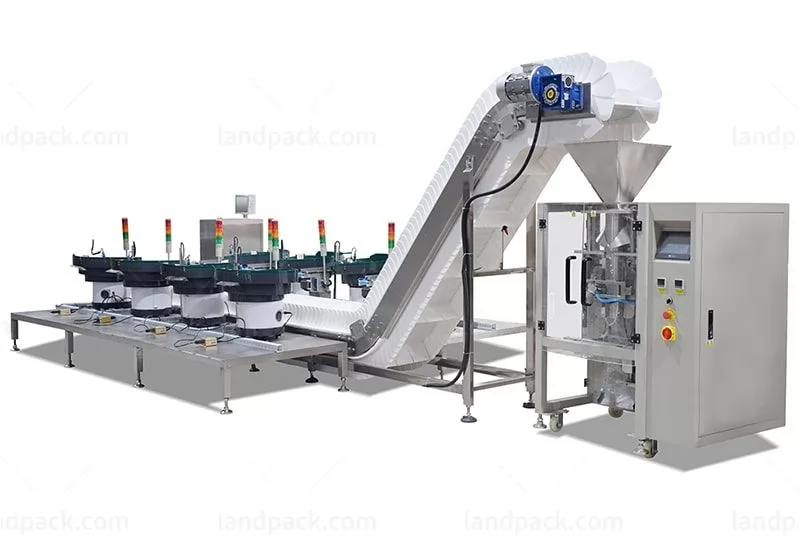

Mixd Material In One Bag Counting Packing Machine With Multiple Vibrate Feeder LD-520AH

  • Application
  • Description
  • Parameter
  • Video

Application:
Packaging machine with 8 vibrate feeder is used for counting and packing different materials into one bag with material counting function, like counting different number custruction toys in one bag,counting virious kinds and numbers of screw, nail, bolt in one bag, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

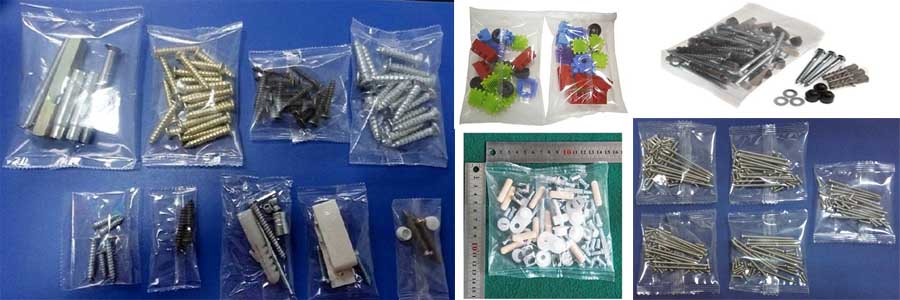

Packing Exambers:    Mixd Material In One Bag Counting Packing Machine With Multiple Vibrate Feeder LD-520AH

High precision structure for simple and easy operating and repairing.

Single-chip CPU,step-motor,easy and accurate to set the bag length.

Own simple circuitry and outstanding function.

Be able to complete the whole procedure of filling,bagging,date printing,charging(exhausting) automatically.

ModelLD-420LD-520LD-720LD-900LD-1050LD-1200
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm100-600mm100-800mm100-1000mm
Bag Width60-200mm100-250mm180-350mm260-430mm290-505mm290-580mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm400mm400mm400mm
Pakaging Rate5-60bag/min5-60bag/min5-55bag/min5-20bag/min5-20bag/min5-20bag/min
Film WidthMax.420mmMax.520mm150-Max.720mmMax.900mmMax.900mmMax.1200mm
Measurement Range150-1500ml5-2000ml4000ml1-25L1-25L1.5L-45L

After receiving your inquiry,We will send you the quotation as soon as possible.
