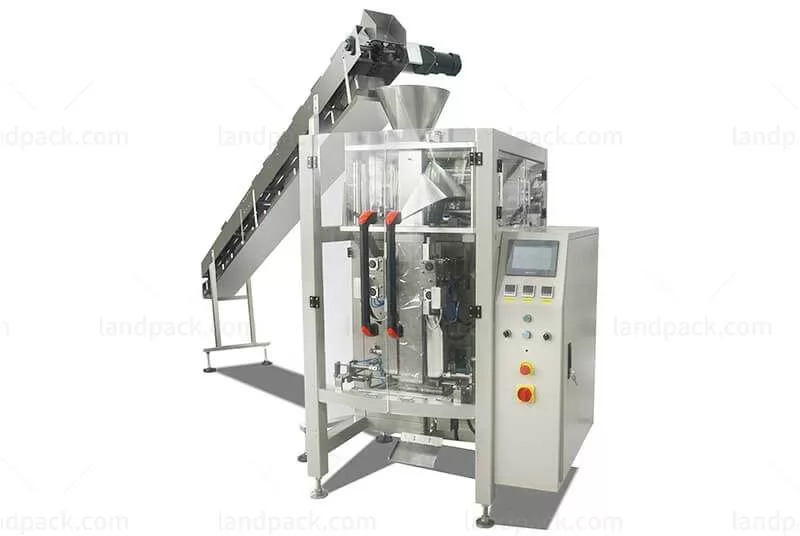

Quad Seal Bag / Block Bottom Pouch Packing Machine LDB-420A

  • Application
  • Description
  • Parameter
  • Video

Application:
Quad seal bag / block bottom pouch packing machine is suitable for automatic packaging various kinds of leavened food, candies, peanuts, seeds and such materials in grain or piece as well as powder like milk powder, washing powder, starch, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Quad Seal Bag / Block Bottom Pouch Packing Machine LDB-420A

New design with perfect fashion, more reasonable structure, more advanced technology.

Longitudinal sealing is used by four sides with hot sealing type, bag is more beautiful and shape stabilization.

Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.

Standard positioning with imported servo film tran sporting system and mark sensor,superexcellent capability for complete machine, perfect packaging.

With auto warning protection function to minimize loss.

With double transporting devices, angle fold devices and retainer devices, Function more perfect.

Various kinds of bag, it could provide the hang hole bag, link bag, etc.

Automatic correct function, save time, labor, and film,the operation more intelligent.

Adopt external film feeding mechanism. Film setting be more easy and quick.

ModelLDB-420LDB-520
Film Width150-Max.420mm250-Max.520mm
Bag Length80-280mm80-350mm
Bag for Front width80-132mm80-150mm
Bag for Side width20-66mm35-90mm
Film Roll DiameterMax.320mmMax.320mm
Film Thickness0.04-0.12mm0.04-0.12mm
Packaging Rate10-40bag/min10-40bag/min
Power220V 50/60Hz 2.8KW220V 50/60Hz 3KW
Machine Size(L*W*H)1390*1155*1800mm1492*1255*2184mm
Machine QualityAbout 600kgAbout 700kg
Option deviceair filling device, hole-punching device.

After receiving your inquiry,We will send you the quotation as soon as possible.
