Semi-Automatic Packaging Machine With Chain Bucket

  • Application
  • Description
  • Parameter
  • Video

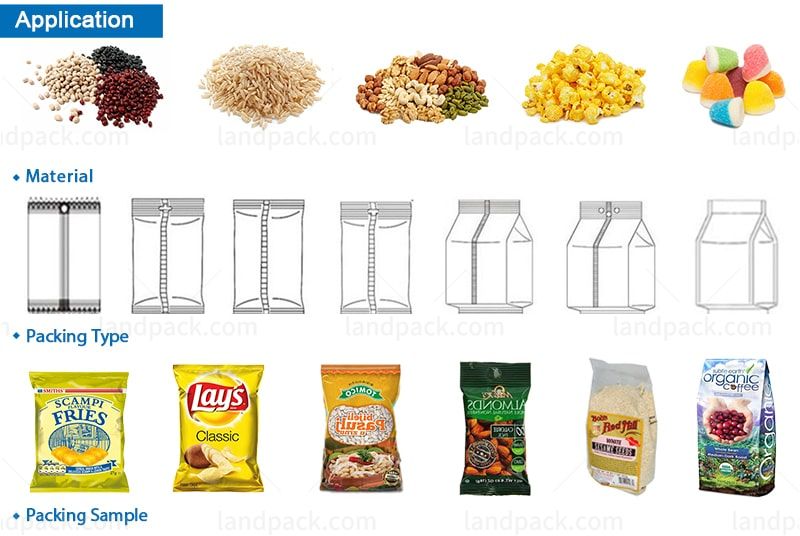

Application:
1.Fragile material: Chips, shrimp slices, crispy rice.
2.Uneasy measuring material: tea leaves, dumpling, candy, jelly, bean sprouts.
3.The pouch bag into big bag of drugs, commodity, daily use, food, small hardwares, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

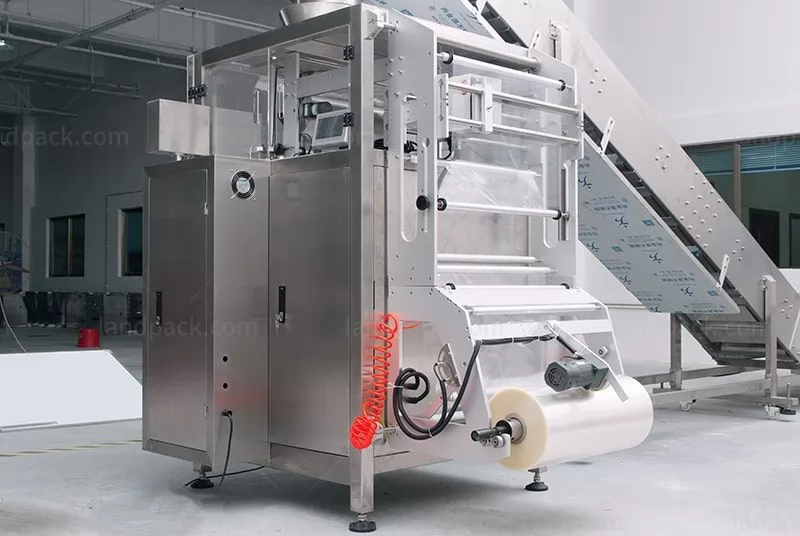

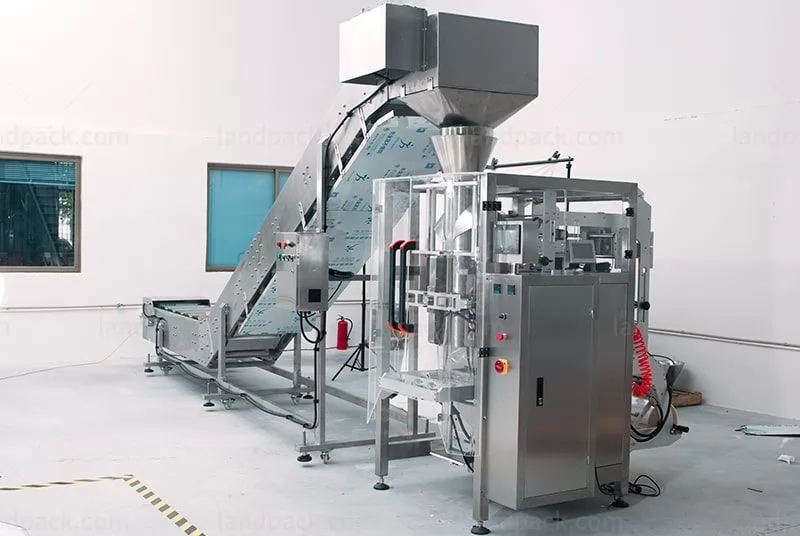

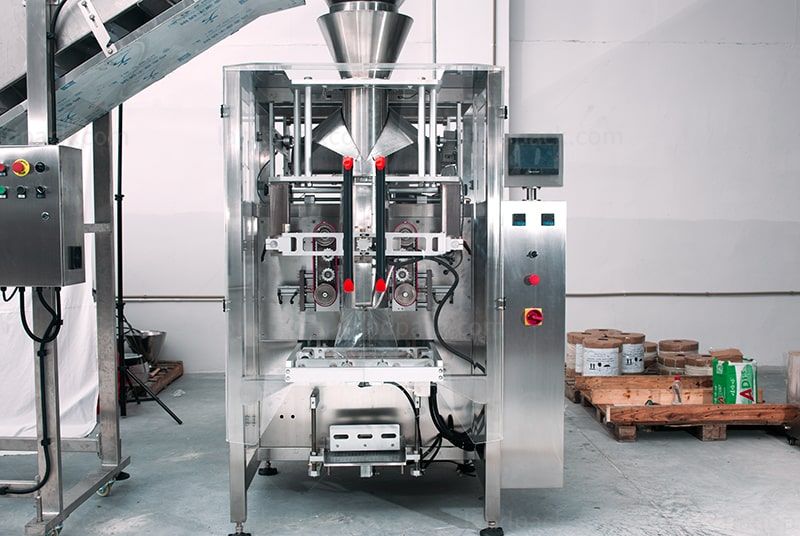

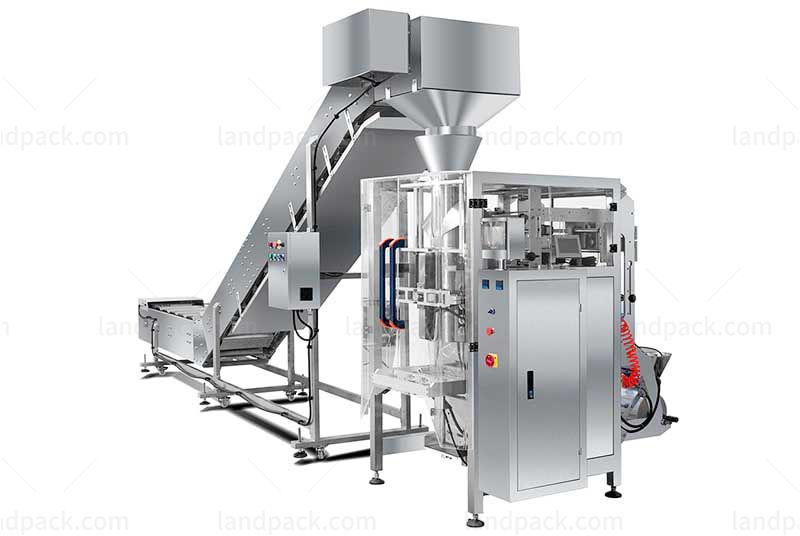

Packing Exambers:    Semi-Automatic Packaging Machine With Chain Bucket

New design with perfect fashion,more reasonable structure,more advanced technology.

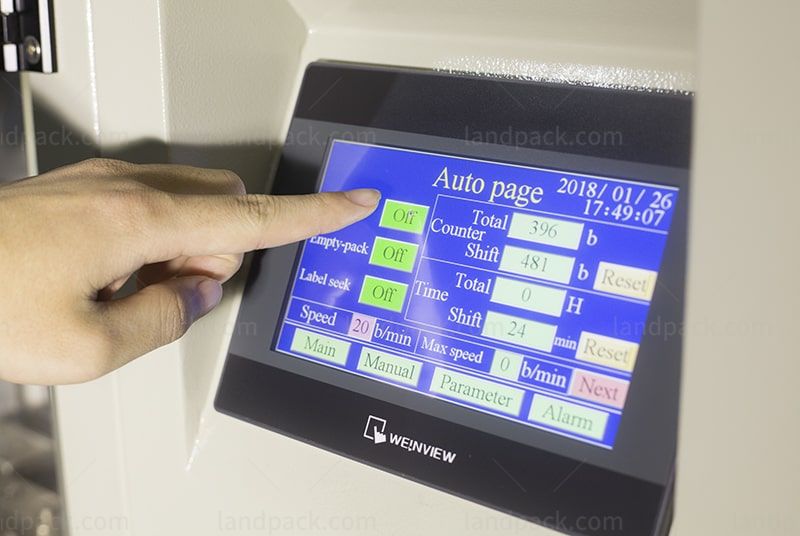

Imported PLC control system,colorful touch screen,easy operation, intuitionistic efficient.

Standard positioning with imported servo film transporting system and mark sensor,Super excellent capability for complete machine,perfect packaging.

With auto warning protection function to minimize loss.

Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag,.link bag,etc.

ModelLD-420LD-520LD-720LD-900LD-1050LD-1200
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm100-600mm100-800mm100-1000mm
Bag Width60-200mm100-250mm180-350mm260-430mm290-505mm290-580mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm400mm400mm400mm
Pakaging Rate5-60bag/min5-60bag/min5-55bag/min5-20bag/min5-20bag/min5-20bag/min
Film WidthMax.420mmMax.520mm150-Max.720mmMax.900mmMax.900mmMax.1200mm
Measurement Range150-1500ml5-2000ml4000ml1-25L1-25L1.5L-45L
