Semi-Automatic Packing Machine With Volumetric Cup And Chain Bucket LD-320AB

  • Application
  • Description
  • Parameter
  • Video

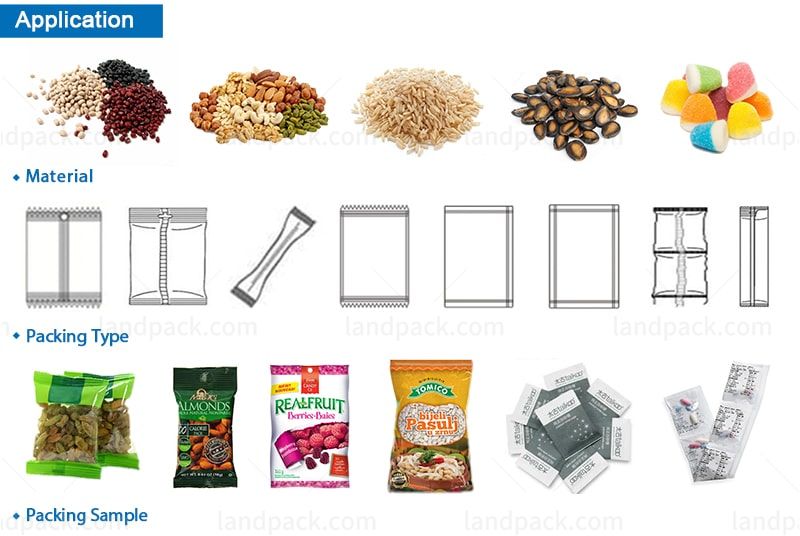

Application:

Suitable for disposable supplies,daily necessities,industrial parts,medical equipment and other granular,sheet,strip,solid packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Examblers

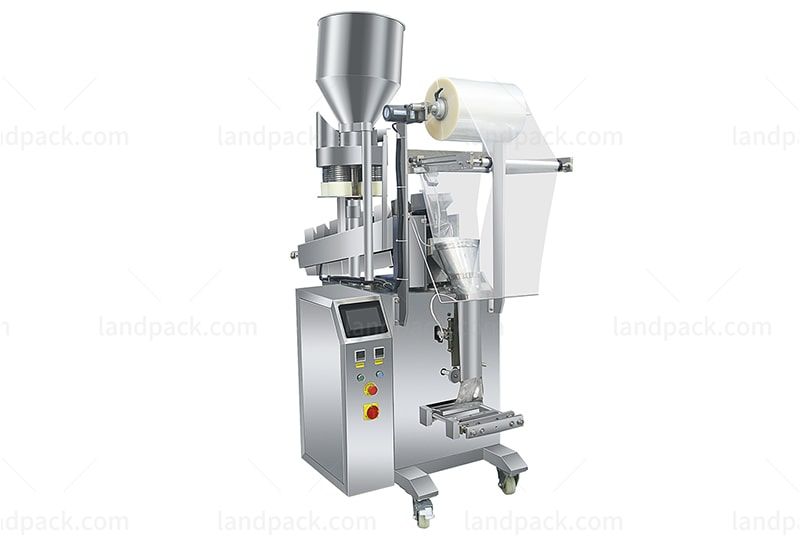

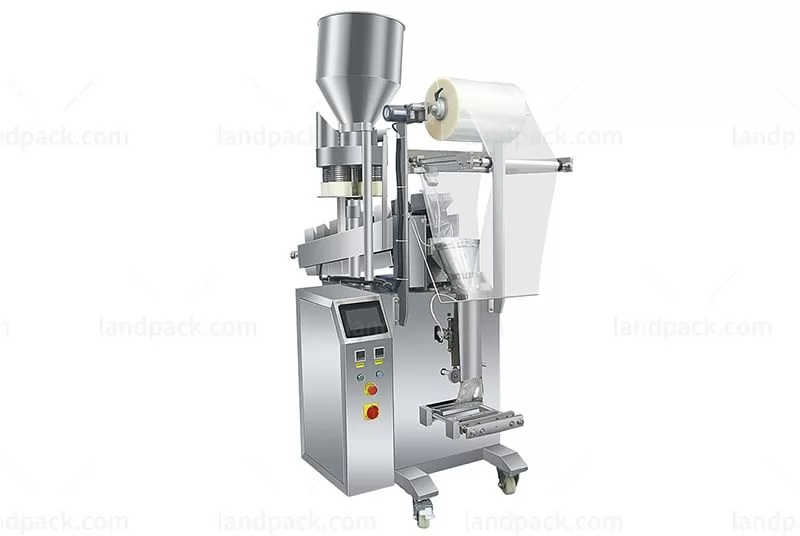

Semi-Automatic Packing Machine With Volumetric Cup And Chain Bucket  LD-320AB

  1. High precision structure for simple and easy operation and repair.

  2. CPU simgle chip ,step motorl,easy and accurate to set the bag length.

  3. It's owns simple circuitry and outstanding function.

  4. The machine completes the whole procedure of filling,bagging,date printing,charging(exhausting) automatically.

Model LD-320LD-380
Film width 120-320mm180-380mm
Bag length50-200mm60-280mm
Bag width50-150mm60-180mm
Diameter of film roll Max.300mmMax.320mm
Packing speed35-70bag/min
Measuring range50-500ml50-750ml
Film thickness 0.04-0.07mm
Power220V 50/60Hz 2.2KW220V 50/60Hz 2.5KW
Machine size(L*W*H)970*680*1950mm1100*800*2150mm
Machine weight About 300kgAbout 450kg

After receiving your inquiry,We will send you the quotation as soon as possible.
