Automatic Granule Bottle Filling Capping Labeling Line with Checkweigher and Metal Detector

Application:
This granule filling machine packs nuts, peanuts, coffee beans, tea leaves, candy, seeds, cereal, dried fruit, seasoning granules, pet food, capsules, and other free-flowing products into bottles and jars. A 24-head 1.6L multihead weigher measures each portion before the double rotary filling section transfers the product into bottles. The downstream granule filling line checks bottle weight and metal contamination, closes the cap, seals the bottle mouth with foil, adjusts bottle orientation through camera detection, and applies labels.

Packaging Type:
The line handles rigid containers for granular products, including: PET bottles, HDPE bottles, Plastic jars, Glass bottles, Glass jars, Round bottles, Square bottles, Wide-mouth containers, Bottles with screw caps and aluminum foil liners. The filling, capping, inspection and labeling sections can adjust for different container dimensions within the confirmed machine range.

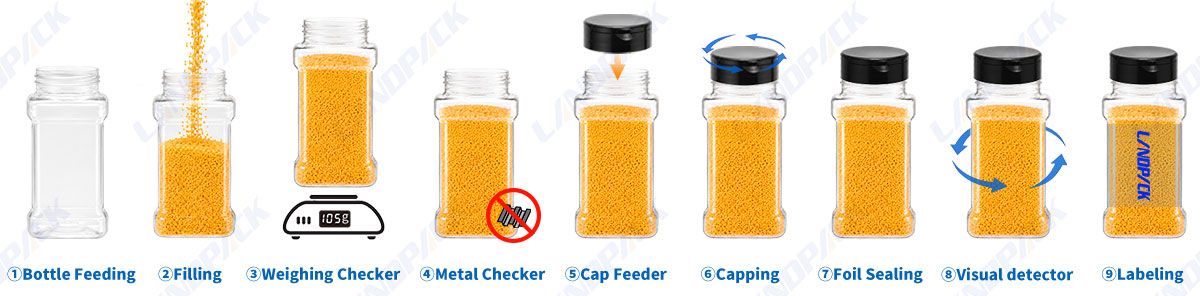

Workflow:
1. Bottle Elevator Feeding, 2. Automatic Bottle Unscrambling, 3. Granule Feeding, 4. 24-Head Multihead Weighing, 5. Collection Hopper, 6. Double Rotary Filling, 7. Vibration and Product Pushing, 8. Checkweighing, 9. Metal Detection, 10. Cap Elevating and Feeding, 11. High-Speed Capping, 12. Aluminum Foil Sealing, 13. Vision Orientation, 14. Four-Side Labeling, 15. Finished Bottle Collection

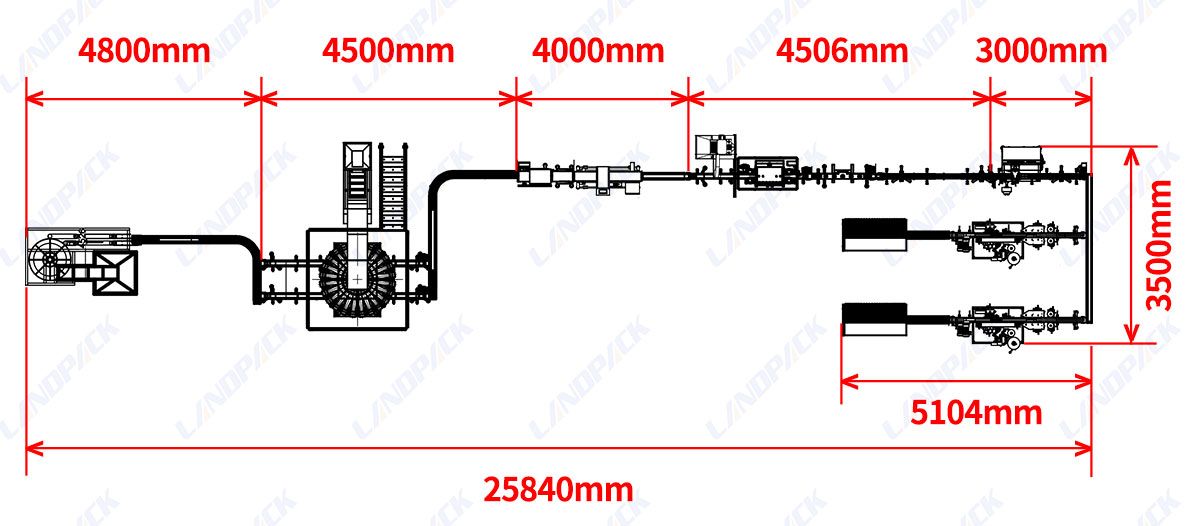

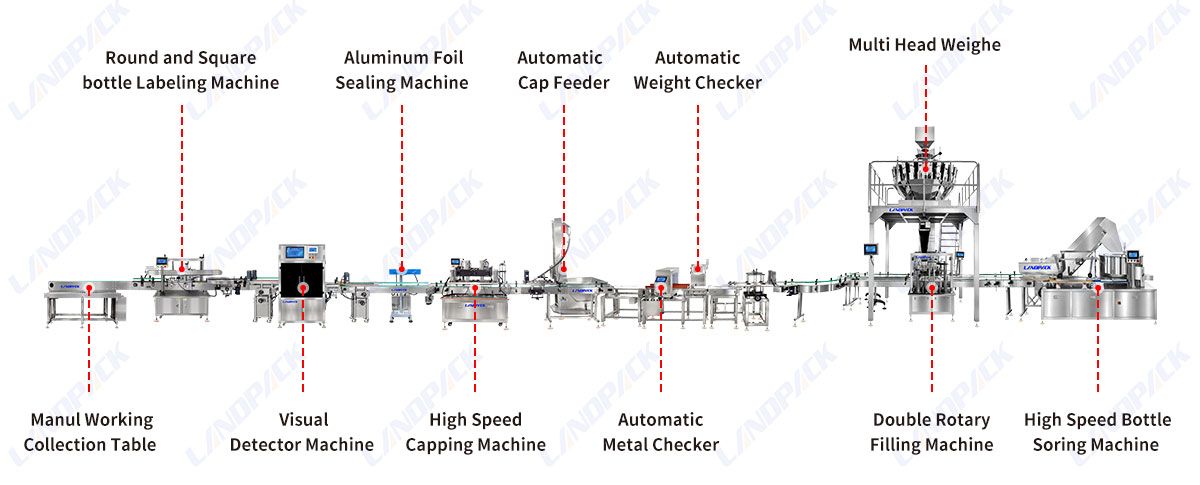

Machine Structures:

Features:
1. 24-head 1.6L multihead weigher handles larger bottle-filling portions and high-speed granule production
2. Combination weighing selects multiple hopper portions for each target weight
3. Collection hopper reduces waiting between weighing and filling; this configuration targets about 30% faster weighing throughput

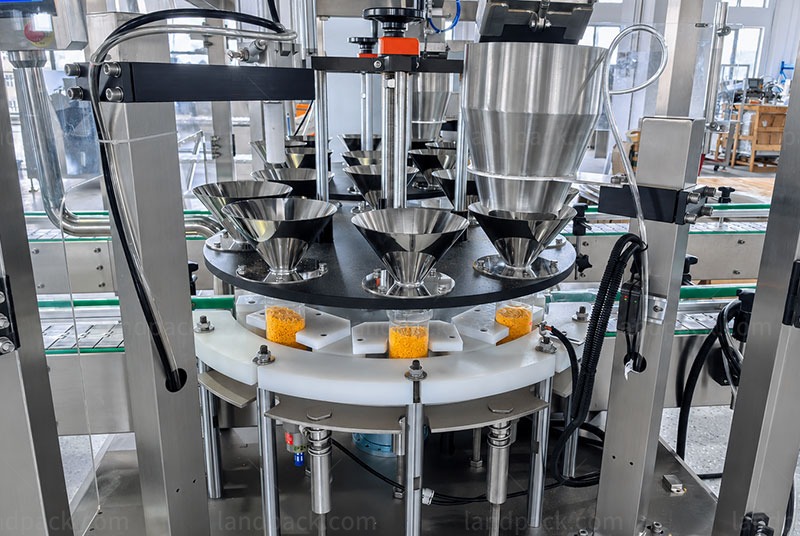

4. Double rotary filling structure keeps bottle filling moving at higher line speeds
5. Vibration and product-pushing devices help granules pass through the filling section without building up around the bottle mouth
6. Integrated checkweigher checks finished bottle weight before downstream packing
7. Metal detector adds a separate inspection step after filling
8. Cap elevator supplies caps continuously to the high-speed capper

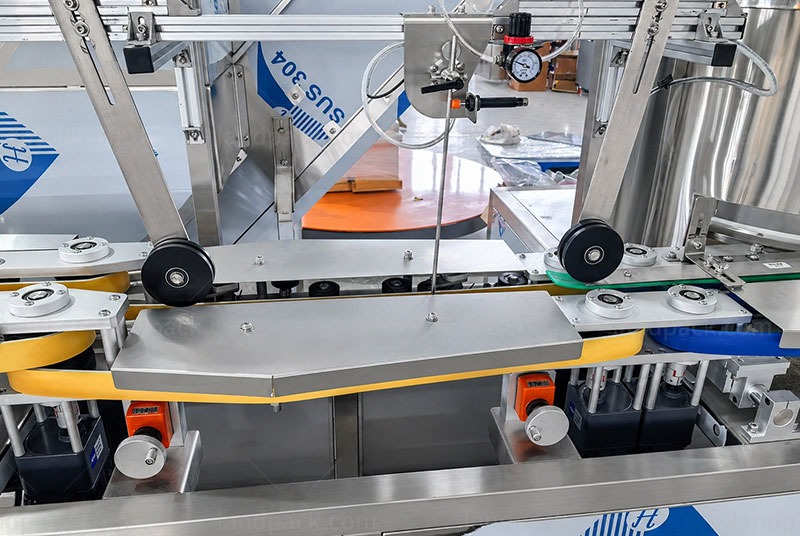

9. High-speed capping section matches the output of the filling system
10. Induction foil sealer closes the bottle mouth beneath the cap

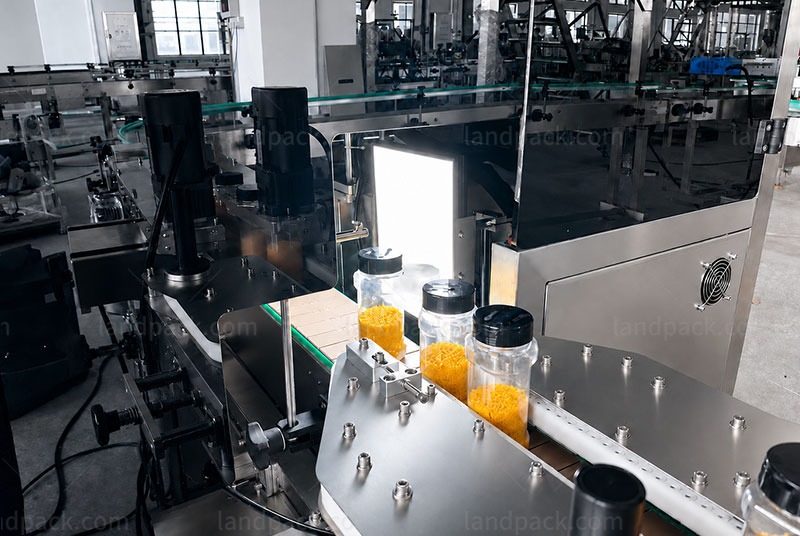

11. Camera-based orientation system turns bottles to a consistent direction before labeling
12. Four-side roll-on labeler handles square bottles and matching round-container applications
13. PLC and touchscreen coordinate weighing, filling, conveying, capping and inspection settings
