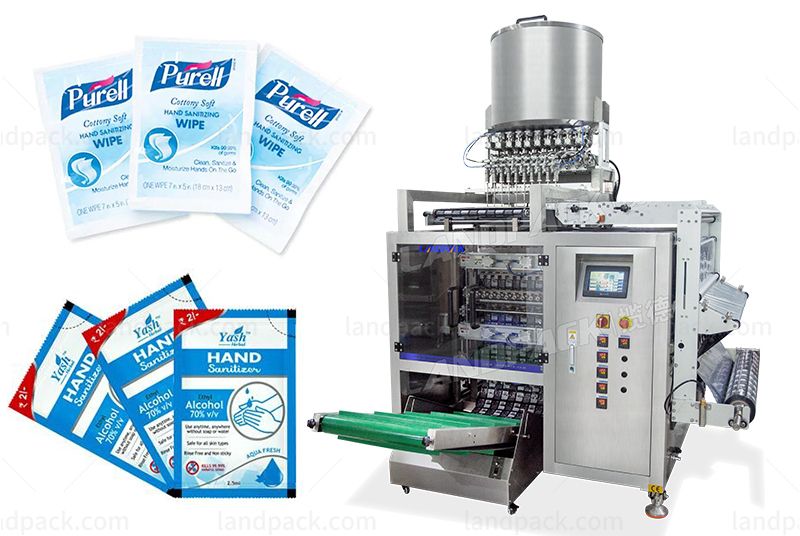

10 Rows Pouch Liquid Packing Machine For Hand Sanitizer

  • Application
  • Description
  • Parameter
  • Video


This machine suitable for foods, chemicals, and daily-chemicals industries’ fluid and cream packing such as shampoo, edible oil, cream and emulsion, fruit juice, fruit sauce, and butter, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

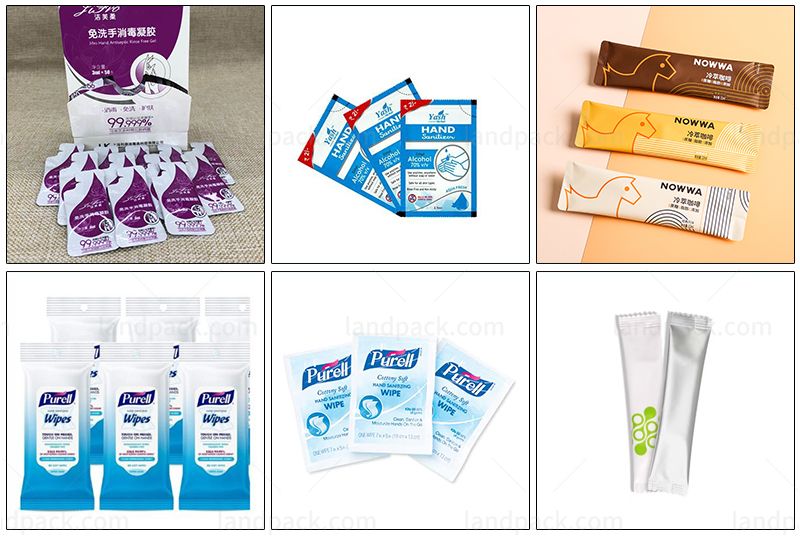

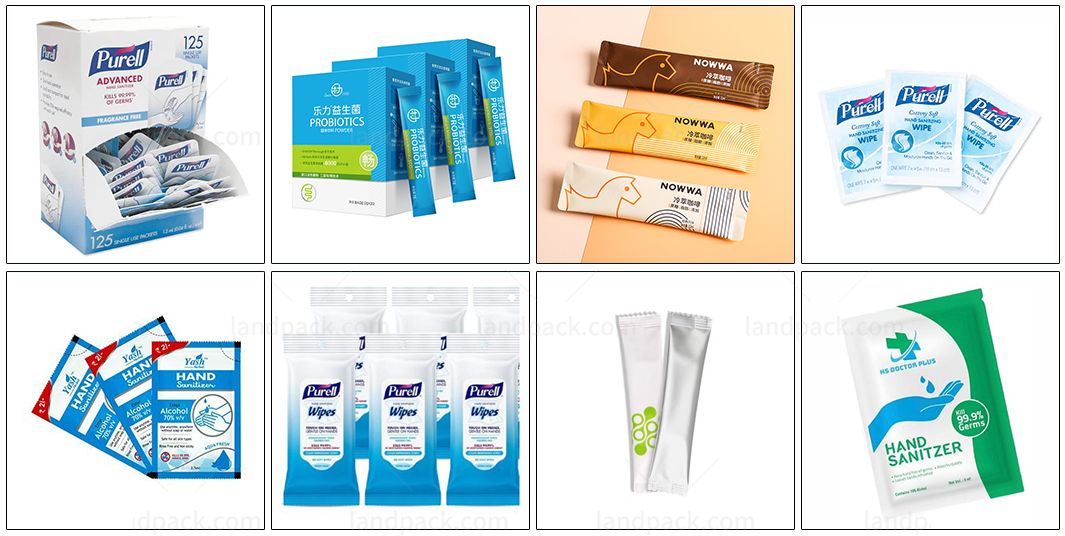

Packaging Samples:应用图.jpg

1. Multi lanes machine can produce multi lanes bags at same time.

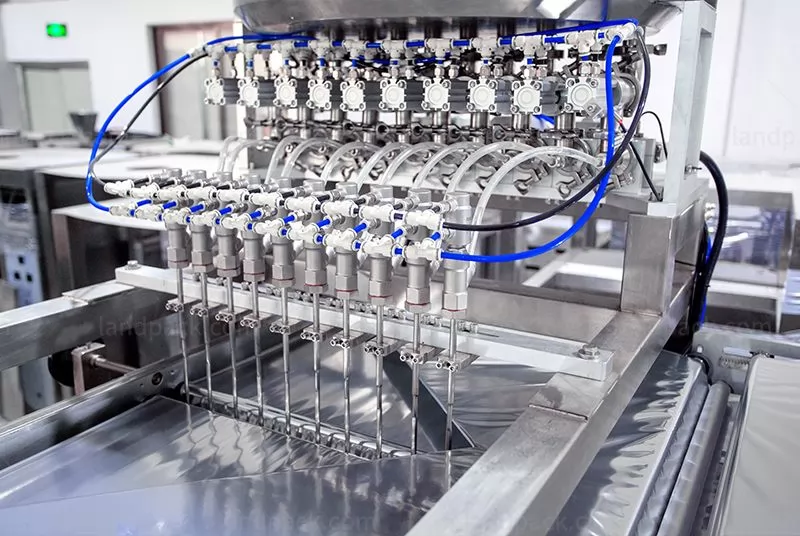

2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

6. PLC controller, high function and control the whole machine' s work steps.

Bag length30--120mm(L)
Bag width10---50mm(W)
Max width of roll film440mm
Packing speed30—60 bag /min / lane
Air consumption0.65mpa
Gas consumption0.3m3/min
Power voltage380VAC/220VAC/50Hz
Power2.5 KW
Dimension1000mm(L)*1000mm(W) *2000mm (H)
Weight420 kg
