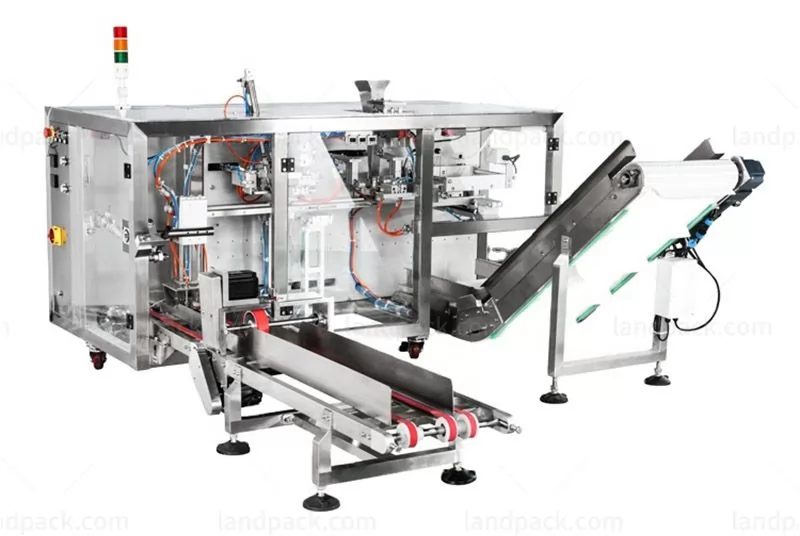

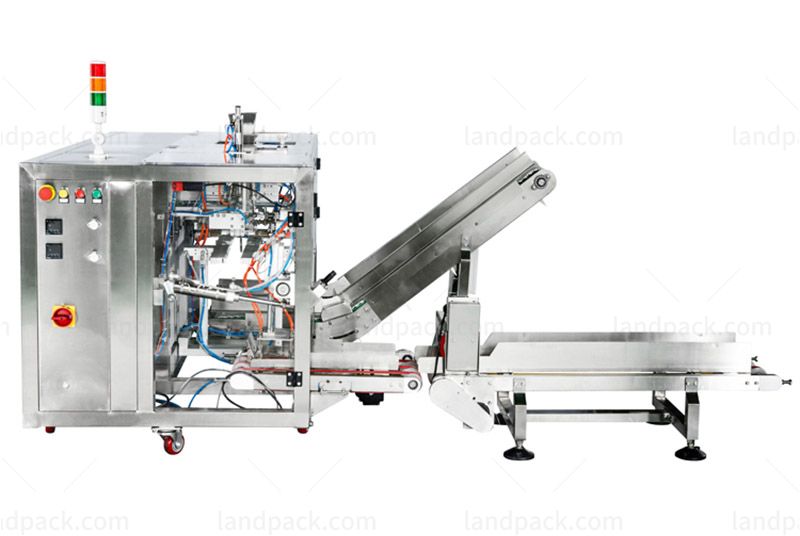

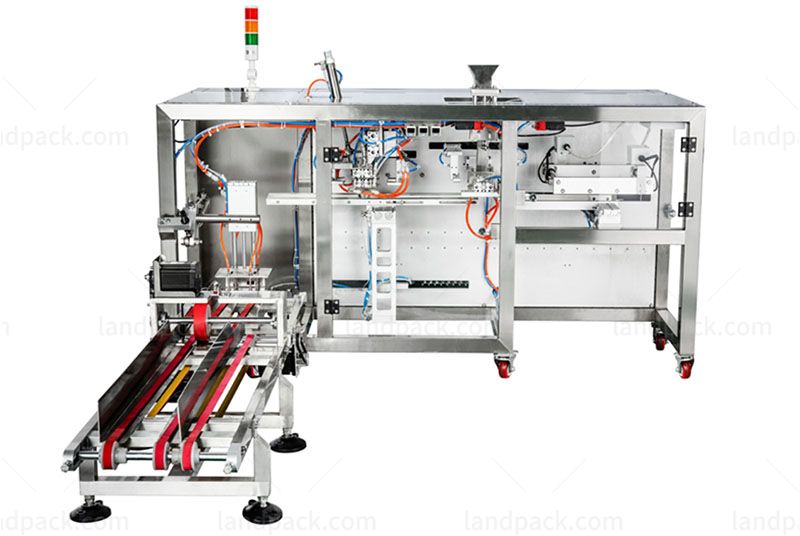

Automatic Horizontal Pouch Packing Machine For Premade Pouch/ Doypack

  • Application
  • Description
  • Parameter
  • Video

Application:

Horizental mini doypack packing machine for high speed running to ready premade ziplock standup pouch for food, pet food, granule, powder, liquid industry.

Pouch Type: Flat Bottomed Pouch, Stand Up Pouch, Quad Seal Bag, Flat Pouch - 3, Side Seal Bag, Shaped Pouch, Retort Pouch, Kraft Paper Bags etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Horizontal 4 Station Mini Doypack Premade Pouch Packaging Machinery

KEY TECHNOLOGY

1. Separate station running for high speed running

2. Servo motor driven for reliable performance

3. PLC & Touch HMI control

4. CE certificate

5. Flexible different material

6. Workable for various type of pouches.

Model
LD-300-H
NameHorizontal Mini Doypack Machine
Function
Ready Pouch loading feeding pick up, open, fill seal output, etc.
Pouch size
W: 120-300mm
L: 150-350mm
Control Servo Motor Driven, PLC & HMI
Speed
10-20 pouches per min
Pouch Type
Ready Premade ziplock pouch
standup doypack, 3 side seal pouch
Power
220v, 50/60hz, 1P,  1.5KW
Options1.Auto pouch load feeding conveyor; 2.Ziplock open device; 3. date printer; 4.tapping device; 5.output conveyor; 6.various weight filler

After receiving your inquiry,We will send you the quotation as soon as possible.
