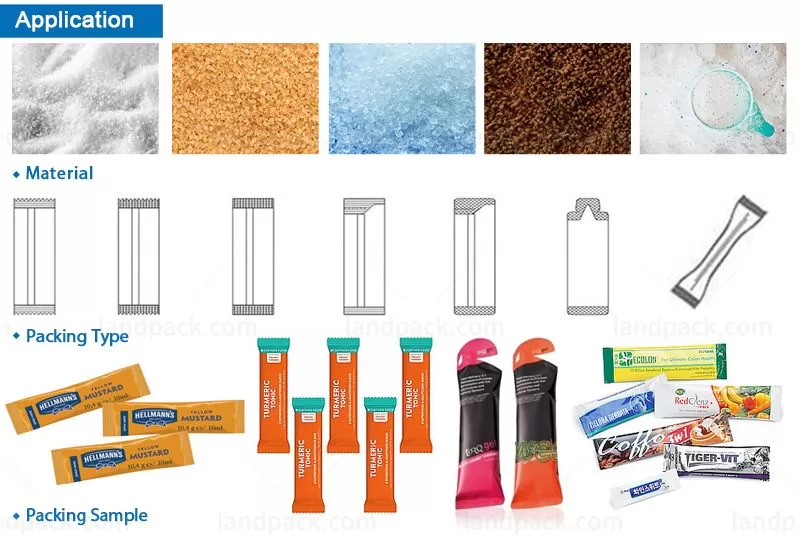

Application:
Suitable for many kinds of loose granule products, such as sugar, salt, small grains, seeds, spice, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

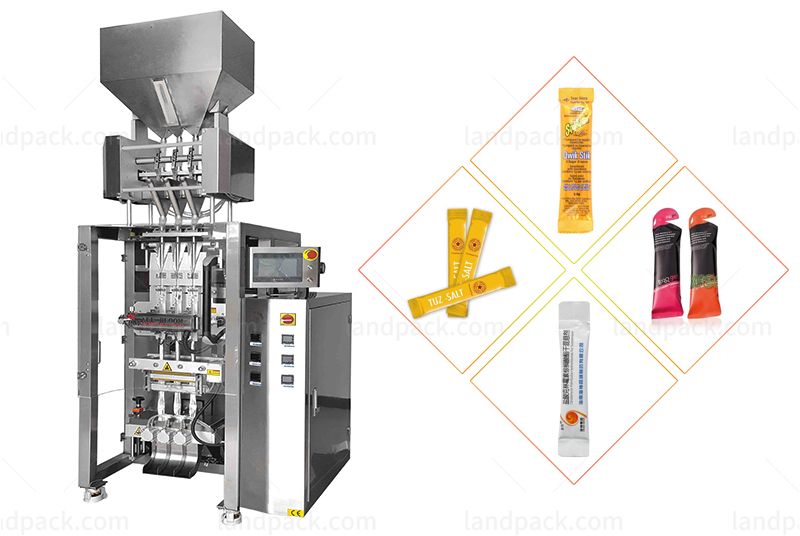

Multi lanes machine can produce multi lanes bags at same time.

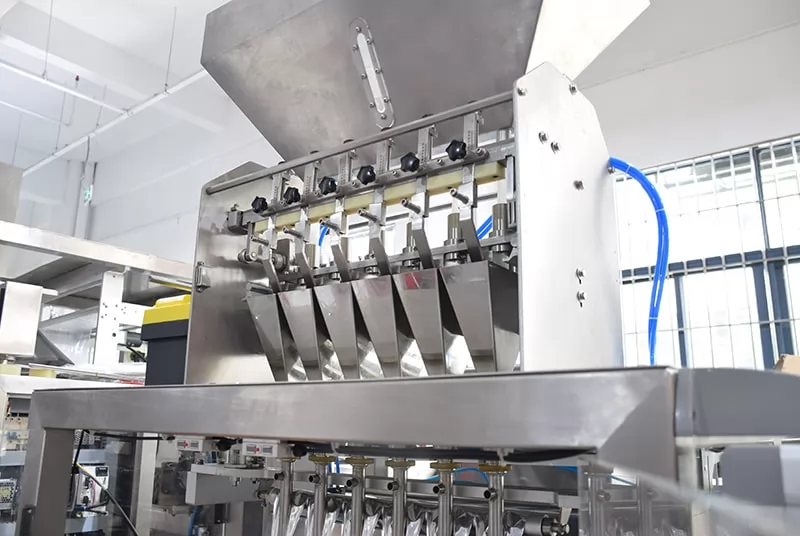

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

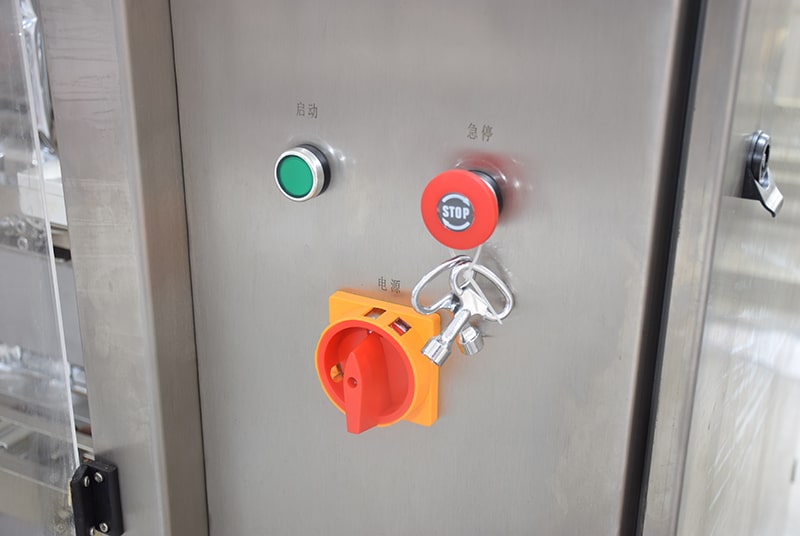

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

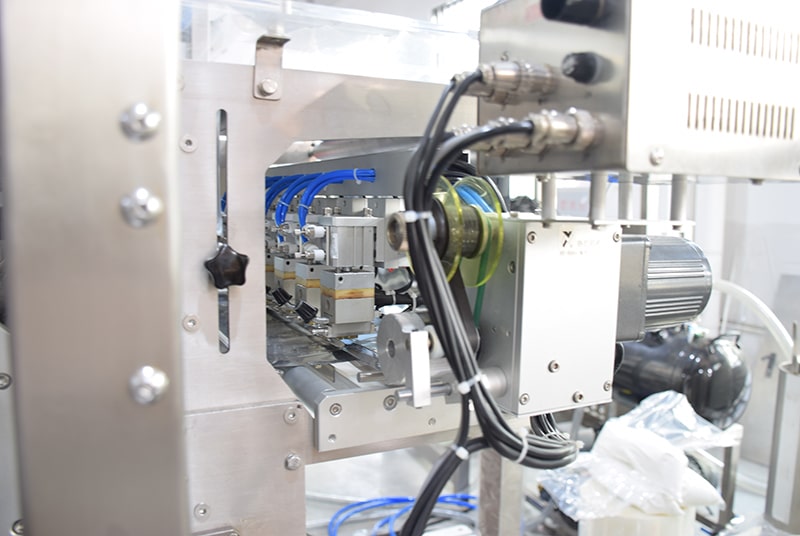

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
PLC controller, high function and control the whole machine’s work steps.
| Model | LD-280BF | LD-560BF |
| Lane number | 4-6 Line | 8-12 Line |
| Filling Method | 1.Volumetric cup; 2. Weigher | |
| Capacity | Max.35 cycle/ min | |
| Sachat Size | L:50-180mm; W:17-30mm | L:50-180mm; W:17-30mm |
| Film weidth & Thickness | Max.280mm, 0.07-0.10mm | Max.560mm, 0.07-0.10mm |
| Sealing type | Back sealing/Stick bag | Back sealing/Stick bag |
| Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Irregular | |
| Air & Powder | 0.8Mpa 0.8m3/min; 3.5kw | 0.8Mpa 0.8m3/min; 5.5kw |
| Dimension & weight | 1385*918*2005mm;350kg | 1685*1300*2005mm;550kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
