It's suitable for the automatic filling of various powder products, such as Milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.
Packaging Type: Cans, Tins, Barrel, Bottles, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood, and Others.
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

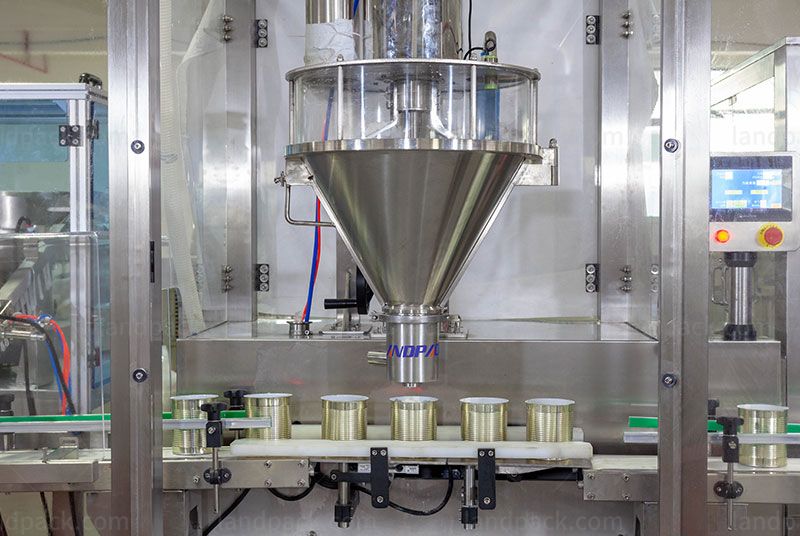

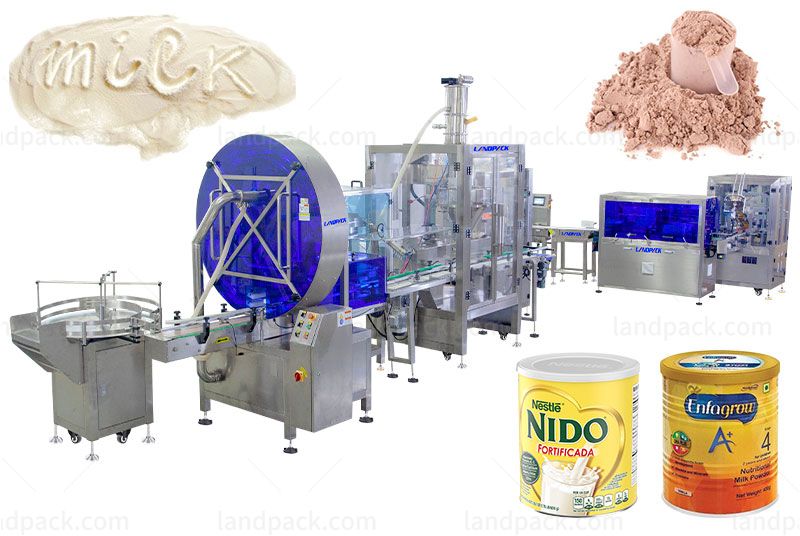

1. Automatic two-head Auger type metering/filling system works with the automatic capping machine.

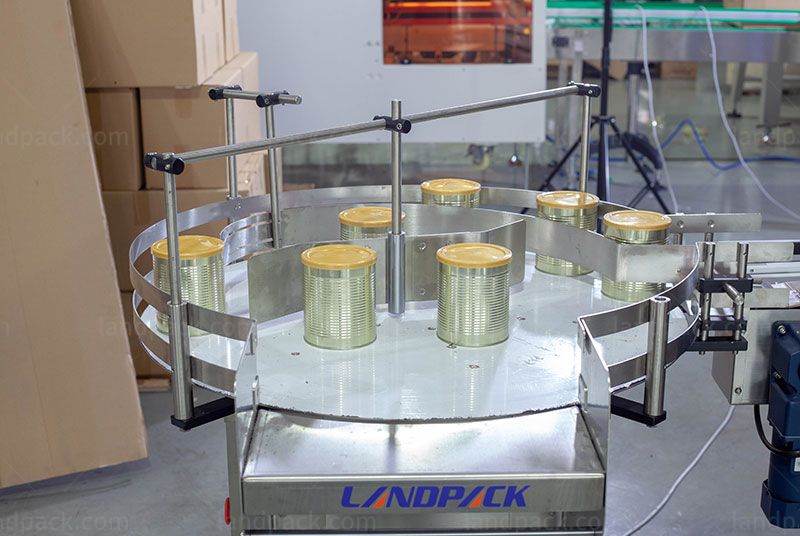

2. Able to work with the double star wheels for the bottle/can conveying & positioning system to perform the filling operation.
3. Conveyor mounted a precision splitter to perform the intermittent movement for the bottle/can to achieve the accurate positioning function.
4. Transmission system of the filling machine is driven by Japan Panasonic servo motor for high accuracy and stability.
5. Auto bottle/can positioning, lifting and vibrating, filling system is able to stop filling automatically when there's no bottle, and when a bottle jam occurs, the machine (system) will also stop automatically.
6. 10 sets of memory modules for memorizing different kinds of products and filling weights.

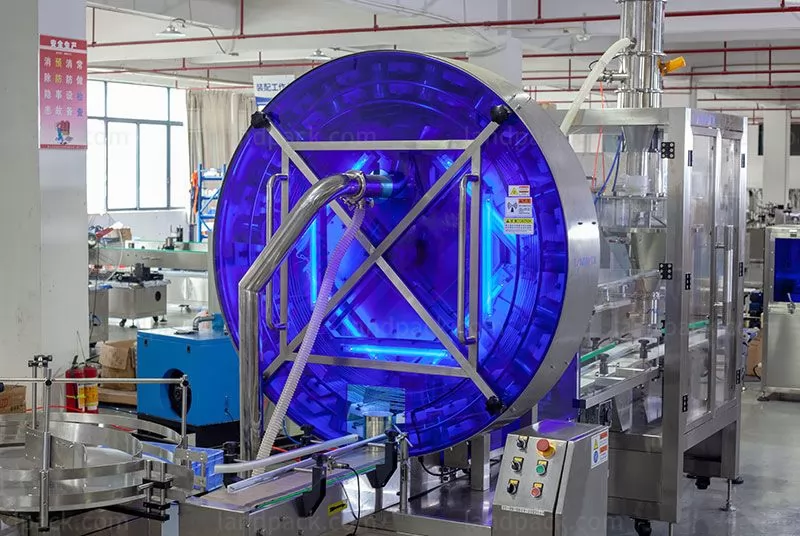

7. This line is especially suitable for canned milk powder, protein powder, nutrition powder and so on, equipped with UV sterilization and purging.
8. Drop the spoon automatically.
9. The filling machine adopts the weighing filling measurement, the precision is higher than the screw measurement.
10. Vacuum-sealed tank filled with nitrogen to extend the shelf life of products.
|Packaging materials||Milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc|
|Filling range||100-2000g (Customizable)|
|Filling accuracy||±1% (different materials vary)|
|Filling speed||15-25 Cans / min|
|Power supply||220V, 50HZ, 4.5KW|
