Low Cost Mini DoyPack Machine With Smart Linear

  • Application
  • Description
  • Parameter
  • Video

Application:

For various pre-made bags such as pillow bags, gusset bags, zipper bags etc. For lots of application such as coffee, frozen foods, cookies, cereals, nuts, flower, candy etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:vffs lines.jpg

Servo motor driven for reliable performance.

Auto adjust bag width size for easy operation.

Auto Operation Control.

Auto pouch detecting sensor, no pouch no dump ensure material splash down.

Automatic breakdown detection and solution is displayed on the screen clearly.

4 Head linear weight filler + vacuum conveyor.

Various option functions are available as per request.

Packing Line Name

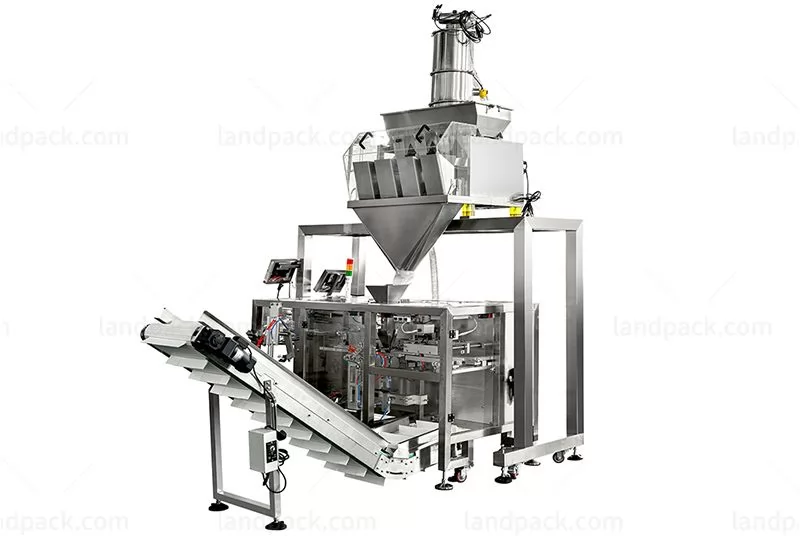

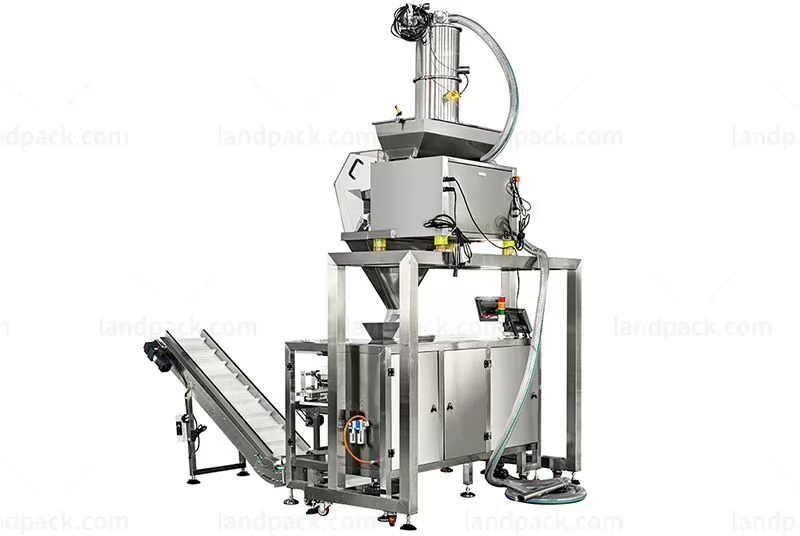

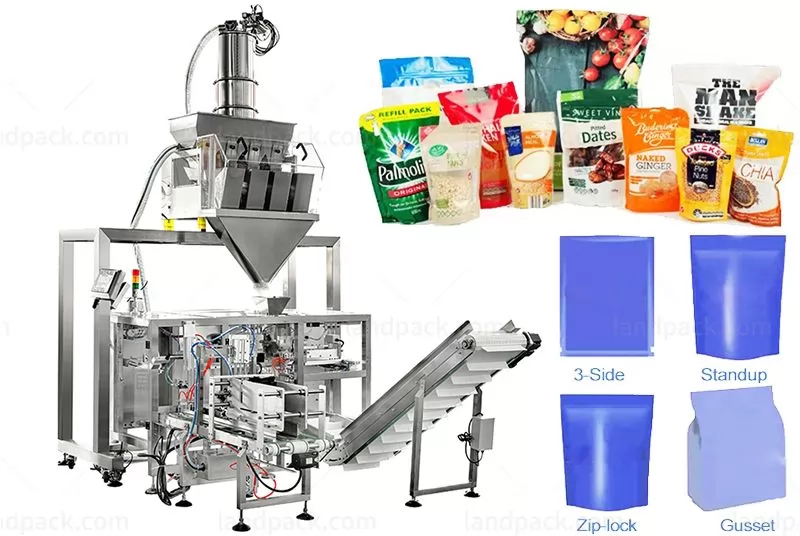

Smart 3L 4Head Weigher+ Horizontal 4 Sation Doypack Machine
Work Station
4 Premade pouch loading-opening-Fillig-Sealing for output
Bag Width
100-300mm
Bag Length
100 -350mm
Packing Speed
10~ 20Bags/min
Driving System
Servo Motor And Pneumatic
Control System
PLC
Building Materials
SUS304 Stainless Steel
Options
Auto Bag Feeder / Zipper Open Device/Printer/Gas Flush/Vacuum Device/Grip Seal/Dusty Suction Device
