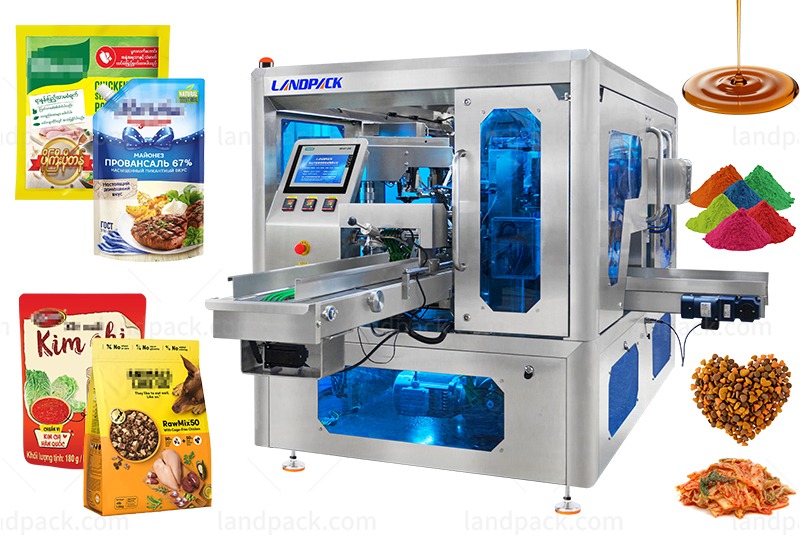

Hot Selling Rotary Premade Pouch Stand up Zipper Pouch Doypack Packing Machine

Application:
This rotary premade pouch packing machine is suitable for liquid, powder, and granule products. Such as sauce, juice, seasoning, milk powder, detergent, nuts, gummy, and similar products. It runs continuously at speeds up to 60 bags/min, supporting different type pouch sizes and shapes.

Package Type:
This rotary pouch packing machine supports different pouch sizes and materials, such as doypack, zipper pouch, stand-up pouch, flat bottom pouch, flat pouch, M shape pouch, etc.

Workflow:
1. Picking up and transferring pouches to the working position.
2. Printing date information on the pouch

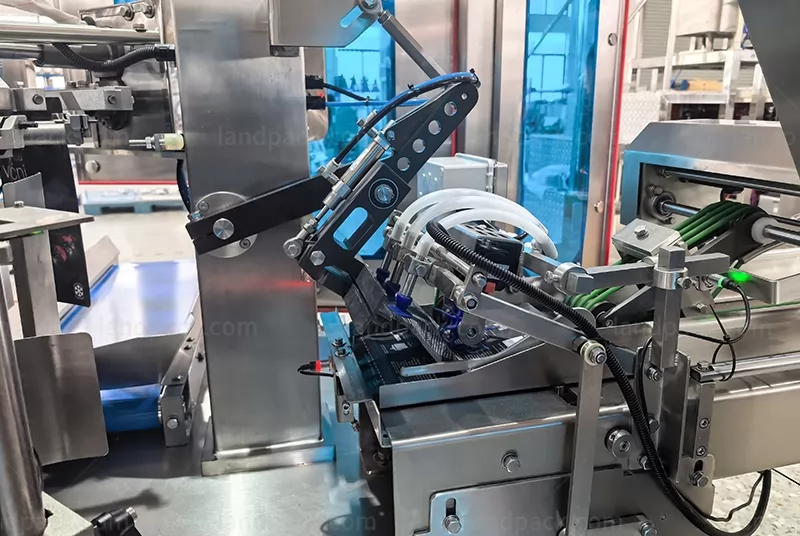

3. Servo control opens the pouch zipper accurately.
4. Air blowing fully opens the pouch to prepare for filling.
5. Automatic Filling Position with vibration function
6. Poking the material product into the right place
7. Cleaning the pouch opening before sealing.
8. Nitrogen flushing runs before sealing when required.
9. Heat sealing the pouch mouth
10. Output conveyor transfers finished pouches to the next process.

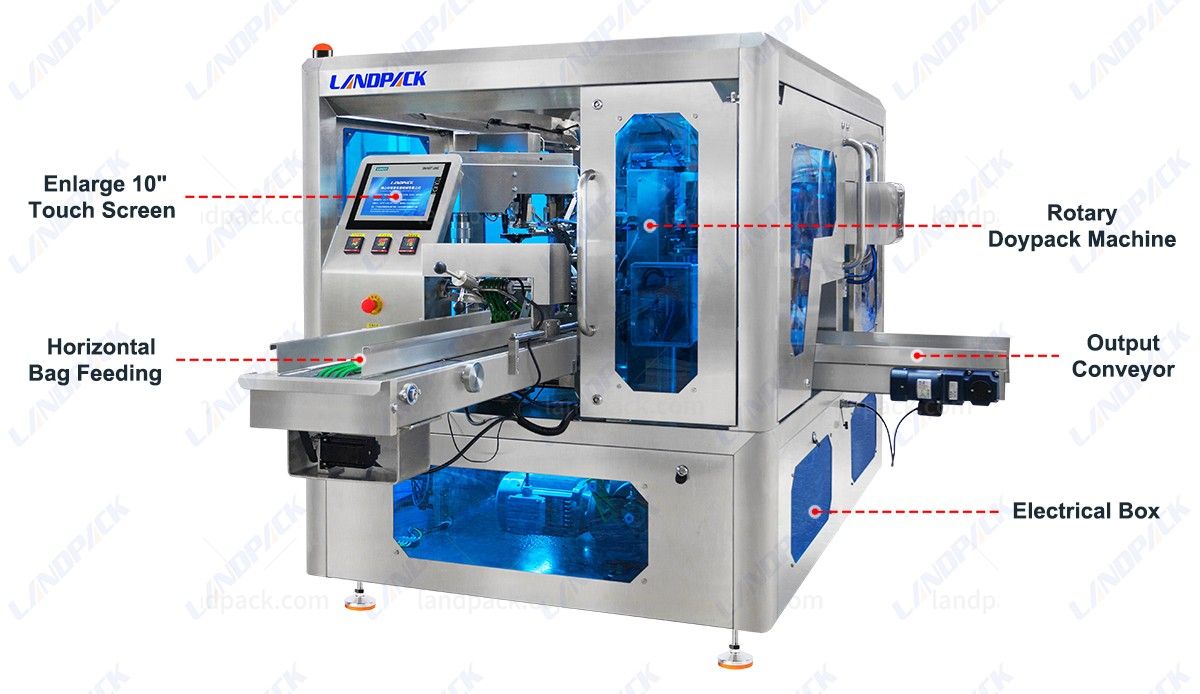

Machine Key Components:

Features:
1. Custom patented rotary design
2. SUS 304 frame with chamfered, brushed finish

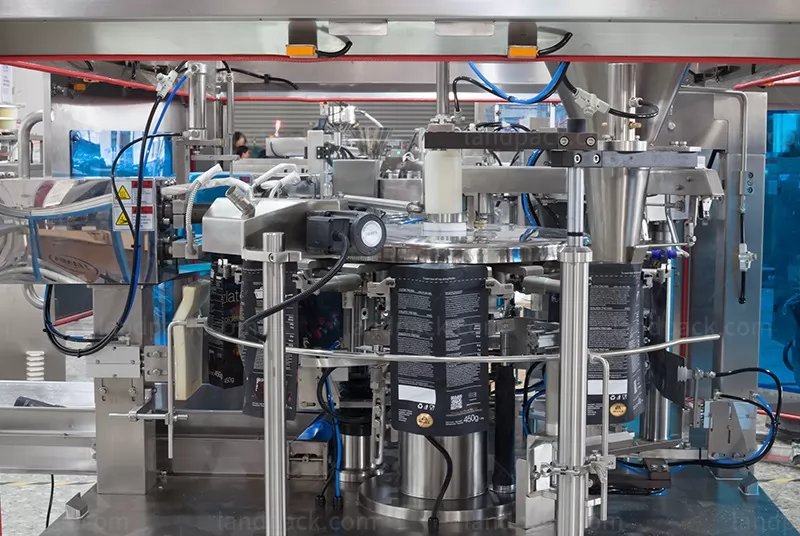

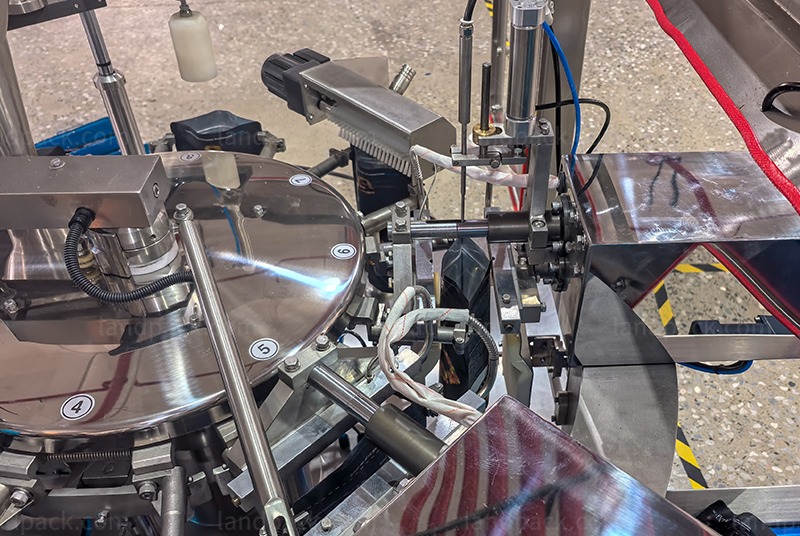

3. 8-station rotary system, one-touch bag width adjustment
4. Servo-driven zipper opening with adjustable angle
5. Poking device for full pouch filling
6. Pouch mouth cleaning before sealing
7. Nitrogen flushing option
8. Double sealing for stronger seal
9. Siemens PLC with touch screen control
10. 10-inch enlarged HMI display
11. Separated electrical and pneumatic layout
12. Built-in base lighting for maintenance
13. Safety doors with buzzer alarm
